EE-SX3173 Series

Catalog

OPTICAL SWITCHES, TRANSMISSIVE, PHOTOTRANSISTOR OUTPUT PHOTO IC 5MM SLOT 5V 1.4X0.5 DARK-ON

Part	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Sensing Distance	Sensing Distance	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Sensing Method	Current - Supply

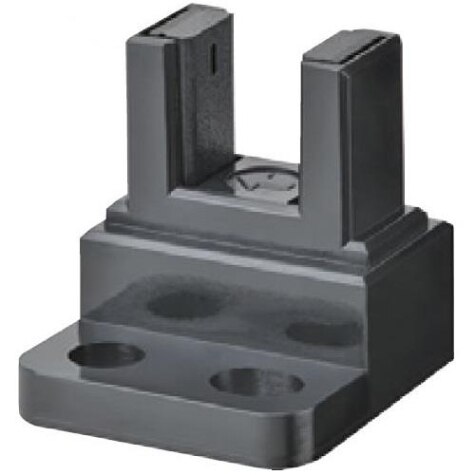

Omron Electronics Inc-EMC Div EE-SX3173-P2	Chassis Mount M3 Screw	5.5 V	4.5 V	Module Connector	5 mm	0.197 in	55 °C	-25 °C	NPN - Open Collector/Dark-ON	Through-Beam
Omron Electronics Inc-EMC Div EE-SX3173-P3-Z	Chassis Mount M3 Screw	26.4 V	21.6 VDC	Module Connector	5 mm	0.197 in	55 °C	-25 °C	NPN - Open Collector/Dark-ON	Through-Beam	15 mA
Omron Electronics Inc-EMC Div EE-SX4173-P3-Z	Chassis Mount M3 Screw	26.4 V	21.6 VDC	Module Connector	5 mm	0.197 in	55 °C	-25 °C	NPN - Open Collector/Light-ON	Through-Beam	15 mA
Omron Electronics Inc-EMC Div EE-SX4173-P2	Chassis Mount M3 Screw	5.5 V	4.5 V	Module Connector	5 mm	0.197 in	55 °C	-25 °C	NPN - Open Collector/Light-ON	Through-Beam
