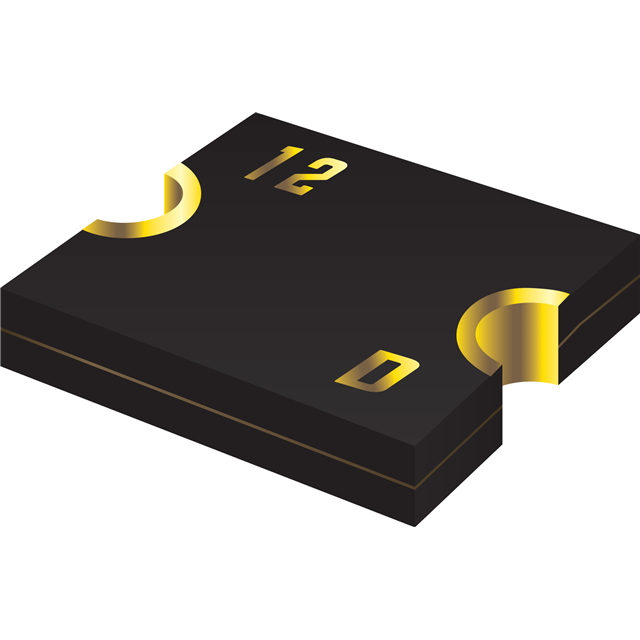

MF-MSHT Series
Manufacturer: Bourns Inc.
Beta
⌘K
PTC RESETTABLE FUSE, AEC-Q200, 16V, 1812 ROHS COMPLIANT: YES
| Part | Approval Agency | Current - Trip (It) | Current - Hold (Ih) (Max) [Max] | Resistance - Initial (Ri) (Min) [Min] | Package / Case | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Resistance - Post Trip (R1) (Max) [Max] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Thickness (Max) [Max] | Thickness (Max) [Max] | Current - Max [Max] | Time to Trip | Type | Grade | Qualification | Voltage - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | cUL TUV | 5.5 A | 1.1 A | 50 mOhms | 1812 (4532 Metric) Concave | Surface Mount | 125 °C | -40 C | 450 mOhms | 0.181 in | 4.6 mm | 3.24 mm | 0.128 " | 0.047 in | 1.2 mm | 40 A | 5 s | Polymeric | Automotive | AEC-Q200 | 16 V |
