MEAS FN3000 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

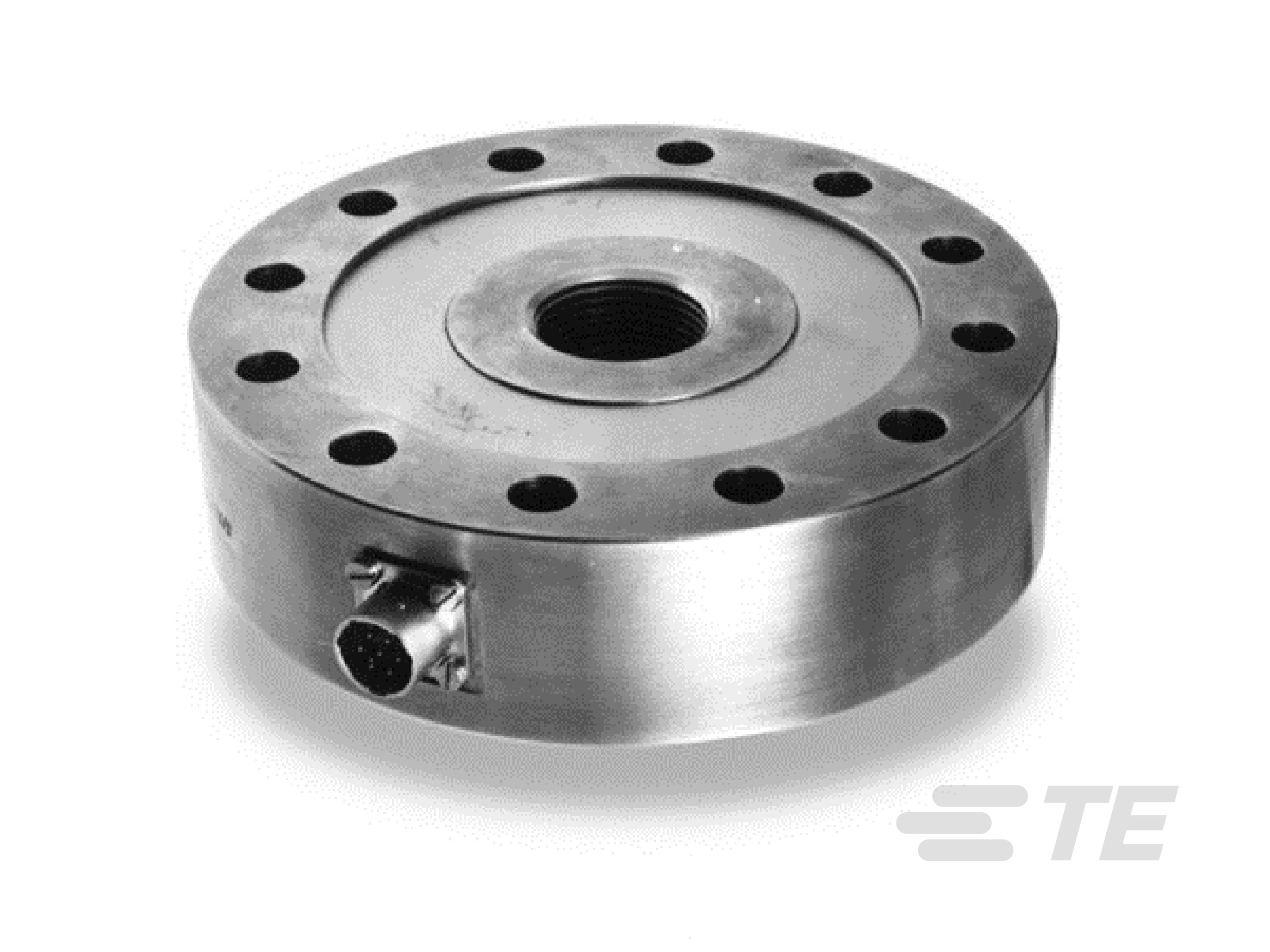

FN3000-200KN-/PE/L3M

Part	Operating Force	Operating Force	Compensated Temperature [Max]	Accuracy	Sensor Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Voltage - Supply	Includes	Output	Actuator Style/Size	Actuator Style/Size
TE Connectivity AMP Connectors 20020745-00	20394.32 kgf	44962 lbs	60 °C	0.1 %	Load Cell	80 °C	-20 ░C	Diaphragm	10 VDC	Sensor	Voltage	Round	65 mm
TE Connectivity AMP Connectors EFN30-200KN-C20008	20394.32 kgf	44962 lbs	60 °C	0.1 %	Load Cell	80 °C	-20 ░C	Diaphragm	10 VDC	Sensor	Voltage	Round	65 mm
TE Connectivity AMP Connectors EFN30-10KN-C20001	1019.72 kgf	2248 lbs	60 °C	0.1 %	Load Cell	80 °C	-20 ░C	Diaphragm	10 VDC	Sensor	Voltage	Round	34 mm
TE Connectivity AMP Connectors 20019544-00	5098.58 kgf	11240 lbs	60 °C	0.1 %	Load Cell	80 °C	-20 ░C	Diaphragm	10 VDC	Sensor	Voltage	Round	34 mm
TE Connectivity AMP Connectors EFN30-500KN-C20001	50985.81 kgf	112404 lbs	60 °C	0.1 %	Load Cell	80 °C	-20 ░C	Diaphragm	10 VDC	Sensor	Voltage	Round	87 mm
TE Connectivity AMP Connectors EFN30-50KN-C20028	5098.58 kgf	11240 lbs	60 °C	0.1 %	Load Cell	80 °C	-20 ░C	Diaphragm	10 VDC	Sensor	Voltage	Round	34 mm
TE Connectivity AMP Connectors EFN30-50KN-C20001	5098.58 kgf	11240 lbs	60 °C	0.1 %	Load Cell	80 °C	-20 ░C	Diaphragm	10 VDC	Sensor	Voltage	Round	34 mm
TE Connectivity AMP Connectors 20019196-00	10197.16 kgf	22481 lbs	60 °C	0.1 %	Load Cell	80 °C	-20 ░C	Diaphragm	10 VDC	Sensor	Voltage	Round	65 mm
TE Connectivity AMP Connectors EFN30-200KN-C20001	20394.32 kgf	44962 lbs	60 °C	0.1 %	Load Cell	80 °C	-20 ░C	Diaphragm	10 VDC	Sensor	Voltage	Round	65 mm
TE Connectivity AMP Connectors EFN30-200KN-C20016	20394.32 kgf	44962 lbs	60 °C	0.1 %	Load Cell	80 °C	-20 ░C	Diaphragm	10 VDC	Sensor	Voltage	Round	65 mm
