S505H Series

Cartridge Fuses 250Vac 1.6A Time Delay Axial

Manufacturer: Eaton - Electronics Division

Catalog

Cartridge Fuses 250Vac 1.6A Time Delay Axial

Catalog

Cartridge Fuses 250Vac 1.6A Time Delay Axial

Part	Response Time	Approval Agency	Mounting Type	Fuse Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Current Rating (Amps)	Package / Case [y]	Package / Case	Package / Case [x]	Breaking Capacity @ Rated Voltage	Voltage Rating - DC	Melting I²t	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]
Eaton - Electronics Division BK-S505H-V-1.6-R	Slow Blow	cULus PSE/JET	Through Hole	Cartridge Ceramic	85 °C	-40 C	600 V	1.6 A	20 mm	Axial	5 mm	1.5 kA	400 V	6.78	5.54 mm	0.831 in	21.1 mm	0.218 in

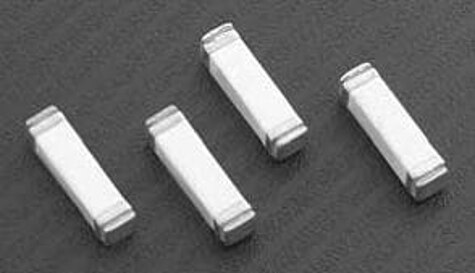

Eaton - Electronics Division BK1-S505H-10-R	Slow Blow	CQC cULus PSE/JET TUV	Requires Holder	Cartridge Ceramic	85 °C	-40 C	500 V	10 A	20 mm		5 mm	1.5 kA	400 V	349.5	5.2 mm	0.787 "	20 mm	0.205 in
Eaton - Electronics Division TR2-S505H-V-6.3-R	Slow Blow	cULus PSE/JET	Through Hole	Cartridge Ceramic	85 °C	-40 C	600 V	6.3 A	20 mm	Axial	5 mm	1.5 kA	400 V	111.4 I²t	5.54 mm	0.831 in	21.1 mm	0.218 in
Eaton - Electronics Division BK-S505H-V-3.15-R	Slow Blow	cULus PSE/JET	Through Hole	Cartridge Ceramic	85 °C	-40 C	600 V	3.15 A	20 mm	Axial	5 mm	1.5 kA	400 V	43.55	5.54 mm	0.831 in	21.1 mm	0.218 in
