S9025 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

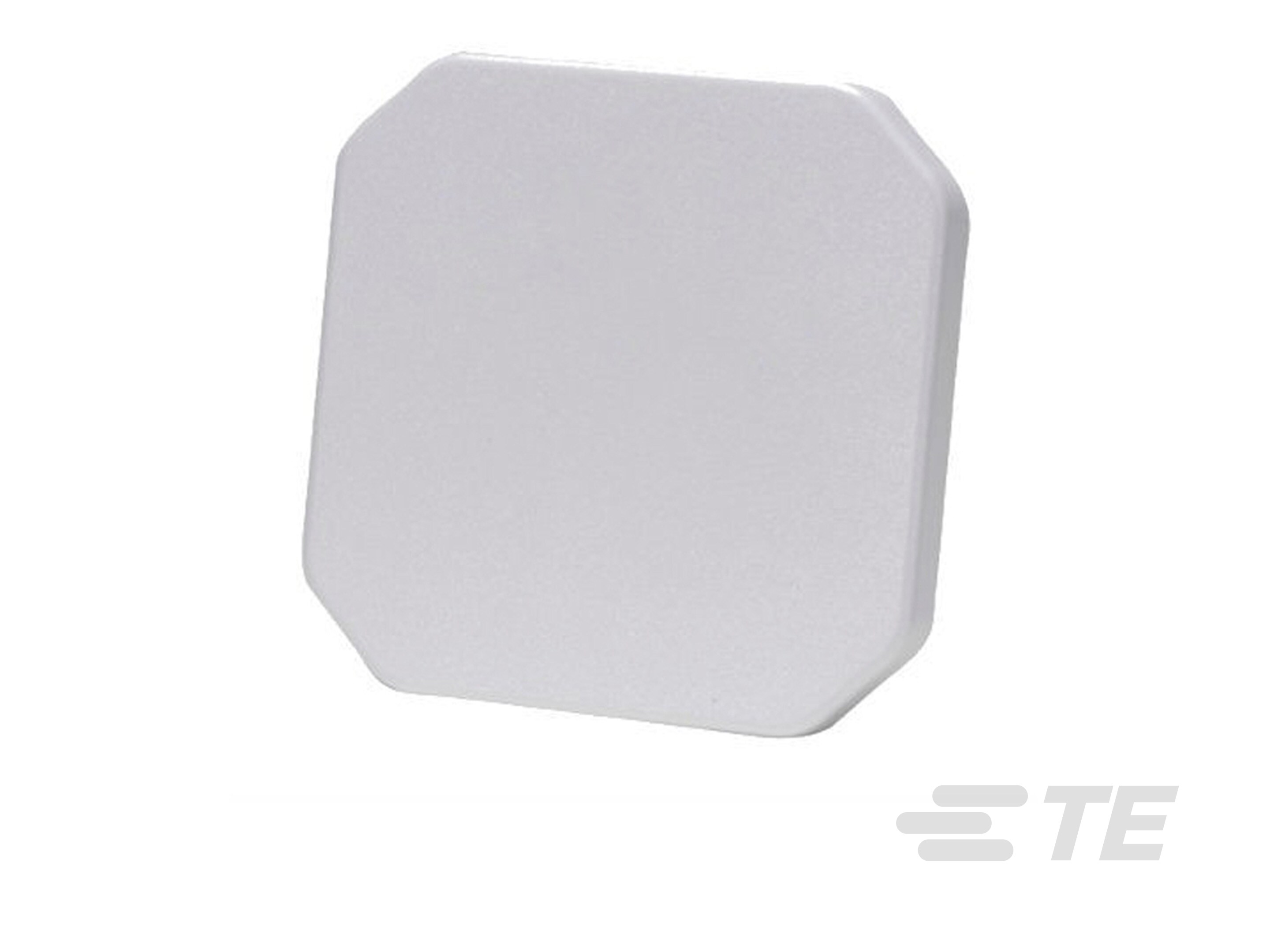

PANEL,LHCP,FIXED,RTNF 902-928MHZ,5DBIC,F

Part	Frequency [Min]	Frequency [Max]	Features [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Number of Bands	Frequency Group [Max]	Frequency Group	Frequency Group [Min]	Ingress Protection	VSWR	Termination	Antenna Type	Frequency (Center/Band)	Frequency Range [Min]	Frequency Range [Max]	Mounting Type	Height (Max)	Height (Max) [Max] [diameter]	Gain	Power - Max [Max]
TE Connectivity AMP Connectors S9025PLRTN

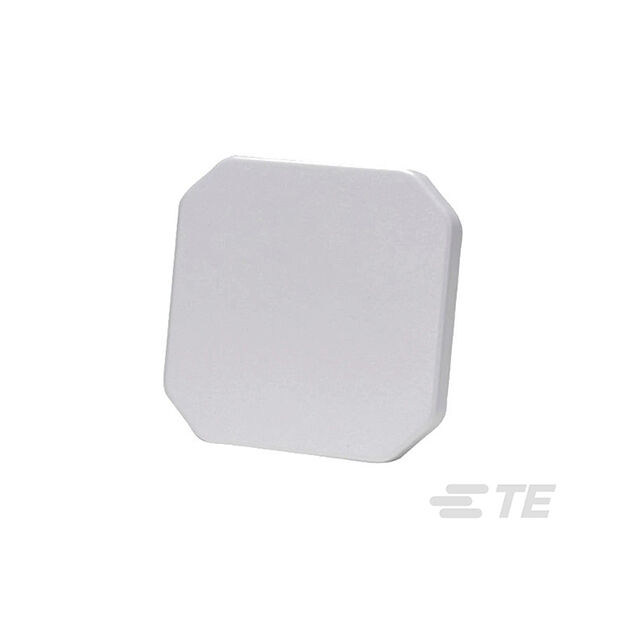

TE Connectivity AMP Connectors S9025PRRTN	902 MHz	928 MHz	5.5 dBi	5.2 "	5.2 in	18.03 mm
TE Connectivity AMP Connectors S9025PRSMF							General Purpose	1	1 GHz	UHF	300 MHz	IP67	1.5	N Female RP-SMA Female RP-TNC Female SMA Female	Panel	915 MHz	902 MHz	928 MHz	Surface Mount	18.03 mm	0.71 in	5.5 dBi
TE Connectivity AMP Connectors S9025PRNF							General Purpose	1	1 GHz	UHF	300 MHz	IP67	1.5	N Type Female	Panel	915 MHz	902 MHz	928 MHz	Chassis Mount	18.03 mm	0.71 in	5.5 dBi	10 W
TE Connectivity AMP Connectors S9025PRNF							General Purpose	1	1 GHz	UHF	300 MHz	IP67	1.5	N Type Female	Panel	915 MHz	902 MHz	928 MHz	Chassis Mount	18.03 mm	0.71 in	5.5 dBi	10 W
TE Connectivity AMP Connectors S9025PRRASMAF	902 MHz	928 MHz	5.5 dBi	5.2 "	5.2 in	18.03 mm
TE Connectivity AMP Connectors S9025PRRTN	902 MHz	928 MHz	5.5 dBi	5.2 "	5.2 in	18.03 mm
TE Connectivity AMP Connectors S9025PLRASMAF								1	1 GHz	UHF	300 MHz		1.5		Panel	915 MHz	902 MHz	928 MHz	Surface Mount	18.03 mm	0.71 in
TE Connectivity AMP Connectors S9025PRRASMAF	902 MHz	928 MHz	5.5 dBi	5.2 "	5.2 in	18.03 mm
TE Connectivity AMP Connectors S9025PLSMF							General Purpose	1	1 GHz	UHF	300 MHz	IP67	1.5	SMA Female	Panel	915 MHz	902 MHz	928 MHz	Chassis Mount	18.03 mm	0.71 in	5.5 dBi	10 W
