3010-40 Series

Manufacturer: CNC Tech

Catalog

CONN HEADER VERT 40POS 2.54MM

Part	Connector Type	Insulation Material	Number of Positions Loaded	Contact Type	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Shrouding	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post	Contact Finish Thickness - Mating	Voltage Rating	Insulation Height	Insulation Height	Contact Shape	Number of Rows [custom]	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Style	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Type	Contact Material	Termination	Material Flammability Rating	Insulation Height [z]	Cable Termination	Contact Finish Thickness	Contact Finish	Pitch	Pitch	Row Spacing	Row Spacing

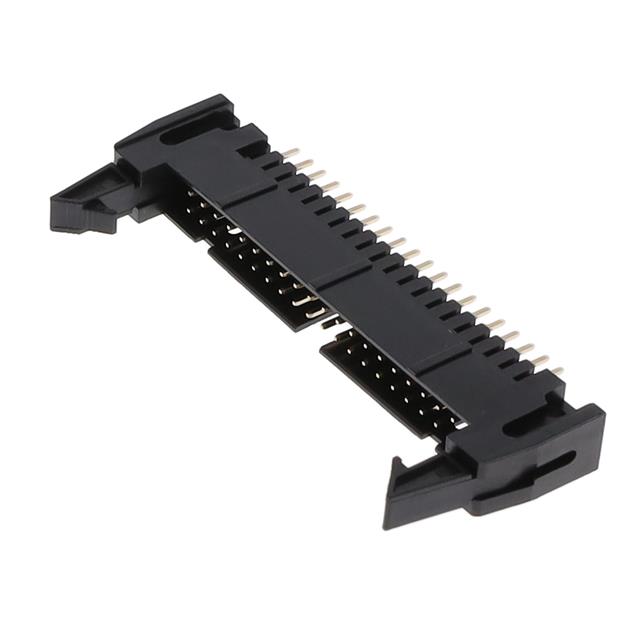

CNC Tech 3010-40-001-13-00	Header	Polybutylene Terephthalate (PBT)	All	Male Pin	0.1 "	2.54 mm	Gold	Shrouded - 4 Wall	3 A	0.134 "	3.4 mm	Flash	250 VAC	17 mm	0.669 in	Square	2	Latch Lock/Eject Hooks Long	0.1 in	2.54 mm	40	Board to Cable/Wire	-40 C	105 ░C	Keying Slot	Through Hole	Brass	Solder	UL94 V-0

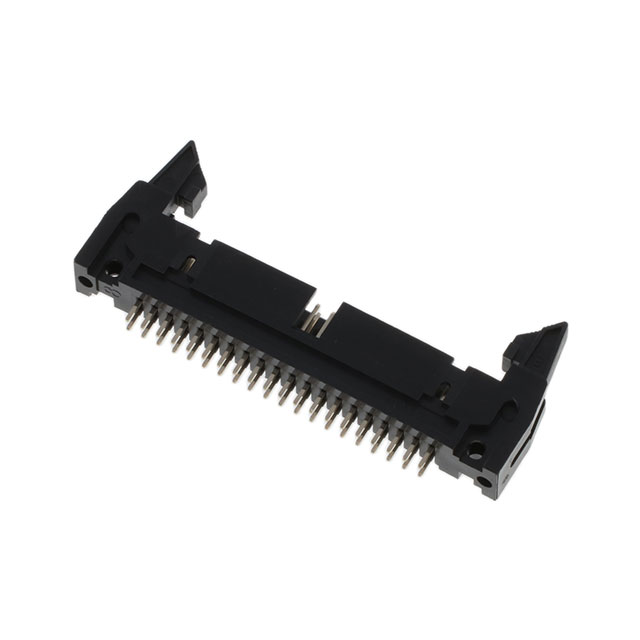

CNC Tech 3010-40-001-12-00	Header	Polybutylene Terephthalate (PBT)	All	Male Pin	0.1 "	2.54 mm	Gold	Shrouded - 4 Wall	3 A	0.134 "	3.4 mm	Flash	250 VAC	17 mm	0.669 in	Square	2	Latch Lock/Eject Hooks	0.1 in	2.54 mm	40	Board to Cable/Wire	-40 C	105 ░C	Keying Slot	Through Hole	Brass	Solder	UL94 V-0

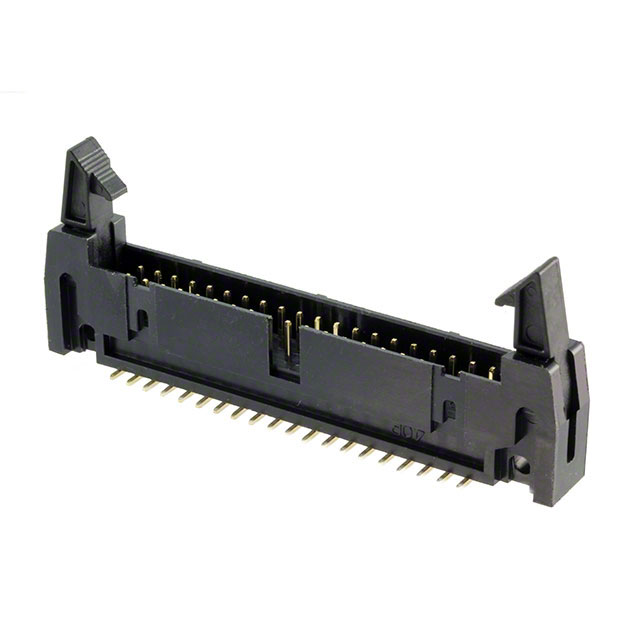

CNC Tech 3010-40-003-13-00	Header	Nylon 9T Polyamide (PA9T)	All	Male Pin	0.1 "	2.54 mm	Gold	Shrouded - 4 Wall	3 A			Flash	250 VAC	17 mm	0.669 in	Square	2	Latch Lock/Eject Hooks Long	0.1 in	2.54 mm	40	Board to Cable/Wire	-40 C	105 ░C	Keying Slot	Surface Mount	Brass	Solder	UL94 V-0

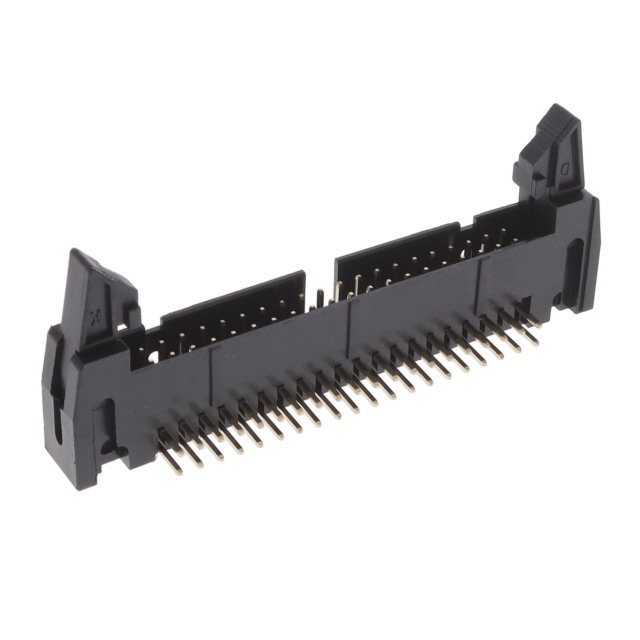

CNC Tech 3010-40-002-12-00	Header	Polybutylene Terephthalate (PBT)	All	Male Pin	0.1 "	2.54 mm	Gold	Shrouded - 4 Wall	3 A	0.134 "	3.4 mm	Flash	250 VAC	8.3 mm		Square	2	Latch Lock/Eject Hooks	0.1 in	2.54 mm	40	Board to Cable/Wire	-40 C	105 ░C	Keying Slot	Right Angle Through Hole	Brass	Solder	UL94 V-0	0.327 "
CNC Tech 3010-40-041-11-00	Header			Male Pin													2	Push-Pull			40				Polarizing Key	Free Hanging (In-Line)					IDC	Flash	Gold	0.1 "	2.54 mm	2.54 mm	0.1 "
