7352 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

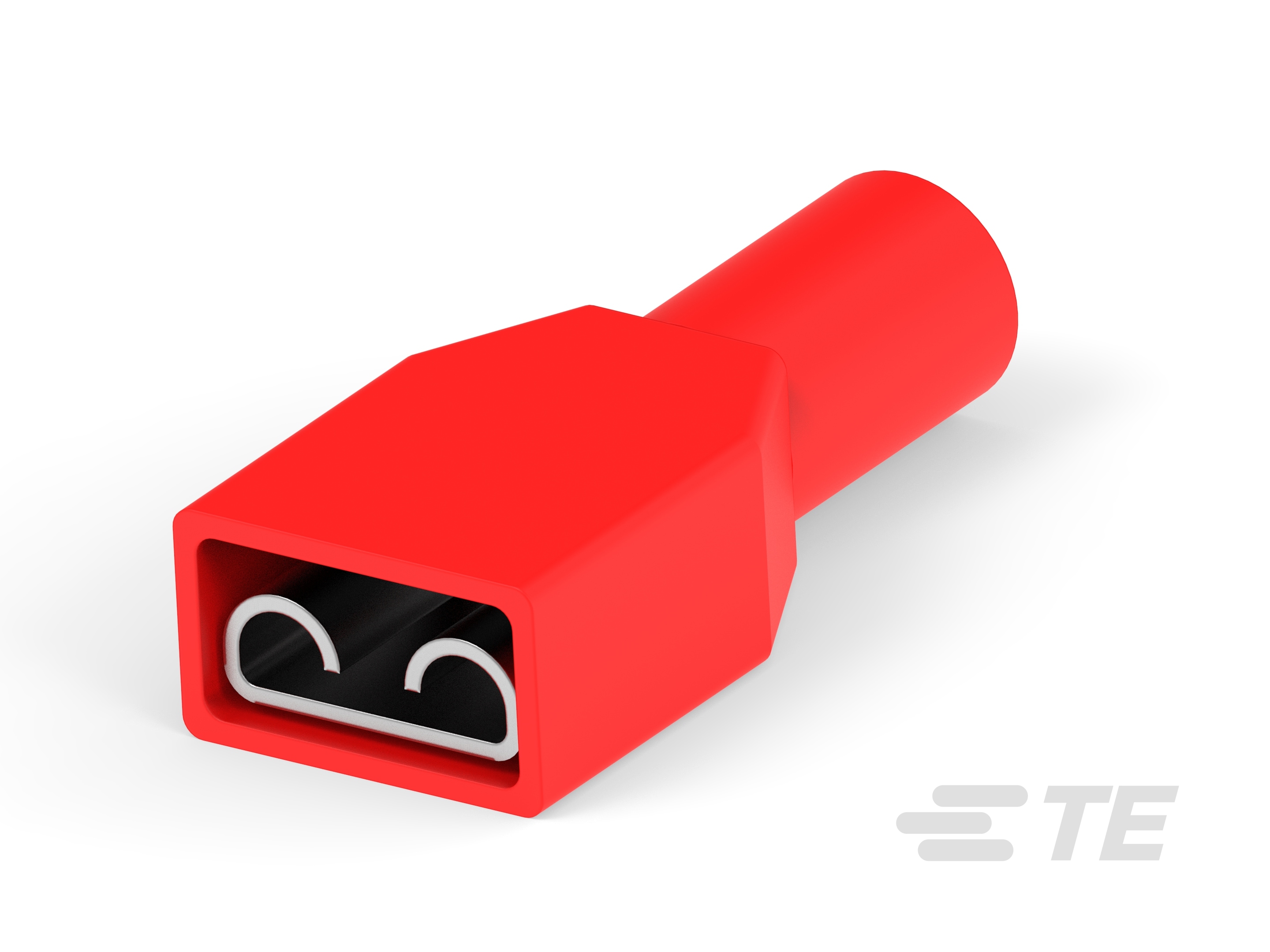

PIDG QUICK DISCONNECT TERMINAL 18-22AWG BRASS RED F 21.5MM TIN BAG
| Part | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Mounting Type | Insulation | Color | Tab Thickness | Tab Thickness | Termination | Length - Overall [x] | Length - Overall [x] | Contact Material | Tab Width [x] | Tab Width [x] | Contact Finish | Terminal Type | Wire Gauge [Min] | Wire Gauge [Max] | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.3 mm | 0.13 in | Free Hanging (In-Line) | Fully Insulated | Red | 0.81 mm | 0.032 in | Crimp | 0.846 " | 21.49 mm | Brass | 6.35 mm | 0.25 in | Tin | Standard | 17.5 AWG | 22 AWG | Female |
