1415539 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

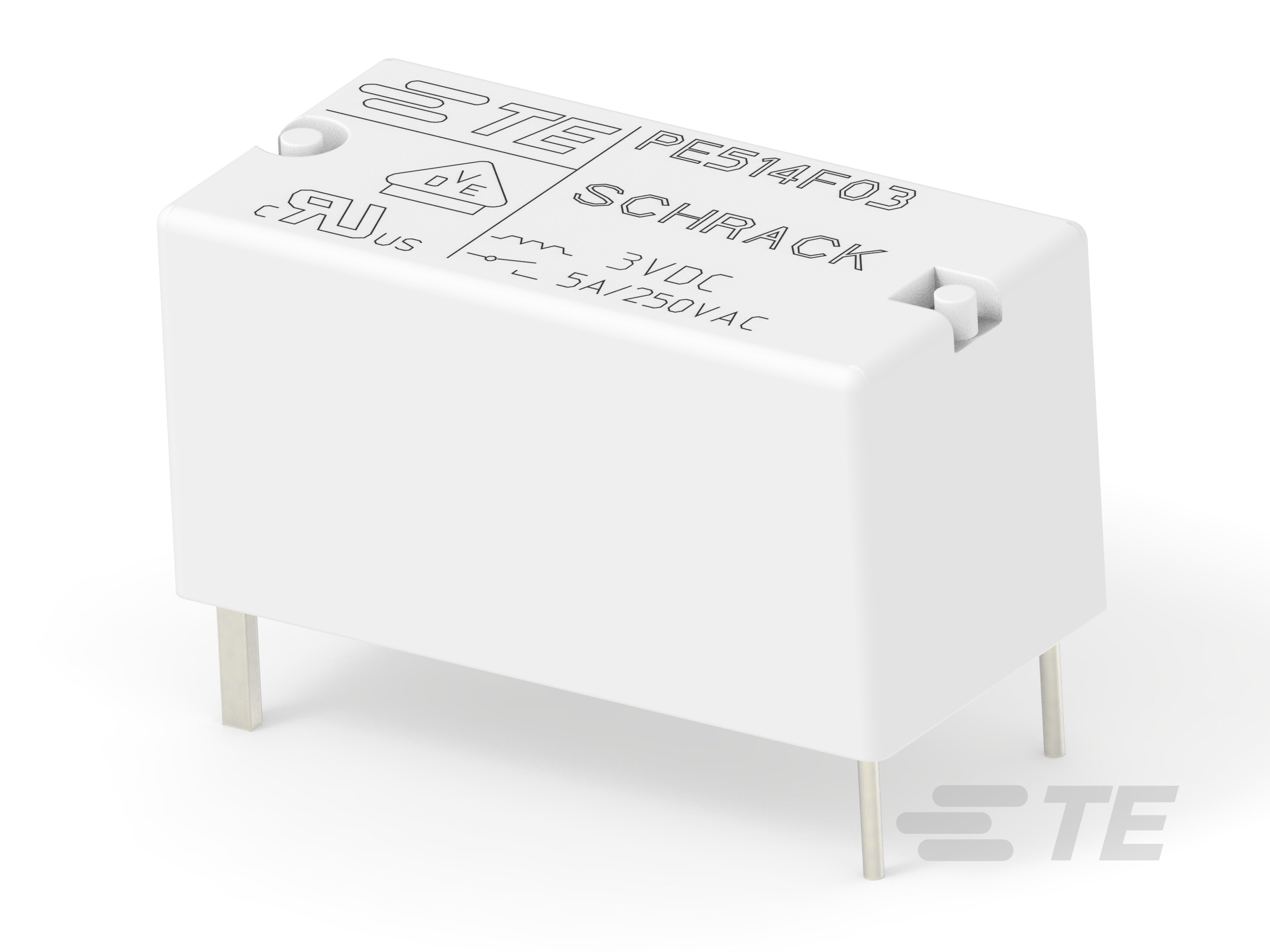

PE514F03
| Part | Coil Resistance | Contact Form | Coil Type | Relay Type | Mounting Type | Contact Rating (Current) | Seal Rating | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Contact Material | Release Time | Must Operate Voltage | Operate Time | Switching Voltage [Max] | Load - Max Switching [Max] | Termination Style | Approval Agency | Coil Insulation | Must Release Voltage | Coil Voltage | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 45 Ohms | SPDT (1 Form C) | Non Latching | General Purpose | Through Hole | 5 A | Sealed - Fully | 85 °C | -40 C | 66.7 mA | Silver Nickel (AgNi) | 8 ms | 2.25 VDC | 8 ms | 400 VAC | 2000 VA | PC Pin | cURus VDE | ||||

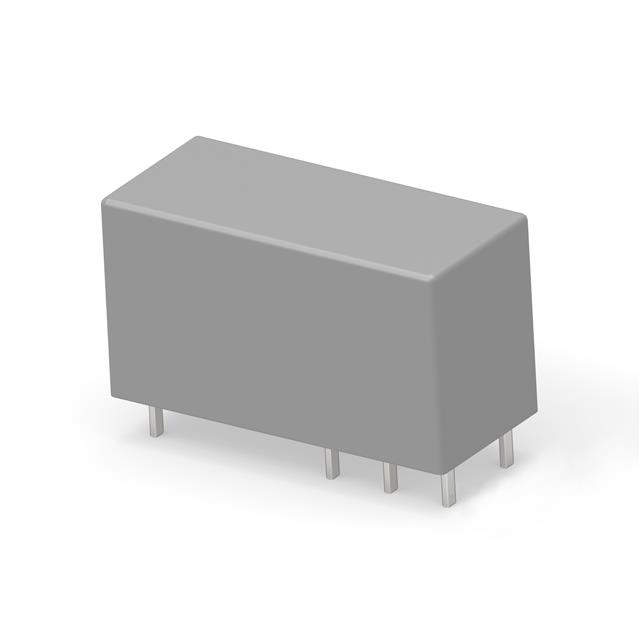

 TE Connectivity AMP Connectors | 360 Ohms | SPDT (1 Form C) | Non Latching | General Purpose | Through Hole | 16 A | Sealed - Flux Protection | 85 °C | -40 C | 33.3 mA | Silver Tin Oxide (AgSnO) | 6 ms | 8.4 VDC | 9 ms | 400 VAC | PC Pin | CQC CSA cURus VDE | Class F | 1.2 VDC | 12 VDC | 6400 VA |
