TMCM-1111 Series

Stepper motor controller/driver module 10 to 30V, 2.8A, 256 µSteps, S-Shaped and SixPoint ramp controller, with USB, S/D and RS485 Interface, StallGuard, CoolStep

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Stepper motor controller/driver module 10 to 30V, 2.8A, 256 µSteps, S-Shaped and SixPoint ramp controller, with USB, S/D and RS485 Interface, StallGuard, CoolStep

Part	Interface	Current - Output	Voltage - Load [Max]	Voltage - Load [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Control / Drive Type	Motor Type	Type	Mounting Type

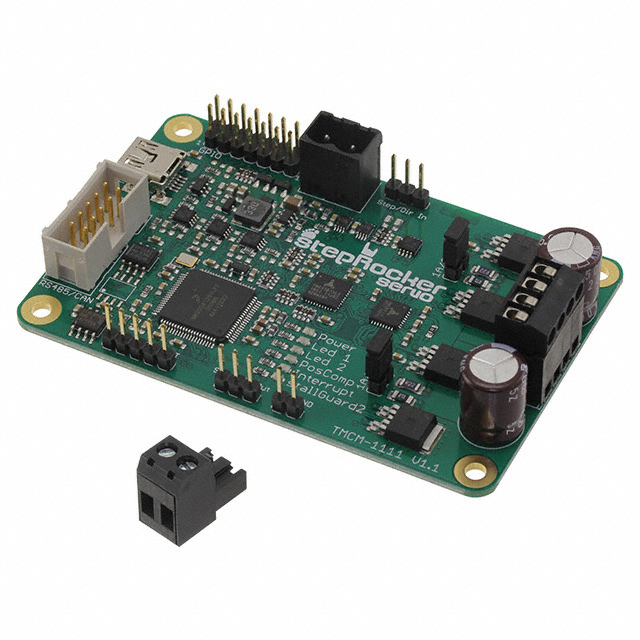

Analog Devices Inc./Maxim Integrated TMCM-1111 STEPROCKER	RS-485 Step / Direction USB	1 A 2.8 A	30 V	10 V	24 V	12 VDC	-25 °C	60 °C	Bipolar Stepper	Stepper	Board	Chassis Mount

Catalog

Stepper motor controller/driver module 10 to 30V, 2.8A, 256 µSteps, S-Shaped and SixPoint ramp controller, with USB, S/D and RS485 Interface, StallGuard, CoolStep

Description

The TMCM-1111 is a single axis stepper motor controller/driver module for closed loop stepper motor servos. The device is powered by ADI Trinamic StallGuard2™, CoolStep™and SpreadCycle™chopper technology and has a S-shaped ramp generator. The TMCM-1111 is capable of driving up to 2.8A of current from each output. It is designed for an operating voltage of 10 to 30V. The device provides a RS485, USB, S/D and encoder interface. An integrated protocol processor supplies a high level TMCL communication.All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.More about the TMCL-IDEAPPLICATIONSApplicationsLaboratory AutomationManufacturingRoboticsFactory AutomationTest & MeasurementTechnology evaluationFirst experiences with stepper motorsHobby applications
