OSTVI02 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

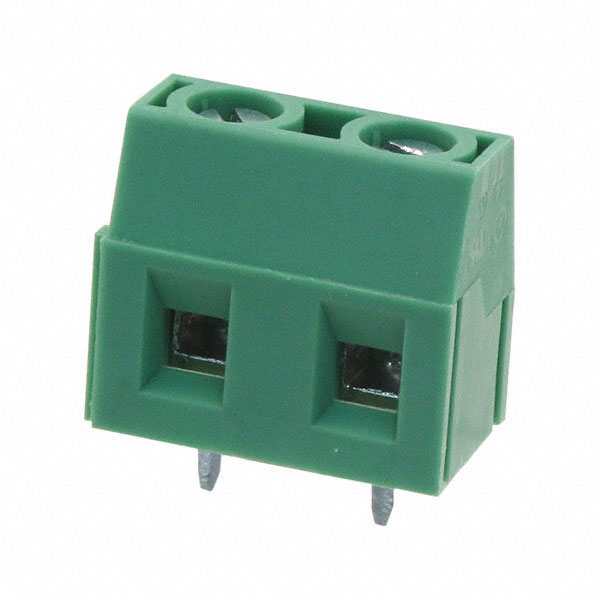

TERM BLK 2POS SIDE ENT 7.5MM PCB
| Part | Screw Material - Plating | Housing Material | Clamp Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Torque - Screw | Torque - Screw | Contact Material - Plating | Screw Thread | Mounting Type | Current | Voltage | Number of Levels | Color | Mating Orientation | Pitch | Pitch | Wire Gauge [Min] | Wire Gauge [Max] | Positions Per Level | Features | Wire Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | Steel - Zinc Plated | Thermoplastic | Brass | -30 ░C | 105 ░C | 3.5 Lb-In | 0.4 Nm | Brass - Tin Plated | M3 | Through Hole | 16 A | 300 VDC | 1 | Green | Horizontal with Board | 0.295 in | 7.5 mm | 12 AWG | 28 AWG | 2 | Interlocking (Side) | Screw - Rising Cage Clamp |
On Shore Technology Inc. | Steel - Zinc Plated | Thermoplastic | Brass | -30 ░C | 105 ░C | 3.5 Lb-In | 0.4 Nm | Brass | M3 | Through Hole | 16 A | 300 VDC | 1 | Green | Vertical with Board | 0.295 in | 7.5 mm | 12 AWG | 28 AWG | 2 | Interlocking (Side) | Screw - Rising Cage Clamp |
On Shore Technology Inc. | Steel - Zinc Plated | Thermoplastic | Brass | -30 ░C | 105 ░C | 3.5 Lb-In | 0.4 Nm | Brass - Tin Plated | M3 | Through Hole | 16 A | 300 VDC | 1 | Green | Horizontal with Board | 0.2 in | 5.08 mm | 12 AWG | 28 AWG | 2 | Interlocking (Side) | Screw - Rising Cage Clamp |
On Shore Technology Inc. | Steel - Zinc Plated | Thermoplastic | Brass | -30 ░C | 105 ░C | 3.5 Lb-In | 0.4 Nm | Brass - Tin Plated | M3 | Through Hole | 16 A | 300 VDC | 1 | Green | Horizontal with Board | 0.197 in | 5 mm | 12 AWG | 28 AWG | 2 | Interlocking (Side) | Screw - Rising Cage Clamp |
 On Shore Technology Inc. | Steel - Zinc Plated | Thermoplastic | Brass | -30 ░C | 105 ░C | 3.5 Lb-In | 0.4 Nm | Brass | M3 | Through Hole | 16 A | 300 VDC | 1 | Green | Horizontal with Board | 0.295 in | 7.5 mm | 12 AWG | 28 AWG | 2 | Interlocking (Side) | Screw - Rising Cage Clamp |
On Shore Technology Inc. | Steel - Zinc Plated | Thermoplastic | Brass | -30 ░C | 105 ░C | 3.5 Lb-In | 0.4 Nm | Brass | M3 | Through Hole | 16 A | 300 VDC | 1 | Green | Vertical with Board | 0.2 in | 5.08 mm | 12 AWG | 28 AWG | 2 | Interlocking (Side) | Screw - Rising Cage Clamp |
On Shore Technology Inc. | Steel - Zinc Plated | Thermoplastic | Brass | -30 ░C | 105 ░C | 3.5 Lb-In | 0.4 Nm | Brass | M3 | Through Hole | 16 A | 300 VDC | 1 | Green | Vertical with Board | 0.197 in | 5 mm | 12 AWG | 28 AWG | 2 | Interlocking (Side) | Screw - Rising Cage Clamp |
