MPQ2178 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K
SWITCHING VOLTAGE REGULATORS 5.5V, 2A, 2.4MHZ, SYNCHRONOUS STEP-DOWN CONVERTER WITH POWER GOODAND SOFT START, AEC-Q100 QUALIFIED
| Part | Grade | Frequency - Switching | Package / Case | Synchronous Rectifier | Mounting Type | Output Type | Voltage - Input (Min) [Min] | Supplier Device Package [x] | Supplier Device Package [y] | Supplier Device Package | Topology | Voltage - Input (Max) [Max] | Voltage - Output (Max) [Max] | Number of Outputs | Qualification | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output (Min/Fixed) | Current - Output | Function | Output Configuration | Outputs and Type | Outputs and Type | Board Type | Supplied Contents | Contents | Main Purpose | Utilized IC / Part | Voltage - Output | Regulator Topology | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | Automotive | 2.4 MHz | 8-VFDFN | Surface Mount | Adjustable | 2.5 V | 2 | 1.5 | 8-QFN (2x1.5) | Buck | 5.5 V | 5 V | 1 | AEC-Q100 | -40 °C | 150 °C | 0.6 V | 2 A | Step-Down | Positive | ||||||||||||
 Monolithic Power Systems Inc. | Automotive | 2.4 MHz | 8-VFDFN | Surface Mount | 2.5 V | 2 | 1.5 | 8-QFN (2x1.5) | Buck | 5.5 V | 1 | AEC-Q100 | -40 °C | 150 °C | 1.8 V | 2 A | Step-Down | Positive | ||||||||||||||

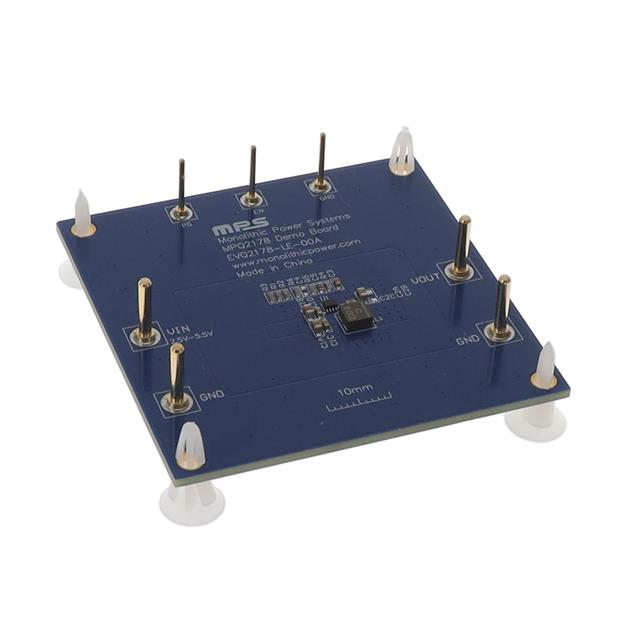

 Monolithic Power Systems Inc. | 2.4 MHz | 2 A | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Board(s) | Board(s) | DC/DC Step Down | MPQ2178-AEC1 | 1.2 V | Buck | 5.5 V | 2.5 V | |||||||||||||||||||
Monolithic Power Systems Inc. | Automotive | 2.4 MHz | 8-VFDFN | Surface Mount | 2.5 V | 2 | 1.5 | 8-QFN (2x1.5) | Buck | 5.5 V | 1 | AEC-Q100 | -40 °C | 150 °C | 1.8 V | 2 A | Step-Down | Positive | ||||||||||||||
 Monolithic Power Systems Inc. | Automotive | 2.4 MHz | 8-VFDFN | Surface Mount Wettable Flank | Adjustable | 2.5 V | 2 | 1.5 | 8-QFN (2x1.5) | Buck | 5.5 V | 5 V | 1 | AEC-Q100 | -40 °C | 150 °C | 0.6 V | 2 A | Step-Down | Positive | ||||||||||||

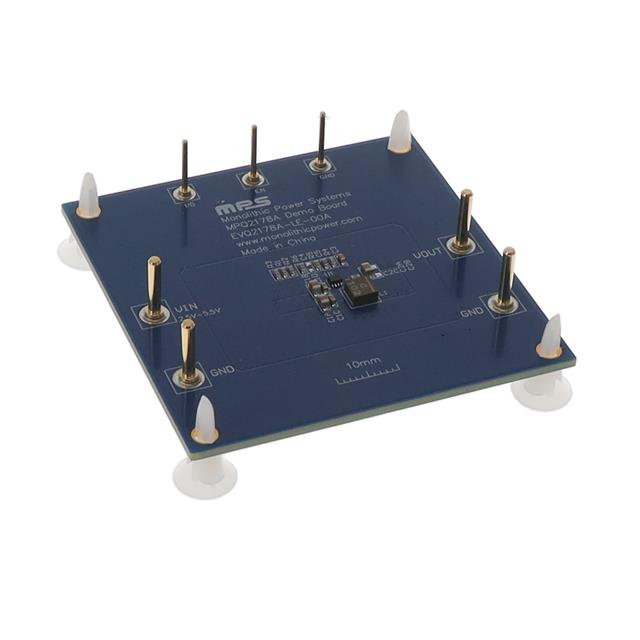

 Monolithic Power Systems Inc. | 2.4 MHz | 2 A | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Board(s) | Board(s) | DC/DC Step Down | MPQ2178A-AEC1 | 1.2 V | Buck | 5.5 V | 2.5 V | |||||||||||||||||||
 Monolithic Power Systems Inc. | 2.4 MHz | 8-VFDFN | Surface Mount Wettable Flank | Adjustable | 2.5 V | 2 | 1.5 | 8-QFN (2x1.5) | Buck | 5.5 V | 5 V | 1 | -40 °C | 150 °C | 0.6 V | 2 A | Step-Down | Positive |
