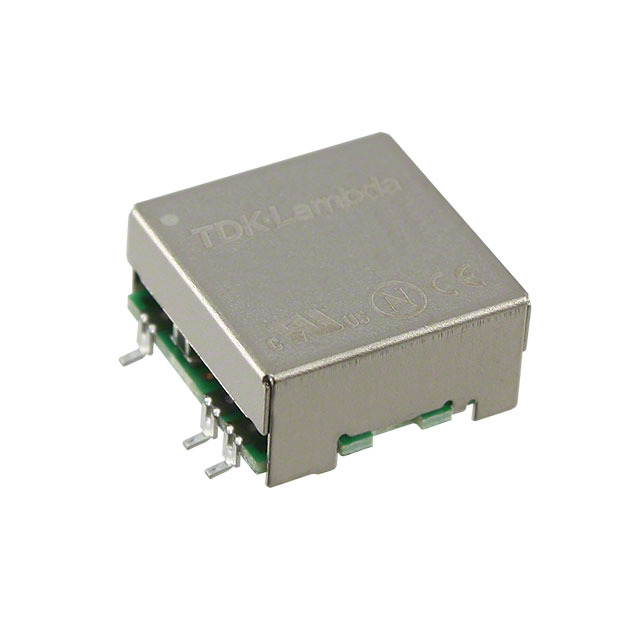

CC1R5 Series

Catalog

DC DC CONVERTER 3.3V 1W

Part	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Isolation	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Input (Min) [Min]	Voltage - Output 1	Package / Case	Number of Outputs	Mounting Type	Control Features	Type	Current - Output (Max) [Max]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Output 2 [Max]	Voltage - Output 2 [Min]	Current - Output (Max)
TDK Corporation CC1R5-1203SR-E	0.35 in	8.8 mm	0.65 in	16.5 mm	16.6 mm	0.65 "	500 V	18 V	85 °C	-40 C	ITE (Commercial)	9 V	3.3 V	7-SMD Module	1	Surface Mount	Active Low Enable	Isolated Module	400 mA
TDK Corporation CC1R5-4803SR-E	0.35 in	8.8 mm	0.65 in	16.5 mm	16.6 mm	0.65 "	500 V	76 V	85 °C	-40 C	ITE (Commercial)	36 V	3.3 V	7-SMD Module	1	Surface Mount	Active Low Enable	Isolated Module	400 mA
TDK Corporation CC1R5-0503SF-E	0.34 in	8.5 mm	0.65 in	16.5 mm	16.6 mm	0.65 "	500 V	9 V	85 °C	-40 C	ITE (Commercial)	4.5 V	3.3 V	7-DIP Module	1	Through Hole	Active Low Enable	Isolated Module	400 mA
TDK Corporation CC1R5-0512SF-E	0.34 in	8.5 mm	0.65 in	16.5 mm	16.6 mm	0.65 "	500 V	9 V	85 °C	-40 C	ITE (Commercial)	4.5 V		7-DIP Module	1	Through Hole	Active Low Enable	Isolated Module	125 mA	15 V	12 V
TDK Corporation CC1R5-2412DR-E	0.35 in	8.8 mm	0.65 in	16.5 mm	16.6 mm	0.65 "	500 V	36 V	85 °C	-40 C	ITE (Commercial)	18 V		7-SMD Module	2	Surface Mount	Active Low Enable	Isolated Module		15 V	12 V	-15 V	-12 V	60 mA
TDK Corporation CC1R5-0512DF-E	0.34 in	8.5 mm	0.65 in	16.5 mm	16.6 mm	0.65 "	500 V	9 V	85 °C	-40 C	ITE (Commercial)	4.5 V		7-DIP Module	2	Through Hole	Active Low Enable	Isolated Module		15 V	12 V	-15 V	-12 V	60 mA
TDK Corporation CC1R5-1205SR-E	0.35 in	8.8 mm	0.65 in	16.5 mm	16.6 mm	0.65 "	500 V	18 V	85 °C	-40 C	ITE (Commercial)	9 V	5 V	7-SMD Module	1	Surface Mount	Active Low Enable	Isolated Module	0.3 A
TDK Corporation CC1R5-0503SR-E	0.35 in	8.8 mm	0.65 in	16.5 mm	16.6 mm	0.65 "	500 V	9 V	85 °C	-40 C	ITE (Commercial)	4.5 V	3.3 V	7-SMD Module	1	Surface Mount	Active Low Enable	Isolated Module	400 mA
TDK Corporation CC1R5-1205SF-E	0.34 in	8.5 mm	0.65 in	16.5 mm	16.6 mm	0.65 "	500 V	18 V	85 °C	-40 C	ITE (Commercial)	9 V	5 V	7-DIP Module	1	Through Hole	Active Low Enable	Isolated Module	0.3 A
TDK Corporation CC1R5-1212DR-E	0.35 in	8.8 mm	0.65 in	16.5 mm	16.6 mm	0.65 "	500 V	18 V	85 °C	-40 C	ITE (Commercial)	9 V		7-SMD Module	2	Surface Mount	Active Low Enable	Isolated Module		15 V	12 V	-15 V	-12 V	60 mA
