S10 Series

Catalog

DC POWER CONNECTOR, PLUG, 11 A, 18.19 MM, CABLE MOUNT, CRIMP / SOLDER

Part	Includes	Body Color	Contact Material - Plating	Housing Material	Contact Material	Body Material	Ingress Protection	Current Rating (Amps)	Termination	Features	Mounting Type	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Color	Shielding	Industry Recognized Mating Diameter [diameter]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Gender	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Thickness	Thickness	Type	Plating	Thread/Screw/Hole Size [diameter]	Thickness	Material	Length - Below Head	Length - Below Head	Length - Below Head	Thickness - Overall	Thickness - Overall	Diameter - Shoulder [diameter]	Diameter - Shoulder [diameter]	Diameter - Shoulder [diameter]

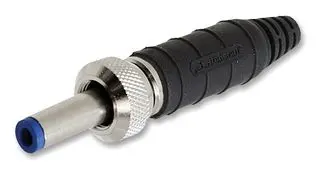

SWITCHCRAFT/CONXALL S10KS15	1 Connector 1 Handle 1 Insulator Tube	Black Silver	Silver	Elastomer	Copper Alloy	Copper Alloy	IP68	11 A	Solder	Cable Clamp Strain Relief Thread Lock	Free Hanging (In-Line)	24 VDC	-40 C	105 ░C	Plug	Blue	Unshielded	2 mm 5.5 mm	2	3	Female

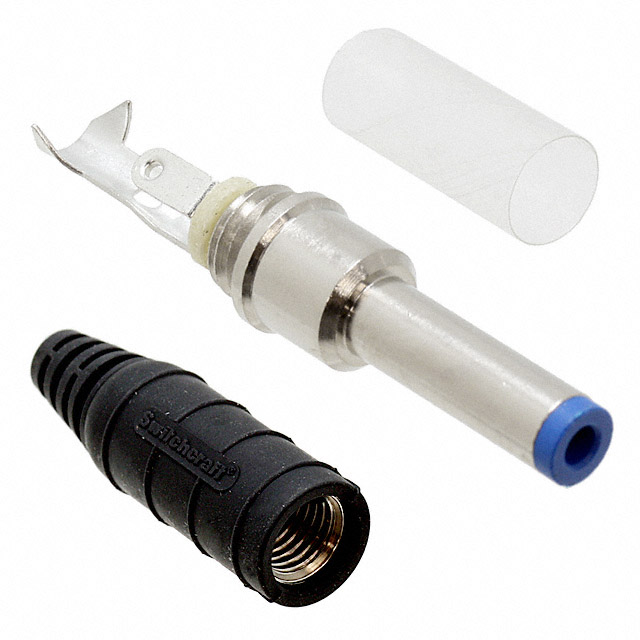

SWITCHCRAFT/CONXALL S1012	1 Connector 1 Handle	Black Silver	Tin	Elastomer	Copper Alloy	Copper Alloy		11 A	Solder	Strain Relief	Free Hanging (In-Line)	24 VDC	-40 C	105 ░C	Plug	Blue	Unshielded	2 mm 5.5 mm	2	3	Female

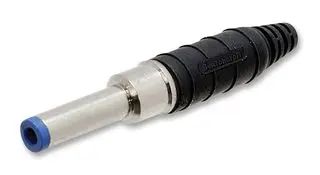

SWITCHCRAFT/CONXALL S1015	1 Connector 1 Handle	Black Silver	Tin	Elastomer	Copper Alloy	Copper Alloy		11 A	Solder	Strain Relief	Free Hanging (In-Line)	24 VDC	-40 C	105 ░C	Plug	Blue	Unshielded	2 mm 5.5 mm	2	3	Female

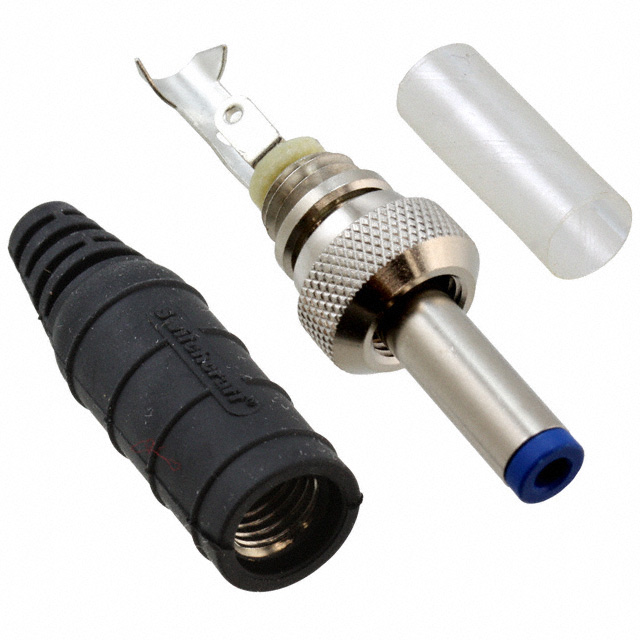

SWITCHCRAFT/CONXALL S10KS12	1 Connector 1 Handle 1 Insulator Tube	Black Silver	Silver	Elastomer	Copper Alloy	Copper Alloy	IP68	11 A	Solder	Cable Clamp Strain Relief Thread Lock	Free Hanging (In-Line)	24 VDC	-40 C	105 ░C	Plug	Blue	Unshielded	2 mm 5.5 mm	2	3	Female

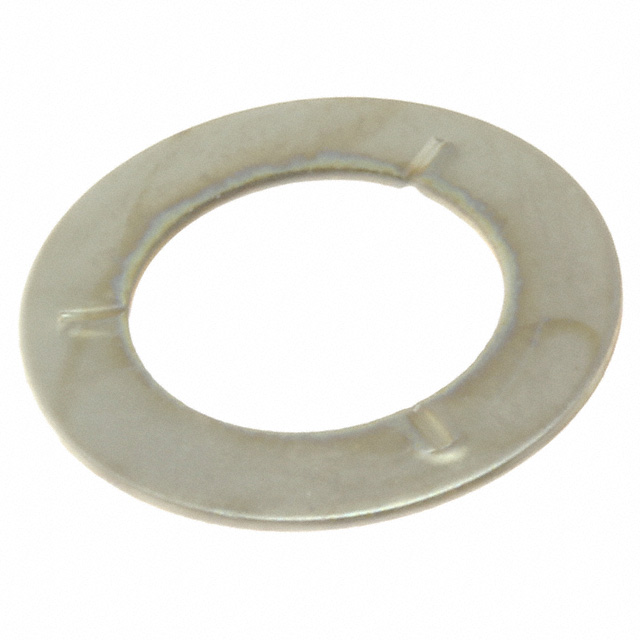

SWITCHCRAFT/CONXALL S10221																						15.88 mm	5 /8"	0.625 in	9.53 mm	0.375 in	0.51 mm	0.02 in	Flat	Nickel	0.375 in
SWITCHCRAFT/CONXALL S1028																						15.88 mm	5 /8"	0.625 in	9.53 mm	0.375 in	0.03125 "	0.031 in	Flat			0.79 mm	Plastic

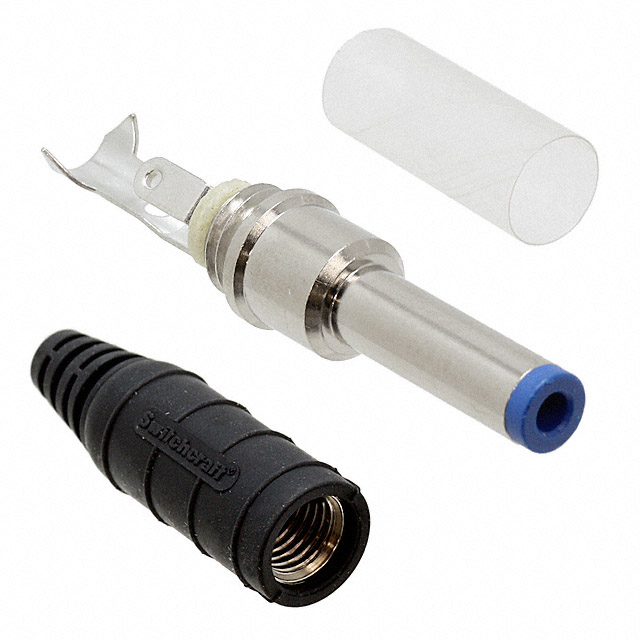

SWITCHCRAFT/CONXALL S1017	1 Connector 1 Handle	Black Silver	Tin	Elastomer	Copper Alloy	Copper Alloy		11 A	Solder	Strain Relief	Free Hanging (In-Line)	24 VDC	-40 C	105 ░C	Plug	Blue	Unshielded	2 mm 5.5 mm	2	3	Female
SWITCHCRAFT/CONXALL S1029																						15.88 mm	5 /8"	0.625 in	9.53 mm	0.375 in					0.375 in		Fibre	0.03125 "	0.79 mm	0.031 "	0.064 in	1.63 mm	0.625 "	5/8"	15.88 mm

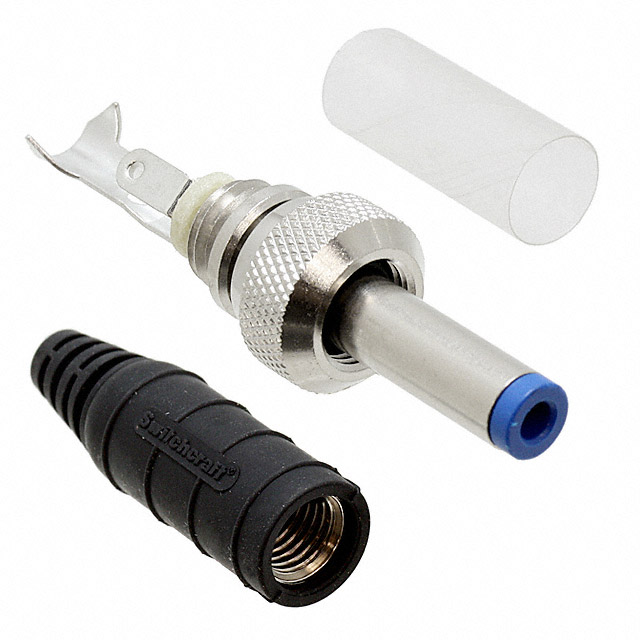

SWITCHCRAFT/CONXALL S10KS17	1 Connector 1 Handle 1 Insulator Tube	Black Silver	Silver	Elastomer	Copper Alloy	Copper Alloy	IP68	11 A	Solder	Cable Clamp Strain Relief Thread Lock	Free Hanging (In-Line)	24 VDC	-40 C	105 ░C	Plug	Blue	Unshielded	2 mm 5.5 mm	2	3	Female
SWITCHCRAFT/CONXALL S10451																						15.88 mm	5 /8"	0.625 in	9.53 mm	0.375 in	0.51 mm	0.02 in	Flat	Nickel	0.375 in		Copper Alloy
