TMA-8FS Series

Catalog

MW ADAPTER 1.85(F) TO 2.92(F)

Part	Center Contact Material	Center Gender	Body Material	Style	Convert To (Adapter End)	Convert To (Adapter End)	Impedance	Adapter Type	Adapter Series [Max]	Adapter Series [Min]	Convert From (Adapter End)	Frequency - Max [Max]	Conversion Type	Mounting Type	Convert To (Adapter End) [custom]
Amphenol CDI TMA-8FS-9FS-00	Beryllium Copper	Female to Female	Stainless Steel	Straight	Jack Female Socket	2.92 mm	50 Ohms	Jack to Jack	2.92 mm	1.85 mm	1.85mm Jack Female Socket	40 GHz	Between Series	Free Hanging (In-Line)

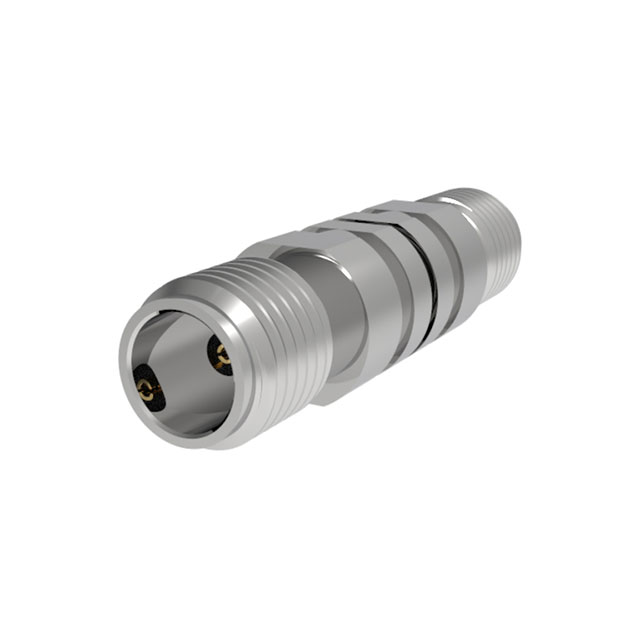

Amphenol CDI TMA-8FS-4FS-00		Female to Female		Straight	(APC-2.4 OS-50) Jack Female Socket	2.4 mm		Jack to Jack	2.4 mm	1.85 mm	1.85mm Jack Female Socket	50 GHz	Between Series	Free Hanging (In-Line)

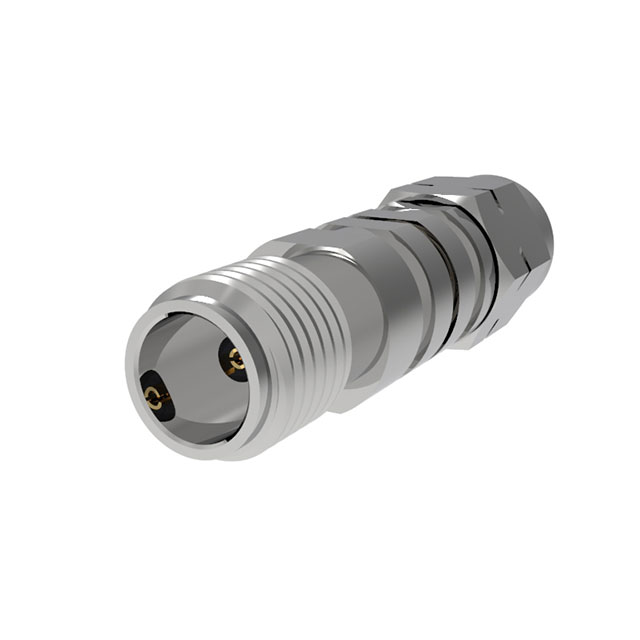

Amphenol CDI TMA-8FS-4MS-00	Beryllium Copper		Stainless Steel	Straight			50 Ohms	Plug to Jack	2.4 mm	1.85 mm	1.85mm Jack Female Socket	50 GHz	Between Series	Free Hanging (In-Line)	2.4 mm
Amphenol CDI TMA-8FS-5MS-00				Straight	3.5mm Plug Male Pin		50 Ohms	Plug to Jack	3.5 mm	1.85 mm	1.85mm Jack Female Socket	26.5 GHz	Between Series	Free Hanging (In-Line)
Amphenol CDI TMA-8FS-9FS-00		Female to Female		Straight	Jack Female Socket	2.92 mm	50 Ohms	Jack to Jack	2.92 mm	1.85 mm	1.85mm Jack Female Socket	40 GHz	Between Series	Free Hanging (In-Line)
Amphenol CDI TMA-8FS-8FS-00		Female to Female		Straight	1.85mm Jack Female Socket		50 Ohms	Jack to Jack	1.85 mm	1.85 mm	1.85mm Jack Female Socket	65 GHz	Same Series	Free Hanging (In-Line)
Amphenol CDI TMA-8FS-4FS-00		Female to Female		Straight	(APC-2.4 OS-50) Jack Female Socket	2.4 mm		Jack to Jack	2.4 mm	1.85 mm	1.85mm Jack Female Socket	50 GHz	Between Series	Free Hanging (In-Line)
Amphenol CDI TMA-8FS-5FS-00	Beryllium Copper	Female to Female	Stainless Steel	Straight	3.5mm Jack Female Socket		50 Ohms	Jack to Jack	3.5 mm	1.85 mm	1.85mm Jack Female Socket	26.5 GHz	Between Series	Free Hanging (In-Line)
Amphenol CDI TMA-8FS-8FS-00	Beryllium Copper	Female to Female	Stainless Steel	Straight	1.85mm Jack Female Socket		50 Ohms	Jack to Jack	1.85 mm	1.85 mm	1.85mm Jack Female Socket	65 GHz	Same Series	Free Hanging (In-Line)
Amphenol CDI TMA-8FS-5FS-00		Female to Female		Straight	3.5mm Jack Female Socket		50 Ohms	Jack to Jack	3.5 mm	1.85 mm	1.85mm Jack Female Socket	26.5 GHz	Between Series	Free Hanging (In-Line)
