222A132 Series

Catalog

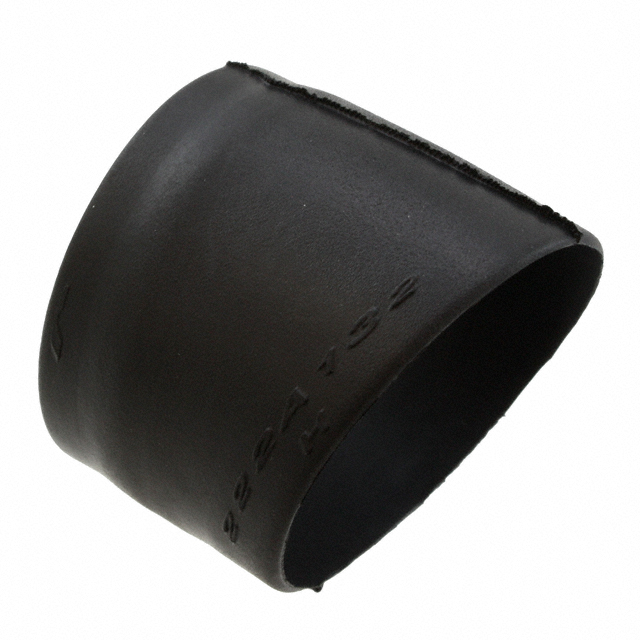

HEATSHRINK BOOT R/A SZ32 BLACK

Part	Features	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Color	Shell Size - Insert	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Type	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Large Recovered Length	Large Recovered Length	Material	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Large Diameter Recovered [diameter]	Large Diameter Supplied	Large Diameter Supplied	Small Recovered Length	Small Recovered Length
TE Connectivity Aerospace, Defense and Marine 222A132-3-0	Adhesive Coating	6.4 mm	0.252 "	Black	32	30 mm	1.181 in	Boot - 90°	0.559 in	14.2 mm	1.051 in	26.7 mm	Polyolefin (PO) Semi-Rigid	30 mm	1.181 in
TE Connectivity Aerospace, Defense and Marine 222A132-25-0		6.4 mm	0.252 "	Black	32	30 mm	1.181 in	Boot - 90°	0.559 in	14.2 mm	1.051 in	26.7 mm	Elastomer Semi-Rigid	30 mm	1.181 in
TE Connectivity Aerospace, Defense and Marine 222A132-3/86-0		20.57 mm	0.81 "	Black	32			Boot - 90°		0.56 in	1.05 in	26.67 mm	Polyolefin (PO) Semi-Rigid			14.22 mm	29.97 mm	1.18 in	0.28 in	7.11 mm
TE Connectivity Aerospace, Defense and Marine 222A132-3-0-CS5501		20.57 mm	0.81 "	Black	32			Boot - 90°		0.56 in	1.05 in	26.67 mm	Polyolefin (PO) Semi-Rigid			14.22 mm	29.97 mm	1.18 in	0.28 in	7.11 mm
TE Connectivity Aerospace, Defense and Marine 222A132-12-0		6.4 mm	0.252 "	Black	32	20.6 mm	0.811 in	Boot - 90°	0.559 in	14.2 mm	1.051 in	26.7 mm	Fluoroelastomer (FKM) Flexible	30 mm	1.181 in
