CGS SMV Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SMV 2W 10M 5%

Part	Tolerance	Supplier Device Package	Temperature Coefficient	Resistance	Number of Terminations [custom]	Features	Composition	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
TE Connectivity AMP Connectors SMV2W10MJT	5 %	SMD	200 ppm/°C	10 MOhms	2	Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety	Metal Film	0.209 "	5.3 mm	10.5 mm	5.5 mm	0.413 in	0.217 in	2 W	-65 ░C	200 °C	4122 J-Lead
TE Connectivity AMP Connectors SMV2W100KJT	5 %	SMD	200 ppm/°C	100 kOhms	2	Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety	Metal Film	0.209 "	5.3 mm	10.5 mm	5.5 mm	0.413 in	0.217 in	2 W	-65 ░C	200 °C	4122 J-Lead
TE Connectivity AMP Connectors SMV3W100KJT	5 %	SMD	200 ppm/°C	100 kOhms	2	Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety	Metal Film			13.5 mm	7.3 mm	0.531 in	0.287 in	3 W	-65 ░C	200 °C	5329 (13573 Metric) J-Lead	7.1 mm	0.28 in

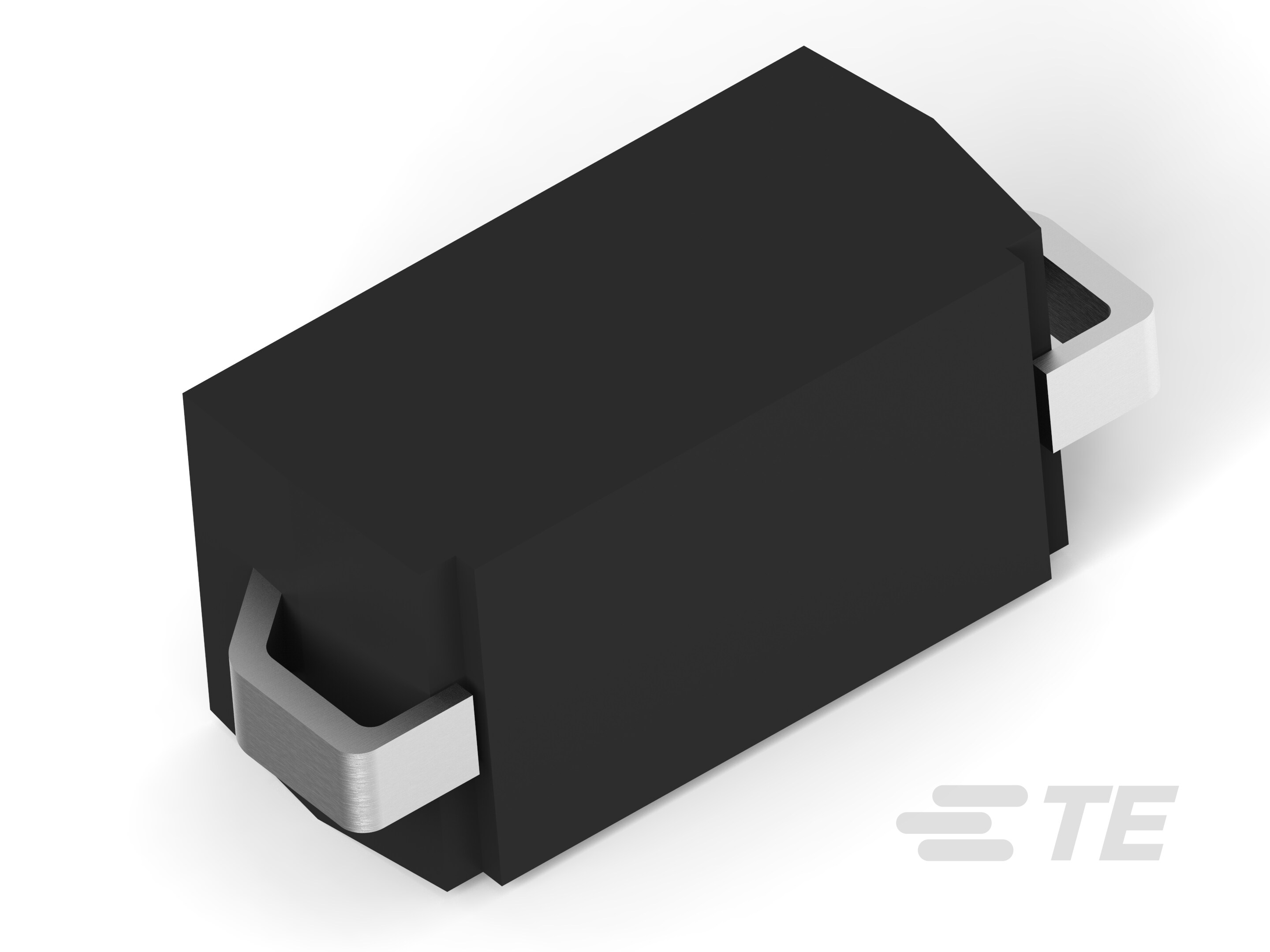

TE Connectivity AMP Connectors SMV3W10MJT	5 %	SMD	200 ppm/°C	10 MOhms	2	Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety	Metal Film			13.5 mm	7.3 mm	0.531 in	0.287 in	3 W	-65 ░C	200 °C	5329 (13573 Metric) J-Lead	7.1 mm	0.28 in
TE Connectivity AMP Connectors SMV1W1M8JT	5 %	SMD	200 ppm/°C	1.8 MOhms	2	Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety	Metal Film			6.7 mm	4 mm	0.264 in	0.157 "	1 W	-65 ░C	200 °C	2616 (6740 Metric) J-Lead	0.152 in		3.85 mm
TE Connectivity AMP Connectors SMV3W330KJT	5 %	SMD	200 ppm/°C	330 kOhms	2	Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety	Metal Film			13.5 mm	7.3 mm	0.531 in	0.287 in	3 W	-65 ░C	200 °C	5329 (13573 Metric) J-Lead	7.1 mm	0.28 in
TE Connectivity AMP Connectors SMV2W470KJT	5 %	SMD	200 ppm/°C	470 kOhms	2	Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety	Metal Film	0.209 "	5.3 mm	10.5 mm	5.5 mm	0.413 in	0.217 in	2 W	-65 ░C	200 °C	4122 J-Lead
TE Connectivity AMP Connectors SMV2W1M5JT	5 %	SMD	200 ppm/°C	1.5 MOhms	2	Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety	Metal Film	0.209 "	5.3 mm	10.5 mm	5.5 mm	0.413 in	0.217 in	2 W	-65 ░C	200 °C	4122 J-Lead
TE Connectivity AMP Connectors SMV3W560KJT	5 %	SMD	200 ppm/°C	560 kOhms	2	Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety	Metal Film			13.5 mm	7.3 mm	0.531 in	0.287 in	3 W	-65 ░C	200 °C	5329 (13573 Metric) J-Lead	7.1 mm	0.28 in
TE Connectivity AMP Connectors SMV2W390KJT	5 %	SMD	200 ppm/°C	390 kOhms	2	Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety	Metal Film	0.209 "	5.3 mm	10.5 mm	5.5 mm	0.413 in	0.217 in	2 W	-65 ░C	200 °C	4122 J-Lead
