7141 Series

Catalog

RELAY REED SPDT 250MA 12V

Part	Coil Current	Coil Voltage	Switching Voltage	Must Operate Voltage	Operate Time	Mounting Type	Termination Style	Must Release Voltage	Contact Form	Contact Rating (Current)	Release Time	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Coil Resistance	Features
COTO TECHNOLOGY 7141-12-1100	10.9 mA	12 VDC	150 VDC 150 VAC	9 VDC	2 ms	Through Hole	PC Pin	1 VDC	SPDT (1 Form C)	250 mA	2.5 ms	85 °C	-20 ░C	Non Latching
COTO TECHNOLOGY 7141-24-1100	5.7 mA	24 VDC	150 VDC 150 VAC	18 VDC	2 ms	Through Hole	PC Pin	2 VDC	SPDT (1 Form C)	250 mA	2.5 ms	85 °C	-20 ░C	Non Latching	4.2 kOhms
COTO TECHNOLOGY 7141-05-1011	28.6 mA	5 VDC	150 VDC 150 VAC	3.75 VDC	2 ms	Through Hole	PC Pin	0.4 VDC	SPDT (1 Form C)	250 mA	2.5 ms	85 °C	-20 ░C	Non Latching	175 Ohms	Diode Electrostatic Shield
COTO TECHNOLOGY 7141-12-1000	10.9 mA	12 VDC	150 VDC 150 VAC	9 VDC	2 ms	Through Hole	PC Pin	1 VDC	SPDT (1 Form C)	250 mA	2.5 ms	85 °C	-20 ░C	Non Latching
COTO TECHNOLOGY 7141-12-1010	10.9 mA	12 VDC	150 VDC 150 VAC	9 VDC	2 ms	Through Hole	PC Pin	1 VDC	SPDT (1 Form C)	250 mA	2.5 ms	85 °C	-20 ░C	Non Latching		Electrostatic Shield
COTO TECHNOLOGY 7141-12-1011	10.9 mA	12 VDC	150 VDC 150 VAC	9 VDC	2 ms	Through Hole	PC Pin	1 VDC	SPDT (1 Form C)	250 mA	2.5 ms	85 °C	-20 ░C	Non Latching		Diode Electrostatic Shield
COTO TECHNOLOGY 7141-05-1010	28.6 mA	5 VDC	150 VDC 150 VAC	3.75 VDC	2 ms	Through Hole	PC Pin	0.4 VDC	SPDT (1 Form C)	250 mA	2.5 ms	85 °C	-20 ░C	Non Latching	175 Ohms	Electrostatic Shield

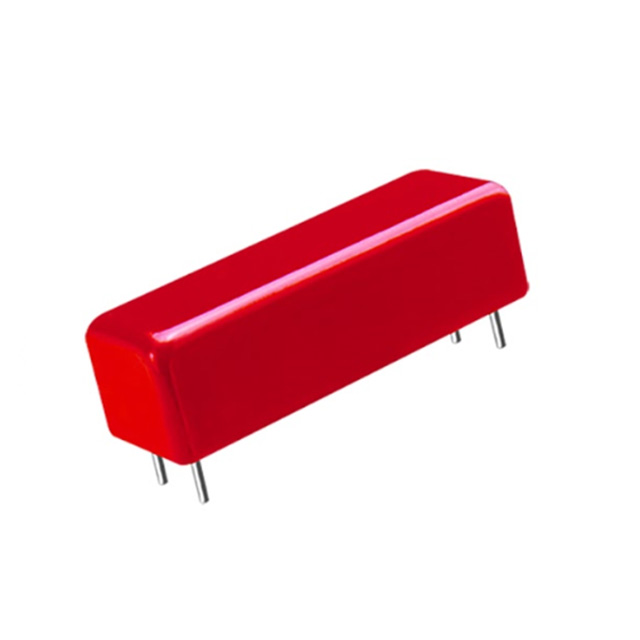

COTO TECHNOLOGY 7141-12-1001	10.9 mA	12 VDC	150 VDC 150 VAC	9 VDC	2 ms	Through Hole	PC Pin	1 VDC	SPDT (1 Form C)	250 mA	2.5 ms	85 °C	-20 ░C	Non Latching		Diode
