00-9177 Series
Manufacturer: KYOCERA AVX
Beta
⌘K

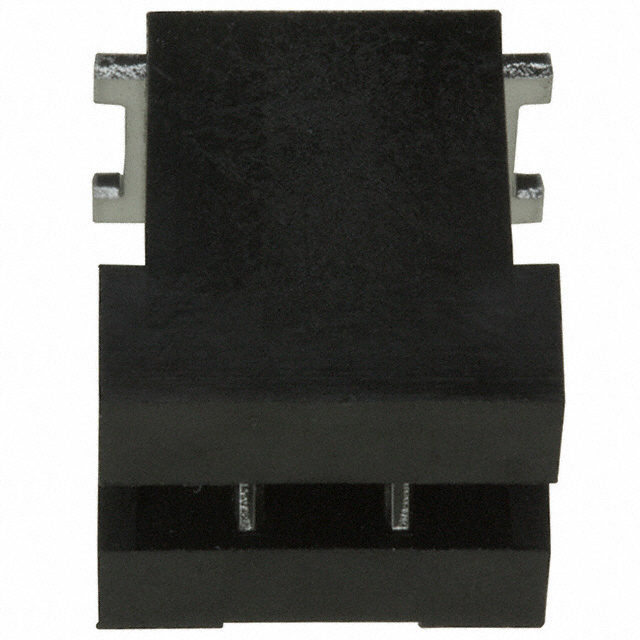

HEADERS & WIRE HOUSINGS 1P IDC CONNECTOR 14AWG
| Part | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Contact Material | Housing Color | Number of Positions | Wire Gauge | Termination | Features | Contact Finish | Housing Material | Style | Pitch | Pitch | Voltage Rating | Current Rating (Amps) | Mating Cycles | Accessory Type | For Use With/Related Products | Specifications | Specifications | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | Surface Mount | 125 °C | -40 C | Contact IDC | Phosphor Bronze | Black | 1 | 14.5 AWG | Solder | Cap (Cover) | Tin | Polyamide (PA46) Nylon 4/6 | Board to Cable/Wire | ||||||||||
 KYOCERA AVX | Surface Mount | 125 °C | -40 C | Contact IDC | Phosphor Bronze | White | 1 | 16 AWG | Solder | Tin | Polyamide (PA46) Nylon 4/6 | Board to Cable/Wire | 9 mm | 0.354 " | |||||||||
 KYOCERA AVX | Surface Mount | 125 °C | -40 C | Contact IDC | Phosphor Bronze | Black | 1 | 20 AWG | Solder | Cap (Cover) | Tin | Polyamide (PA46) Nylon 4/6 | Board to Cable/Wire | 600 V | 15 A | 3 cycles | |||||||
KYOCERA AVX | Cap (Cover) | 9177 Series Contacts IDC | 3 | Through Wire | Nylon 4/6 Polyamide (PA46) |
