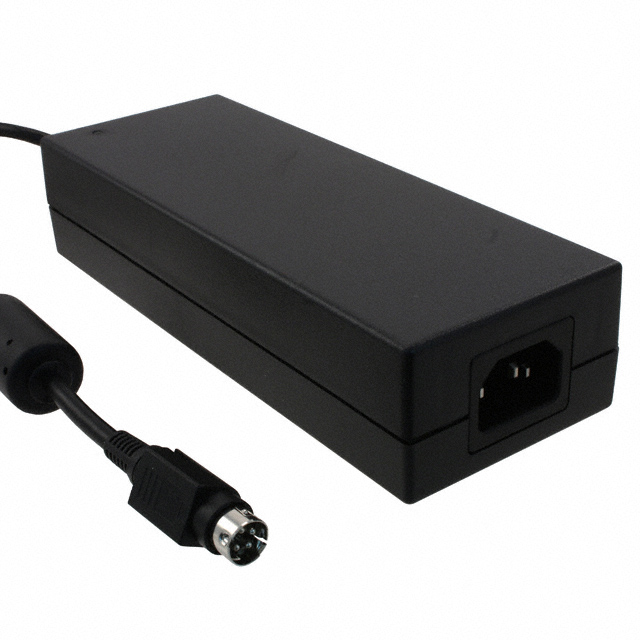

DTM110 Series

Catalog

PLUG-IN ADAPTER SINGLE-OUT 15V 7.34A 110W CARTON

Part	Weight [custom]	Weight [custom]	Output Connector	No Load Power Consumption	Efficiency	Approval Agency	Cord Length	Cord Length	Voltage - Output	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Input Connector	Form	Applications	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Input Type	Region Utilized	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Weight [custom]	Weight [custom]	Cord Length
TDK Corporation DTM110PW150C8	780 g	1.7 lbs	Power DIN 4 Pin	150 mW	CoC Tier 2 Level VI	CE	1 m	39.4 in	15 V	33 mm	2.48 in	63 mm	1.3 in	140 mm	5.51 in	IEC 320-C8	Desktop (Class II)	ITE (Commercial) Medical	110 W	264 VAC	90 VAC	Cord (Sold Separately)	International	7.34 A	-20 ░C	60 °C
TDK Corporation DTM110PW280C8	780 g	1.7 lbs	Power DIN 4 Pin	150 mW	CoC Tier 2 Level VI	CE	1 m	39.4 in	28 V	33 mm	2.48 in	63 mm	1.3 in	140 mm	5.51 in	IEC 320-C8	Desktop (Class II)	ITE (Commercial) Medical	110 W	264 VAC	90 VAC	Cord (Sold Separately)	International	3.93 A	-20 ░C	60 °C
TDK Corporation DTM110PW480C8	780 g	1.7 lbs	Power DIN 4 Pin	150 mW	CoC Tier 2 Level VI	CE	1 m	39.4 in	48 V	33 mm	2.48 in	63 mm	1.3 in	140 mm	5.51 in	IEC 320-C8	Desktop (Class II)	ITE (Commercial) Medical	110 W	264 VAC	90 VAC	Cord (Sold Separately)	International		-20 ░C	60 °C
TDK Corporation DTM110PW200C			Power DIN 4 Pin		Level V			1.05 m	20 V	38.5 mm	2.55 "	64.8 mm	1.52 in	170 mm	6.7 "	IEC 320-C14	Desktop (Class I)	Medical	110 W	264 VAC	90 VAC	Cord (Sold Separately)	International	5.5 A	0 °C	40 °C	1.3 lbs	589.7 g	41.34 in
TDK Corporation DTM110PW190C8	780 g	1.7 lbs	Power DIN 4 Pin	150 mW	CoC Tier 2 Level VI	CE	1 m	39.4 in	19 V	33 mm	2.48 in	63 mm	1.3 in	140 mm	5.51 in	IEC 320-C8	Desktop (Class II)	ITE (Commercial) Medical	110 W	264 VAC	90 VAC	Cord (Sold Separately)	International		-20 ░C	60 °C
TDK Corporation DTM110PW240C8	780 g	1.7 lbs	Power DIN 4 Pin	150 mW	CoC Tier 2 Level VI	CE	1 m	39.4 in	24 V	33 mm	2.48 in	63 mm	1.3 in	140 mm	5.51 in	IEC 320-C8	Desktop (Class II)	ITE (Commercial) Medical	110 W	264 VAC	90 VAC	Cord (Sold Separately)	International	4.59 A	-20 ░C	60 °C
TDK Corporation DTM110PW135C			Power DIN 4 Pin		Level V			1.05 m	13.5 V	38.5 mm	2.55 "	64.8 mm	1.52 in	170 mm	6.7 "	IEC 320-C14	Desktop (Class I)	Medical	90 W	264 VAC	90 VAC	Cord (Sold Separately)	International	6.67 A	0 °C	40 °C	1.3 lbs	589.7 g	41.34 in
