5591201 Series
Manufacturer: DIALIGHT
Beta
⌘K

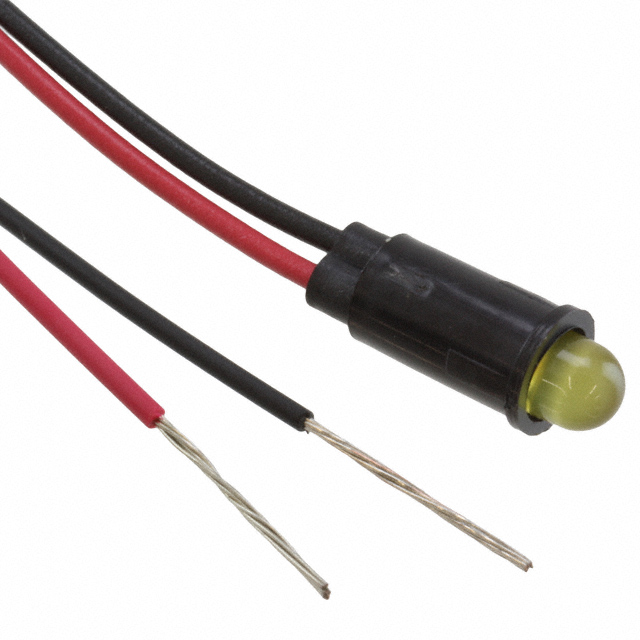

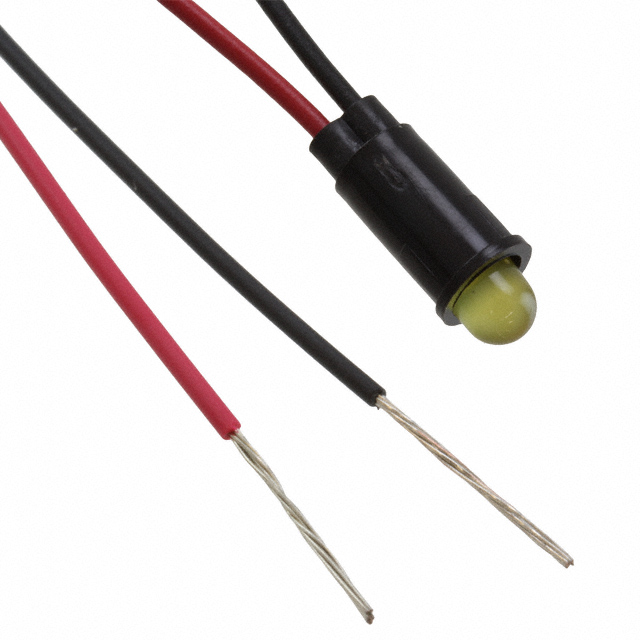

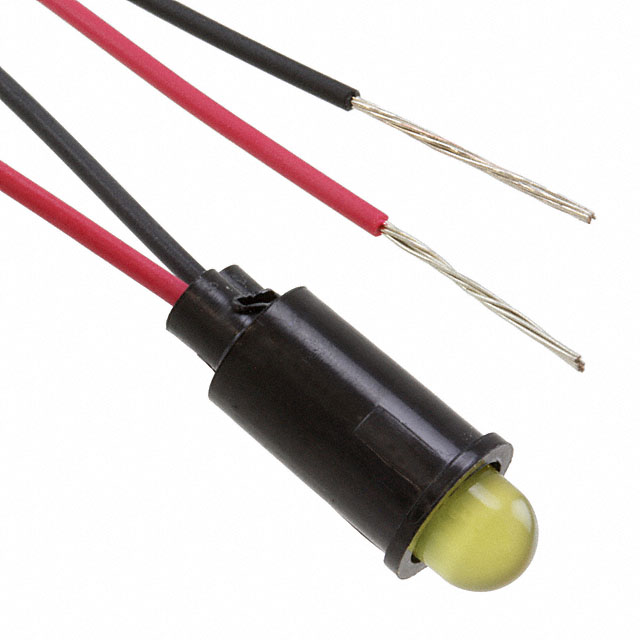

LED PANEL YLW DIFF 1.9V SNAP 6"L
| Part | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [x] | Millicandela Rating | Voltage | Viewing Angle | Panel Cutout Shape | Wavelength - Peak | Lens Color | Lens Size | Lens Size | Lens Style | Type | Lamp Color | Lens Transparency | Current | Termination Style | Termination Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DIALIGHT | 6.35 mm | 0.25 in | 1.8 mcd | 1.9 V | 50 ° | Round | 583 nm | Yellow | 5 mm | T-1 3/4 | Round with Domed Top | LED | Yellow | Diffused | 7 mA | |||
 DIALIGHT | 6.35 mm | 0.25 in | 1.8 mcd | 1.9 V | 50 ° | Round | 583 nm | Yellow | 5 mm | T-1 3/4 | Round with Domed Top | LED | Yellow | Diffused | 7 mA | PC Pin | ||
 DIALIGHT | 6.35 mm | 0.25 in | 1.8 mcd | 1.9 V | 50 ° | Round | 583 nm | Yellow | 5 mm | T-1 3/4 | Round with Domed Top | LED | Yellow | Diffused | 7 mA | |||
 DIALIGHT | 6.35 mm | 0.25 in | 1.8 mcd | 1.9 V | 50 ° | Round | 583 nm | Yellow | 5 mm | T-1 3/4 | Round with Domed Top | LED | Yellow | Diffused | 7 mA | Wire Leads | 14 in | 355.6 mm |
