LM5036 Series
Manufacturer: Texas Instruments
Beta
⌘K
DEVELOPMENT POWER MANAGEMENT
| Part | Supplied Contents | Outputs and Type | Outputs and Type | Utilized IC / Part | Voltage - Output | Main Purpose | Regulator Topology | Board Type | Frequency - Switching | Current - Output | Voltage - Input [Max] | Voltage - Input [Min] | Number of Outputs | Duty Cycle (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Function | Output Configuration | Output Phases | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Synchronous Rectifier | Mounting Type | Clock Sync | Supplier Device Package | Topology | Control Features | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | Board(s) | Isolated | 1 | LM5036 | 12 V | DC/DC Step Down | Buck | Fully Populated | 200 kHz | 8 A | 75 V | 36 V | ||||||||||||||||

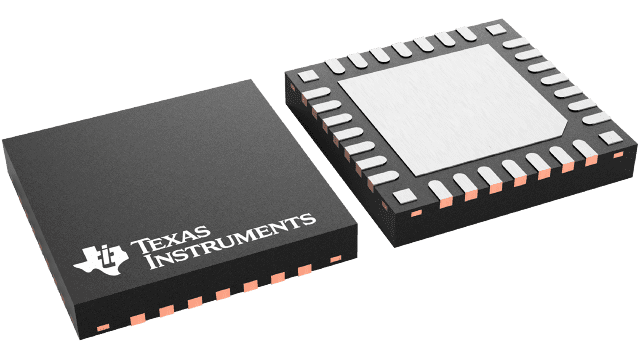

 Texas Instruments | 2 MHz | 2 | 50 % | -40 °C | 125 ¯C | Step-Up/Step-Down | Isolation Capable Positive | 2 | 7.5 V | 8.1 V | Surface Mount | 28-WQFN (5x5) | Half-Bridge | Current Limit Frequency Control Ramp | 28-WFQFN Exposed Pad |
