681S11W Series
Manufacturer: NorComp Inc.
Beta
⌘K

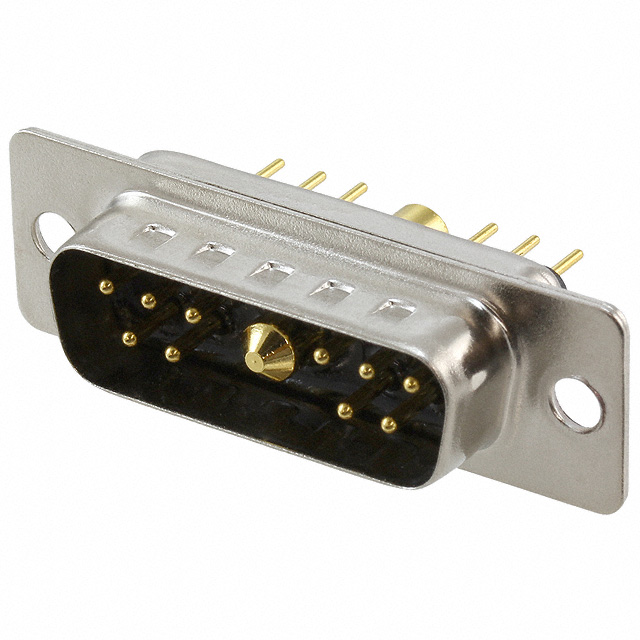

COMBINATION LAYOUT D SUB CONNECTOR, SEAL-D, IP68, SEAL-D 681S SERIES, DA-11W1, PLUG, 11 CONTACTS
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Color | Mounting Type | Current Rating (Amps) | Connector Style | Features | Contact Finish | Contact Finish Thickness | Termination | Flange Feature | Shell Size, Connector Layout | Connector Type | Contact Type | Number of Positions [custom] | Number of Positions [custom] | Ingress Protection | Material Flammability Rating | Number of Rows [custom] | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Polybutylene Terephthalate (PBT) | 155 C | -55 C | Copper Alloy | Black | Panel Mount Through Hole | 5 A 40 A | Combo D-Sub | Grounding Indents | Gold | Flash | Solder | Housing/Shell (Unthreaded) | 2 (DA A) - 11C1 11W1 | Plug Male Pins | Signal and Power | 10 | 1 | IP67 - Dust Tight Waterproof | UL94 V-0 | 2 | Nickel Plated Steel |
