9666-9113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

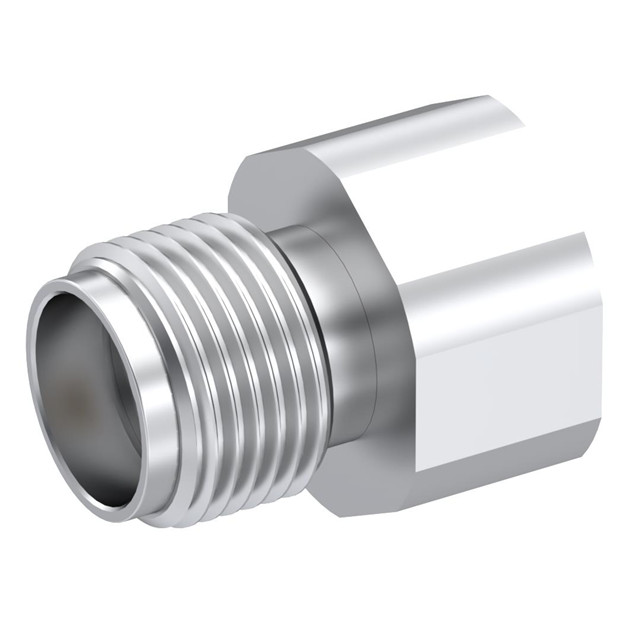

SMA / STRAIGHT JACK FEMALE PASSI
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Mating Cycles | Center Contact Plating | Connector Type | Number of Ports | Contact Termination | Fastening Type | Shield Termination | Connector Style | Housing Color | Center Contact Material | Mounting Type | Frequency - Max [Max] | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | -65 ░C | 250 °C | Stainless Steel | 500 | Gold | Female Socket Jack | 1 | Solder | Threaded | Solder | SMA | Silver | Beryllium Copper | Free Hanging (In-Line) | 18 GHz | 50 Ohms |
