0906-4 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

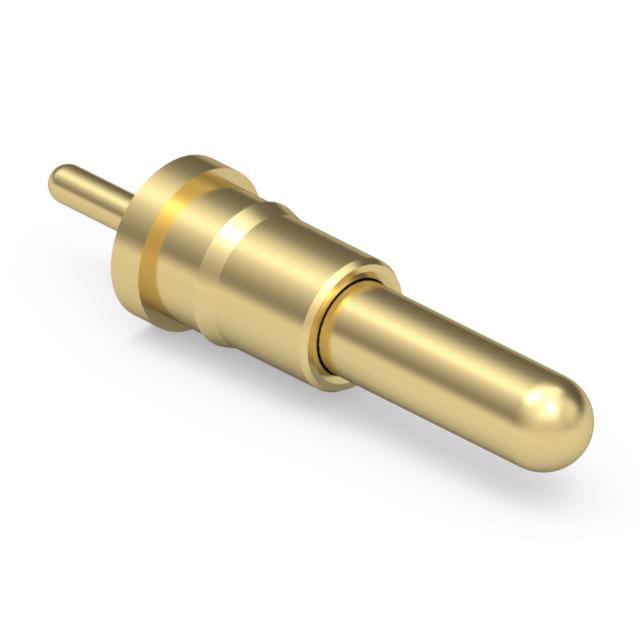

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Maximum Working Height [Max] | Maximum Working Height | Contact Material | Pad Layout Dimension | Pad Layout Dimension | Operating Force - Mid Compression | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Recommended Working Height | Recommended Working Height | Mounting Type | Mating Cycles | Contact Finish | Minimum Working Height [z] | Minimum Working Height [z] | Operating Force - Initial | Plunger Size [diameter] | Plunger Size [diameter] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.236 in | 6 mm | Brass Alloy | 0.072 in | 1.83 mm | 60 gf | Sleeve & Plunger (Pogo Pins) | 20 µin | 0.51 µm | 5.29 mm | 0.208 in | Through Hole | 1000000 | Gold | 0.181 in | 4.6 mm | 10 gf | 0.042 in | 1.07 mm | 5.2 A |
