5491C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

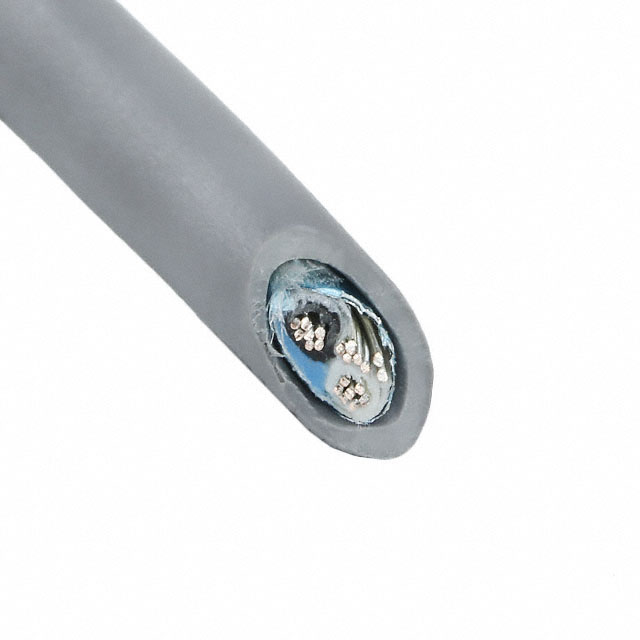

MULTIPAIR CABLE, XTRA GUARD® 1, SHIELDED, 1 PAIR, 24 AWG, 0.23 MM², 500 FT, 152.4 M
| Part | Shield Material | Shield Coverage | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Jacket (Insulation) Material | Usage | Features | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Number of Conductors | Conductor Insulation | Voltage | Cable Type | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | -35 °C | 105 ░C | ISO 10993 UL Style 2464 | 4.06 mm | 0.16 in | 24 AWG | Poly-Vinyl Chloride (PVC) | Communication Control | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | 0.813 mm | 0.032 in | Slate | 7 | 32 AWG | Foil | 2 | Poly-Vinyl Chloride (PVC) | 300 VDC | Multi-Conductor | 152.4 m | 500 ft | ||
ALPHA WIRE | Aluminum | 100 % | -35 °C | 105 ░C | ISO 10993 UL Style 2464 | 4.06 mm | 0.16 in | 24 AWG | Poly-Vinyl Chloride (PVC) | Communication Control | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | 0.813 mm | 0.032 in | Slate | 7 | 32 AWG | Foil | 2 | Poly-Vinyl Chloride (PVC) | 300 VDC | Multi-Conductor | 304.8 m | 1000 ft | ||
ALPHA WIRE | Aluminum | 100 % | -35 °C | 105 ░C | ISO 10993 UL Style 2464 | 4.06 mm | 0.16 in | 24 AWG | Poly-Vinyl Chloride (PVC) | Communication Control | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | 0.813 mm | 0.032 in | Slate | 7 | 32 AWG | Foil | 2 | Poly-Vinyl Chloride (PVC) | 300 VDC | Multi-Conductor | ||||
 ALPHA WIRE | Aluminum | 100 % | -35 °C | 105 ░C | ISO 10993 UL Style 2464 | 4.06 mm | 0.16 in | 24 AWG | Poly-Vinyl Chloride (PVC) | Communication Control | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | 0.813 mm | 0.032 in | Black | 7 | 32 AWG | Foil | 2 | Poly-Vinyl Chloride (PVC) | 300 VDC | Multi-Conductor | 304.8 m | 1000 ft | ||
 ALPHA WIRE | Aluminum | 100 % | -35 °C | 105 ░C | ISO 10993 UL Style 2464 | 4.06 mm | 0.16 in | 24 AWG | Poly-Vinyl Chloride (PVC) | Communication Control | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | 0.813 mm | 0.032 in | Slate | 7 | 32 AWG | Foil | 2 | Poly-Vinyl Chloride (PVC) | 300 VDC | Multi-Conductor | 100 ft | 30.5 m |
