XM3A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

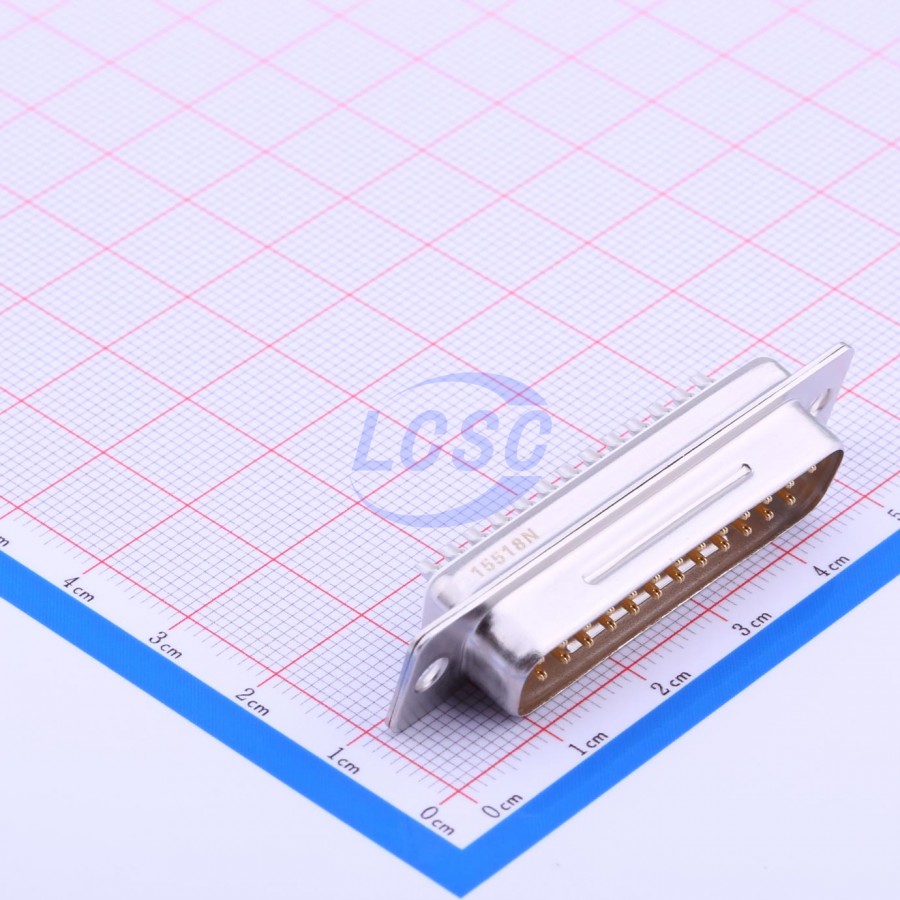

CONN D-SUB PLUG 25POS SOLDER CUP
| Part | Voltage Rating | Dielectric Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Shell Material, Finish | Connector Type | Contact Finish | Connector Style | Material Flammability Rating | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Flange Feature | Number of Rows [custom] | Mounting Type | Current Rating (Amps) | Features | Wire Gauge [Min] | Wire Gauge [Max] | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

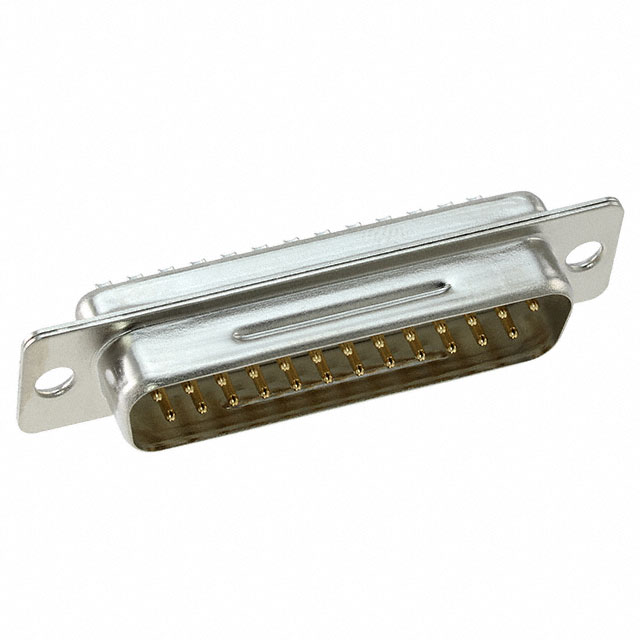

 Omron Electronics Inc-EMC Div | 300 VDC | Polybutylene Terephthalate (PBT) Glass Filled | White | -55 C | 105 ░C | Brass | Nickel Plated Steel | Plug Male Pins | Gold | D-Sub | UL94 V-0 | Signal | 16 µin | 0.41 µm | 25 | B DB | 3 | Housing/Shell (Unthreaded) | 2 | Free Hanging (In-Line) | 5 A | Shielded | |||

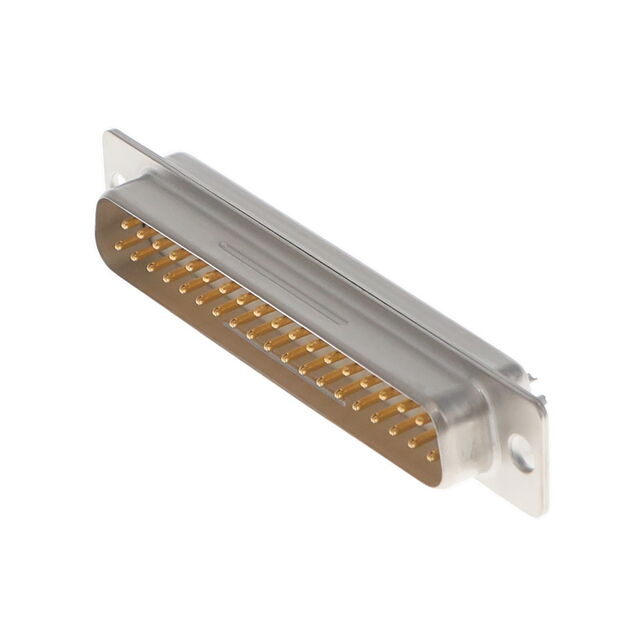

 Omron Electronics Inc-EMC Div | 300 VDC | Polybutylene Terephthalate (PBT) Glass Filled | White | -55 C | 105 ░C | Phosphor Bronze | Nickel Plated Steel | Plug Male Pins | Gold | D-Sub | UL94 V-0 | Signal | 16 µin | 0.41 µm | 37 | DC C | Housing/Shell (Unthreaded) | 2 | Free Hanging (In-Line) | 5 A | Shielded | 22 AWG | 28 AWG | 4 | |

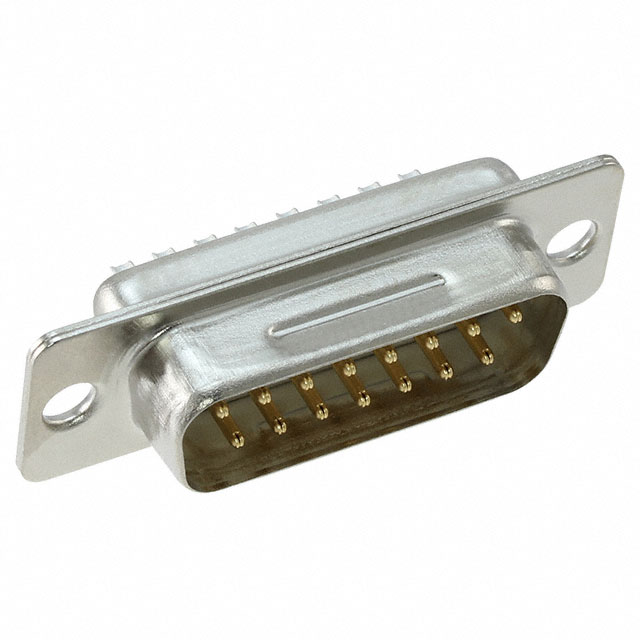

 Omron Electronics Inc-EMC Div | 300 VDC | Polybutylene Terephthalate (PBT) Glass Filled | White | -55 C | 105 ░C | Brass | Nickel Plated Steel | Plug Male Pins | Gold | D-Sub | UL94 V-0 | Signal | 16 µin | 0.41 µm | 15 | Housing/Shell (Unthreaded) | 2 | Free Hanging (In-Line) | 5 A | Shielded | 2 |
