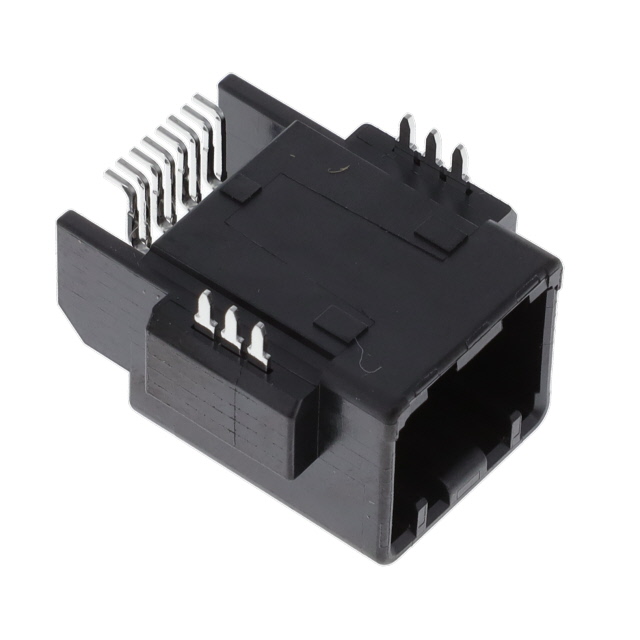

MX34R08H Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN HEADER SMD R/A 8POS 2.2MM
| Part | Applications | Current Rating (Amps) | Features | Mounting Type | Contact Finish - Post | Contact Shape | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Connector Type | Style | Termination | Contact Type | Insulation Material | Number of Positions | Contact Material | Row Spacing - Mating | Row Spacing - Mating | Pitch - Mating | Pitch - Mating | Number of Rows [custom] | Shrouding | Number of Positions Loaded | Insulation Color | Contact Length - Mating | Contact Length - Mating | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | 3 A | Solder Retention | Right Angle Surface Mount | Tin | Square | 85 °C | -40 C | Locking Ramp | Header | Board to Cable/Wire | Solder | Male Pin | Polyphenylene Sulfide (PPS) Glass Filled | 8 | Copper Alloy | 0.118 in | 3 mm | 0.087 in | 2.2 mm | 2 | Shrouded - 4 Wall | All | Black | 0.303 in | 7.7 mm | 13.8 mm | 0.543 in |
