ASMT-QAB Series

Catalog

LED

Part	Thermal Resistance of Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Temperature - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Color	Current - Max [Max]	Lumens/Watt @ Current - Test	Supplier Device Package	Viewing Angle	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature	Mounting Type	Wavelength [Max]	Wavelength	Wavelength [Min]	Current - Test
Broadcom Limited ASMT-QABD-AEFJE

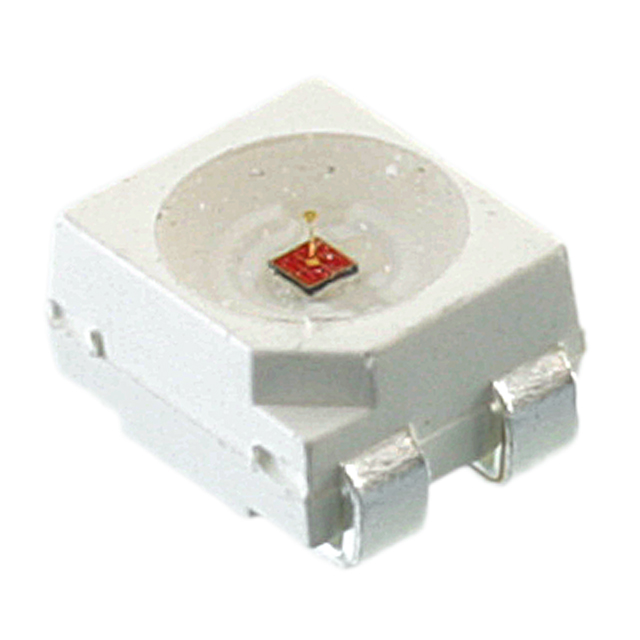

Broadcom Limited ASMT-QABD-AEF0E	60 °C/W	0.11 "	3.2 mm	0.126 "	2.8 mm	25 °C	2.1 mm	0.083 in	4-PLCC	Amber	300 mA	46 lm/W	4-PLCC	120 °	2.3 V	12 lm	20 lm	16 lm	Surface Mount	598 nm	591 nm	583 nm	150 mA

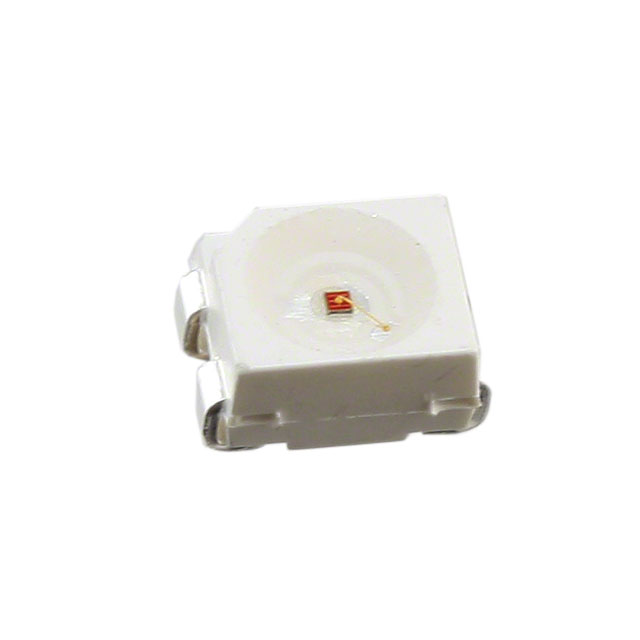

Broadcom Limited ASMT-QAB2-FDE0E	60 °C/W	0.11 "	3.2 mm	0.126 "	2.8 mm	25 °C	2.1 mm	0.083 in	4-PLCC	Amber	150 mA	30 lm/W	4-PLCC	120 °	2.7 V			12 lm	Surface Mount	598 nm	591 nm	583 nm	150 mA
