T77 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

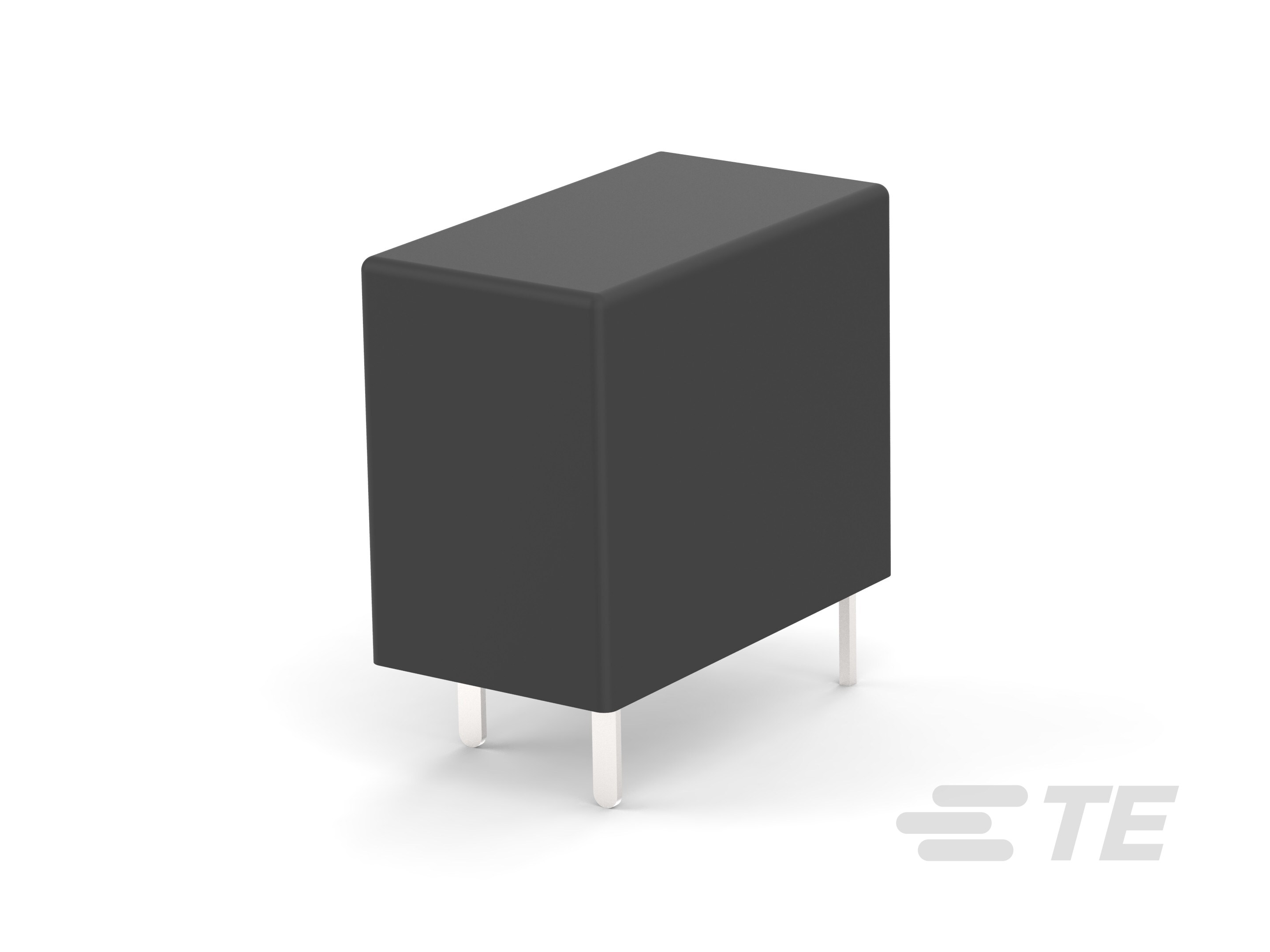

POWER RELAY 12VDC 10A SPST-NO(18.2X10.2X14.7)MM THT
| Part | Termination Style | Contact Form | Switching Voltage [Max] | Must Operate Voltage | Coil Current | Load - Max Switching | Must Release Voltage | Coil Insulation | Mounting Type | Coil Type | Relay Type | Release Time | Operate Time | Seal Rating | Approval Agency | Contact Material | Contact Rating (Current) | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | PC Pin | SPST-NO (1 Form A) | 30 VDC 250 VAC | 9 VDC | 0.0375 A | 300 W 2500 VA | 0.6 VDC | Class F | Through Hole | Non Latching | General Purpose | 4 ms | 10 ms | Sealed - Flux Protection | cURus VDE | Silver Cadmium Oxide (AgCdO) | 10 A | 12 VDC | 85 °C | -30 ░C |
