Si540 Series

Catalog

STANDARD CLOCK OSCILLATORS DIFFERENTIAL/SINGLE-ENDED; SINGLE FREQUENCY XO; 0.2-1500 MHZ

Part	Current - Supply (Disable) (Max) [Max]	Function	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency Stability	Current - Supply (Max) [Max]	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Base Resonator [custom]	Output	Type	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Size / Dimension [y]	Voltage - Supply

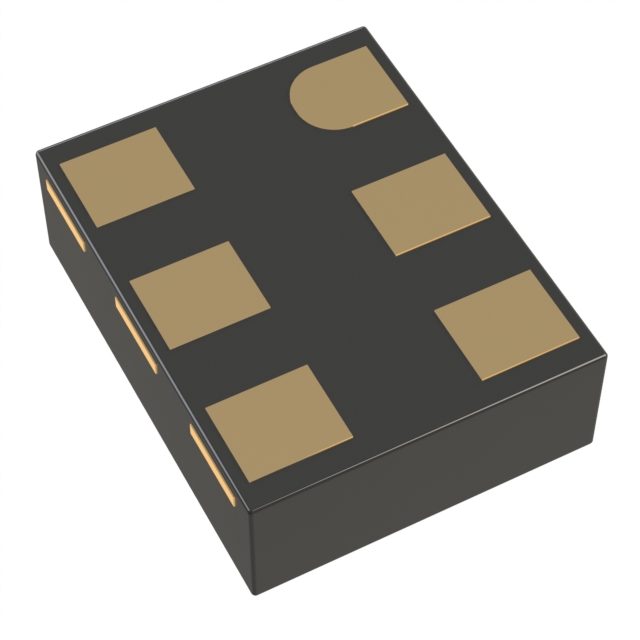

Skyworks Solutions Inc. 540DCA004709CCG	100 mA	Enable/Disable	3.3 V	1.8 V	7 ppm	111 mA	603.22909 MHz	85 °C	-40 C	Crystal	CML	XO (Standard)	6-SMD No Lead	0.039 in	1 mm	2.5 mm	0.098 in	3.2 mm	0.126 "	Surface Mount
Skyworks Solutions Inc. 540BAA333M330BCG		Enable/Disable			20 ppm	111 mA	333.33 MHz	85 °C	-40 C	Crystal	LVDS	XO (Standard)	6-SMD No Lead	0.052 in	1.33 mm		0.126 in	5 mm	0.197 in	Surface Mount	3.2 mm	1.8 V 2.5 V 3.3 V
Skyworks Solutions Inc. 540DAA100M000BCG		Enable/Disable			20 ppm	111 mA	100 MHz	85 °C	-40 C	Crystal	CML	XO (Standard)	6-SMD No Lead	0.052 in	1.33 mm		0.126 in	5 mm	0.197 in	Surface Mount	3.2 mm	1.8 V 2.5 V 3.3 V
Skyworks Solutions Inc. 540AAA164M425CCG		Enable/Disable			20 ppm	145 mA	164.425 MHz	85 °C	-40 C	Crystal	LVPECL	XO (Standard)	6-SMD No Lead	0.039 in	1 mm	2.5 mm	0.098 in	3.2 mm	0.126 "	Surface Mount		2.5 V 3.3 V
Skyworks Solutions Inc. 540DAB156M250CCGR		Enable/Disable			20 ppm	111 mA	156.25 MHz	85 °C	-40 C	Crystal	CML	XO (Standard)	6-SMD No Lead	0.039 in	1 mm	2.5 mm	0.098 in	3.2 mm	0.126 "	Surface Mount		1.8 V 2.5 V 3.3 V
Skyworks Solutions Inc. 540BAA164M425CCGR	100 mA	Enable/Disable			20 ppm	111 mA	164.425 MHz	85 °C	-40 C	Crystal	LVDS	XO (Standard)	6-SMD No Lead	0.039 in	1 mm	2.5 mm	0.098 in	3.2 mm	0.126 "	Surface Mount		1.8 V 2.5 V 3.3 V
Skyworks Solutions Inc. 540BBA125M000CCG	100 mA	Enable/Disable			10 ppm	111 mA	125 MHz	85 °C	-40 C	Crystal	LVDS	XO (Standard)	6-SMD No Lead	0.039 in	1 mm	2.5 mm	0.098 in	3.2 mm	0.126 "	Surface Mount		1.8 V 2.5 V 3.3 V
Skyworks Solutions Inc. 540EAA100M000CCG		Enable/Disable			20 ppm	125 mA	100 MHz	85 °C	-40 C	Crystal	HCSL	XO (Standard)	6-SMD No Lead	0.039 in	1 mm	2.5 mm	0.098 in	3.2 mm	0.126 "	Surface Mount		1.8 V 2.5 V 3.3 V
Skyworks Solutions Inc. 540ECB100M000CCGR		Enable/Disable			7 ppm	125 mA	100 MHz	85 °C	-40 C	Crystal	HCSL	XO (Standard)	6-SMD No Lead	0.039 in	1 mm	2.5 mm	0.098 in	3.2 mm	0.126 "	Surface Mount		1.8 V 2.5 V 3.3 V
Skyworks Solutions Inc. 540CAC50M0000BCGR		Enable/Disable	3.3 V	1.8 V	20 ppm	108 mA	50 MHz	85 °C	-40 C	Crystal	CMOS	XO (Standard)	6-SMD No Lead	0.052 in	1.33 mm		0.126 in	5 mm	0.197 in	Surface Mount	3.2 mm
