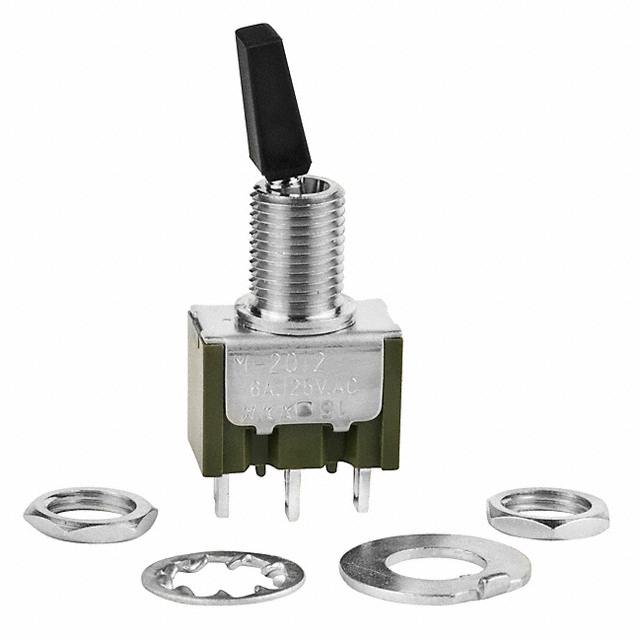

M2012K1 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE SPDT 6A 125V
| Part | Actuator Material | Electrical Life | Voltage Rating - DC | Mounting Type | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Current Rating (Amps) | Features | Circuit | Illumination | Actuator Type | Panel Cutout Dimensions [diameter] | Bushing Thread | Actuator Length [x] | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | Polyamide (PA) Nylon | 25000 Steps | 30 V | Panel Mount | 125 V | 85 °C | -30 ░C | Solder Lug | 4 A 6 A | Black Cap | SPDT | Non-Illuminated | Snap On Paddle | 6.5 mm | 1/4-40 | 9.4 mm | On-On |
 NKK Switches | Polyamide (PA) Nylon | 25000 Steps | 30 V | Panel Mount | 125 V | 85 °C | -30 ░C | Solder Lug | 4 A 6 A | Blue Cap | SPDT | Non-Illuminated | Snap On Paddle | 6.5 mm | 1/4-40 | 9.4 mm | On-On |
