UTG62 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN PLG HSG FMALE 11POS INLINE

Part	Orientation	Features	Shell Finish	Mounting Type	Connector Type	Contact Size	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Note	Housing Color	Material Flammability Rating	Shell Size - Insert Length	Shell Size - Insert Width	Fastening Type	Type	Shell Material	Shielding	Insert Material	Contact Shape	Contact Type	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Position Types	Shell Size - Insert	Shell Size - Insert	Color	Accessory Type	Material	For Use With/Related Products
Amphenol Aerospace Operations UTG62411SN	N (Normal)	Coupling Nut	Nickel	Free Hanging (In-Line)	Plug Housing	8 16	125 °C	-55 °C	11	Contacts Not Included	Silver	UL94 V-0	24 mm	11 mm	Bayonet Lock	For Female Sockets	Brass	Unshielded	Glass Filled Thermoplastic	Circular	Crimp

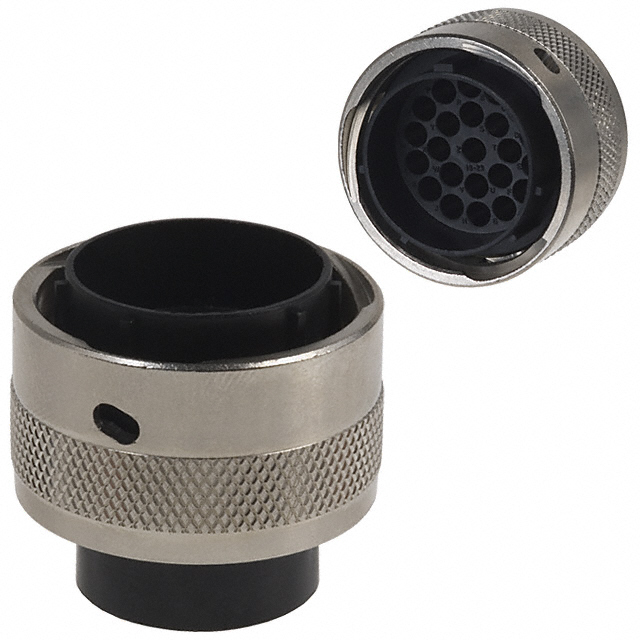

Amphenol Aerospace Operations UTG620-28PN	N (Normal)	Coupling Nut	Nickel	Free Hanging (In-Line)	Plug Housing	16 S	125 °C	-55 °C	28	Contacts Not Included	Silver	UL94 V-0			Bayonet Lock	For Male Pins	Brass	Unshielded	Glass Filled Thermoplastic	Circular	Crimp	28	20
Amphenol Aerospace Operations UTG6247PN	N (Normal)	Coupling Nut	Nickel	Free Hanging (In-Line)	Plug Housing	8 16	125 °C	-55 °C	9	Contacts Not Included	Silver	UL94 V-0	24 mm	7 mm	Bayonet Lock	For Male Pins	Brass	Unshielded	Glass Filled Thermoplastic	Circular	Crimp			PE

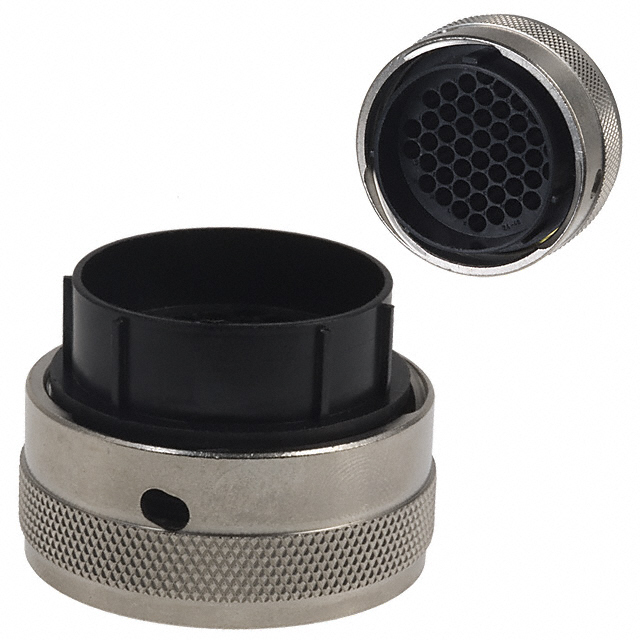

Amphenol Aerospace Operations UTG624-48PN	N (Normal)	Coupling Nut	Nickel	Free Hanging (In-Line)	Plug Housing	16 S	125 °C	-55 °C	48	Contacts Not Included	Silver	UL94 V-0			Bayonet Lock	For Male Pins	Brass	Unshielded	Glass Filled Thermoplastic	Circular	Crimp	48	24

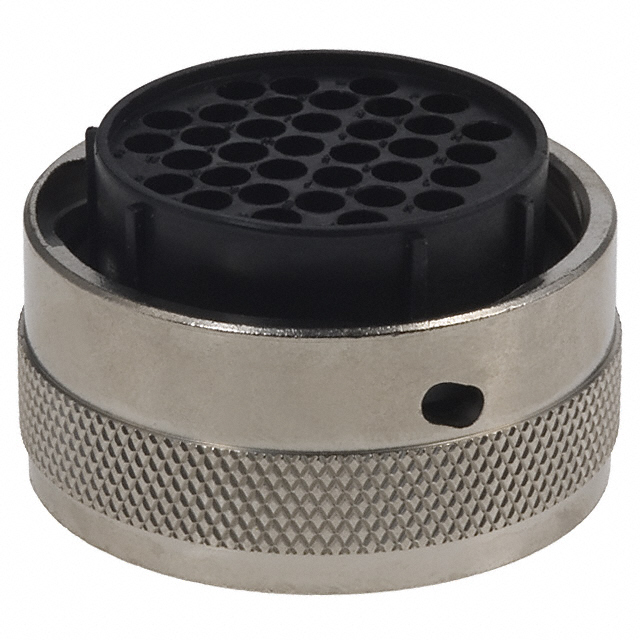

Amphenol Aerospace Operations UTG622-35SN	N (Normal)	Coupling Nut	Nickel	Free Hanging (In-Line)	Plug Housing	16 S	125 °C	-55 °C	35	Contacts Not Included	Silver	UL94 V-0			Bayonet Lock	For Female Sockets	Brass	Unshielded	Glass Filled Thermoplastic	Circular	Crimp	35	22
Amphenol Aerospace Operations UTG622DCG		Dust Tight Metal Chain Waterproof																							22	22	Black	Cap (Cover) Dust	Plastic	Trim Trio® UTG UTO UTOW UTP Plugs

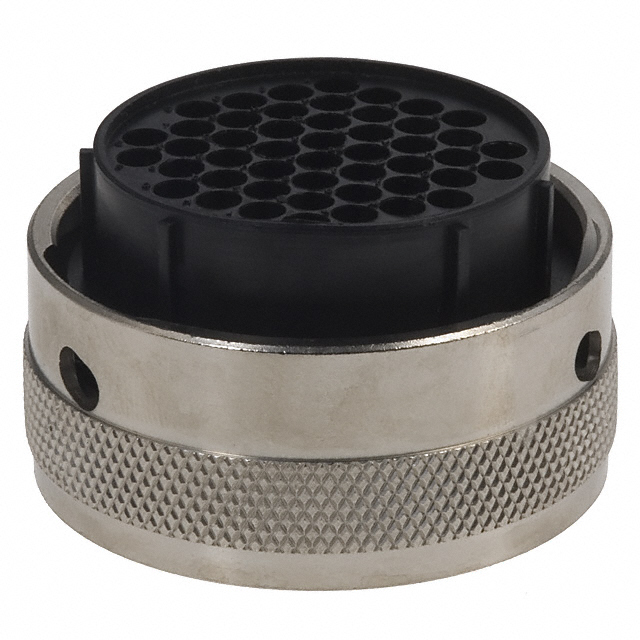

Amphenol Aerospace Operations UTG62448SN	N (Normal)	Coupling Nut	Nickel	Free Hanging (In-Line)	Plug Housing	16 S	125 °C	-55 °C	48	Contacts Not Included	Silver	UL94 V-0			Bayonet Lock	For Female Sockets	Brass	Unshielded	Glass Filled Thermoplastic	Circular	Crimp	48	24

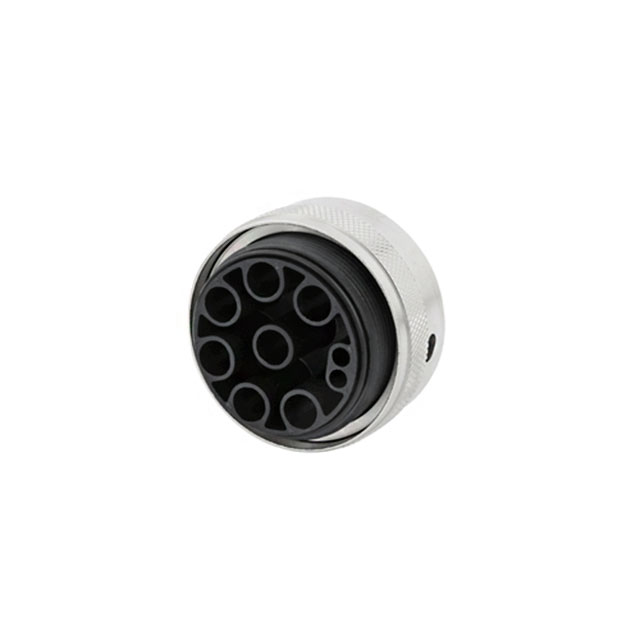

Amphenol Aerospace Operations UTG6247SN	N (Normal)	Coupling Nut	Nickel	Free Hanging (In-Line)	Plug Housing	8 16	125 °C	-55 °C	9	Contacts Not Included	Silver	UL94 V-0	24 mm	7 mm	Bayonet Lock	For Female Sockets	Brass	Unshielded	Glass Filled Thermoplastic	Circular	Crimp			PE

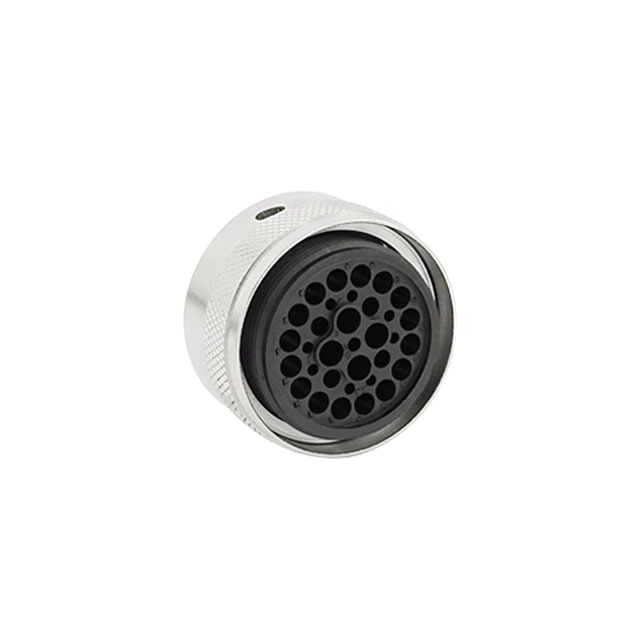

Amphenol Aerospace Operations UTG62020SN	N (Normal)	Coupling Nut	Nickel	Free Hanging (In-Line)	Plug Housing	16 S	125 °C	-55 °C	20	Contacts Not Included	Silver	UL94 V-0			Bayonet Lock	For Female Sockets	Brass	Unshielded	Glass Filled Thermoplastic	Circular	Crimp	20	20	PE
Amphenol Aerospace Operations UTG622-35PN	N (Normal)	Coupling Nut	Nickel	Free Hanging (In-Line)	Plug Housing	16 S	125 °C	-55 °C	35	Contacts Not Included	Silver	UL94 V-0			Bayonet Lock	For Male Pins	Brass	Unshielded	Glass Filled Thermoplastic	Circular	Crimp	35	22
