SSRH7HS Series

Manufacturer: KEMET

Catalog

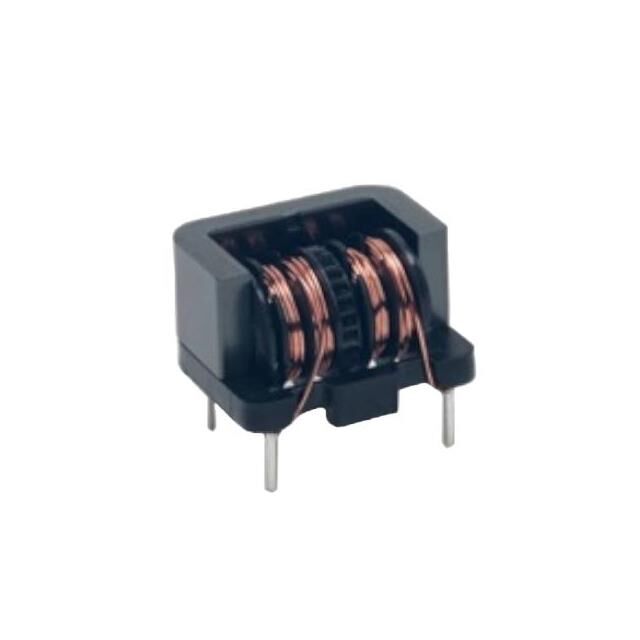

COMMON MODE CHOKE, 1.3MH, 2A, TH

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Lines	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [z]	Height (Max) [z]	DC Resistance (DCR) (Max) [Max]	Package / Case	Inductance @ Frequency	Voltage Rating - AC	Current Rating (Max) [Max]
KEMET SSRH7HS-M20013	120 °C	-25 °C	Through Hole	2	0.571 "	18 mm	14.5 mm	0.709 in	12 mm	0.472 in	80 mOhm	Vertical 4 PC Pin	1.3 mH 10 kHz	250 V	2 A
KEMET SSRH7HS-M06185	120 °C	-25 °C	Through Hole	2	0.571 "	18 mm	14.5 mm	0.709 in	12 mm	0.472 in	690 mOhm	Vertical 4 PC Pin	10 kHz 18.5 mH	250 V	600 mA
KEMET SSRH7HS-M15036	120 °C	-25 °C	Through Hole	2	0.571 "	18 mm	14.5 mm	0.709 in	12 mm	0.472 in	130 mOhm	Vertical 4 PC Pin	3.6 mH	250 V	1.5 A
KEMET SSRH7HS-M11064	120 °C	-25 °C	Through Hole	2	0.571 "	18 mm	14.5 mm	0.709 in	12 mm	0.472 in	240 mOhm	Vertical 4 PC Pin	6.4 mH	250 V	1.1 A
