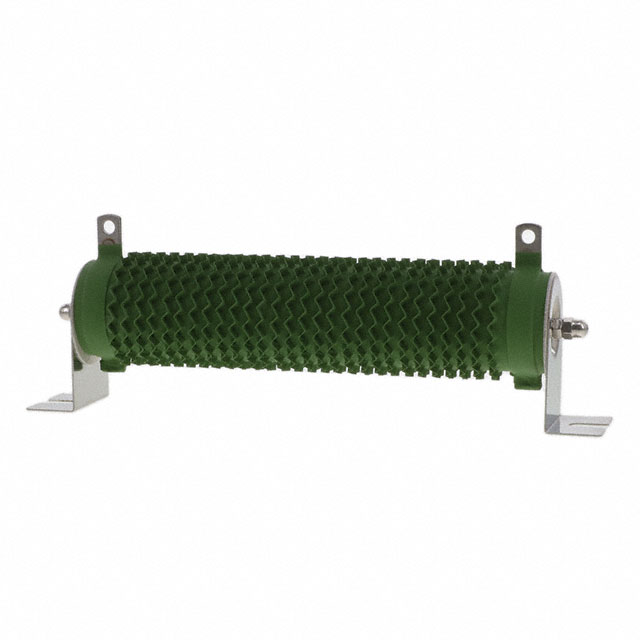

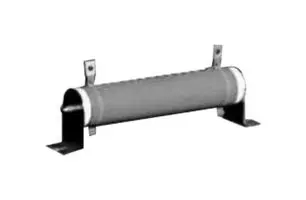

CGS TE Series
Manufacturer: TE Connectivity AMP Connectors
Catalog
RES CHAS MNT 1 OHM 5% 300W
...
| Part | Package / Case | Composition | Resistance | Tolerance | Coating, Housing Type | Lead Style | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Mounting Feature | Temperature Coefficient | Features | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Size / Dimension [z] | Size / Dimension [z] | Height - Seated (Max) [z] | Height - Seated (Max) [z] | Temperature Coefficient |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Radial Tubular | Wirewound | 1 Ohms | 5 % | Silicone Coated | Solder Lugs | 1.575 in | 40 mm | 11.102 in | 282 mm | Brackets | 440 ppm/°C | Flame Proof Safety | 155 C | -55 C | 300 W | |||||
 TE Connectivity AMP Connectors | Radial Tubular | Wirewound | 1.5 Ohms | 5 % | Silicone Coated | Solder Lugs | 1.575 in | 40 mm | 7.677 in | 195 mm | Brackets | 440 ppm/°C | Flame Proof Safety | 155 C | -55 C | 200 Watts | |||||
 TE Connectivity AMP Connectors | Radial Tubular | Wirewound | 1.8 Ohms | 5 % | Silicone Coated | Solder Lugs | 1.102 in | 28 mm | Brackets | 440 ppm/°C | Flame Proof Safety | 155 C | -55 C | 50 W | 102 mm | 4.016 in | |||||
 TE Connectivity AMP Connectors | Radial Tubular | Wirewound | 680 Ohms | 5 % | Silicone Coated | Solder Lugs | 1.102 in | 28 mm | Brackets | 440 ppm/°C | Flame Proof Safety | 155 C | -55 C | 60 W | 102 mm | 4.016 in | |||||
TE Connectivity AMP Connectors | Radial Tubular | Wirewound | 1500 Ohms | 5 % | Silicone Coated | Solder Lugs | 1.102 in | 28 mm | 7.165 in | 182 mm | Brackets | 440 ppm/°C | Flame Proof Safety | 155 C | -55 C | 100 W | |||||
 TE Connectivity AMP Connectors | Radial Tubular | Wirewound | 18 Ohms | 5 % | Silicone Coated | Solder Lugs | 1.102 in | 28 mm | 7.165 in | 182 mm | Brackets | 440 ppm/°C | Flame Proof Safety | 155 C | -55 C | 120 W | |||||
 TE Connectivity AMP Connectors | Radial Tubular | Wirewound | 47 Ohms | 5 % | Silicone Coated | Solder Lugs | 2.362 in | 60 mm | 23.622 " | 600 mm | Brackets | 440 ppm/°C | Flame Proof Safety | 155 C | -55 C | 2500 W | |||||
 TE Connectivity AMP Connectors | Radial Tubular | Wirewound | 180 Ohms | 5 % | Silicone Coated | Solder Lugs | 1.575 in | 40 mm | 7.677 in | 195 mm | Brackets | 440 ppm/°C | Flame Proof Safety | 155 C | -55 C | 200 Watts | |||||
TE Connectivity AMP Connectors | Radial Tubular | Wirewound | 27 Ohms | 5 % | Silicone Coated | Solder Lugs | 1.575 in | 40 mm | 11.102 in | 282 mm | Brackets | 440 ppm/°C | Flame Proof Safety | 155 C | -55 C | 400 W | |||||
 TE Connectivity AMP Connectors | Radial Tubular | Wirewound | 470 mOhms | 5 % | Solder Lugs | 1.102 in | 28 mm | Brackets | Flame Proof Safety | 155 C | -55 C | 50 W | 102 mm | 4.016 in | 64 mm | 2.52 in | ±400ppm/°C |
