DS13-10 Series

Catalog

SSR RELAY 2A 0-18V

Part	Voltage - Input [Max]	Voltage - Input [Min]	On-State Resistance (Max) [Max]	Termination Style	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Supplier Device Package	Package / Case	Package / Case	Package / Case	Package / Case	Load Current	Voltage - Load [Max]

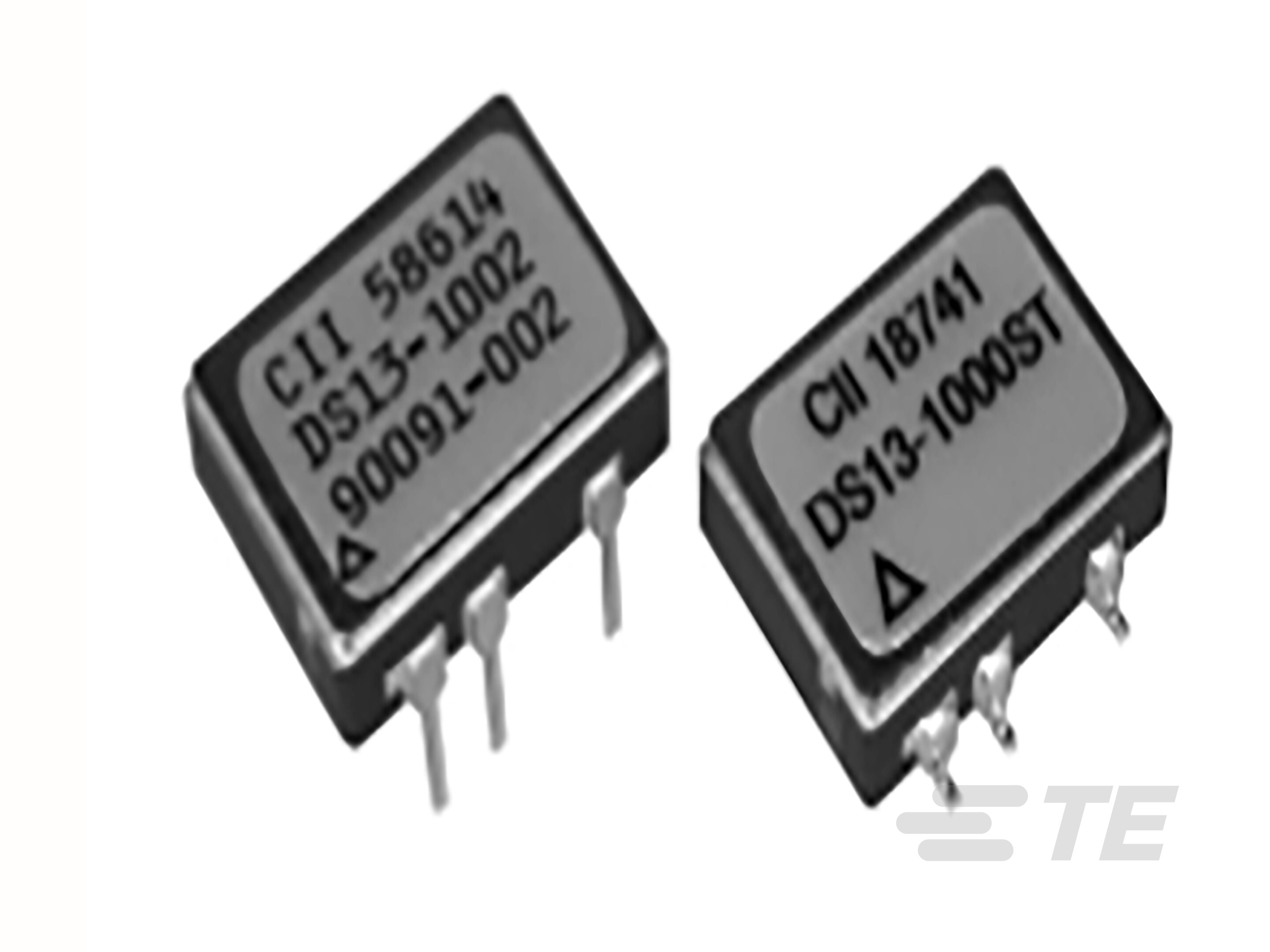

TE Connectivity AMP Connectors DS13-1000	32 VDC	3.8 V	450 mOhm	PC Pin	Through Hole	-55 C	105 ░C	DC	6-DIP	8-DIP	10.16 mm	6 PC Pad	10.16 mm	2 A	18 V
TE Connectivity AMP Connectors DS13-1000S	32 VDC	3.8 V	450 mOhm	PC Pin	Through Hole	-55 C	105 ░C	DC	6-DIP	8-DIP	10.16 mm	6 PC Pad	10.16 mm	2 A	18 V
TE Connectivity AMP Connectors DS13-1001	32 VDC	3.8 V	450 mOhm	PC Pin	Through Hole	-55 C	105 ░C	DC		Module				2 A	18 V
TE Connectivity AMP Connectors DS13-1002	32 VDC	3.8 V	450 mOhm	PC Pin	Through Hole	-55 C	105 ░C	DC	6-DIP	8-DIP	10.16 mm	6 PC Pad	10.16 mm	2 A	18 V
