BLF2425 Series

Catalog

RF MOSFET LDMOS 28V SOT502B

Part	Voltage - Test	Package / Case	Gain	Mounting Type	Power - Output	Frequency	Current - Test	Voltage - Rated	Supplier Device Package	Configuration
Ampleon USA Inc. BLF2425M7LS140,112	28 V	SOT-502B	18.5 dBi	Chassis Mount	140 W	2.45 GHz	1.3 A	65 V	SOT502B

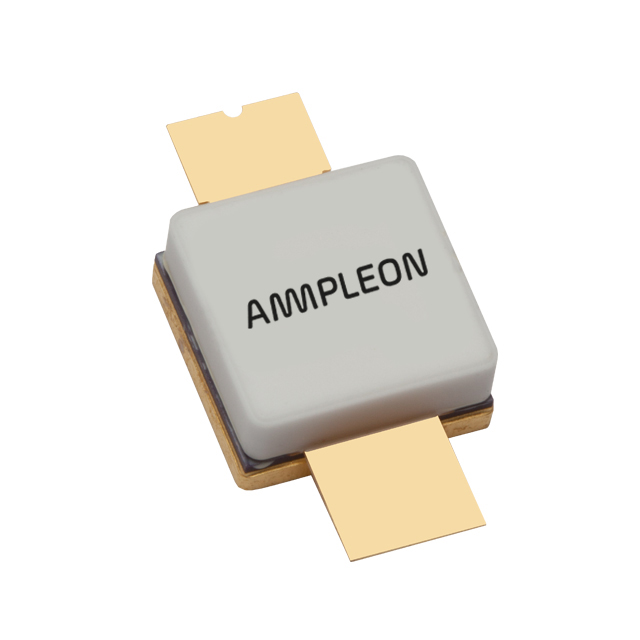

Ampleon USA Inc. BLF2425M9LS30U	32 V	SOT-1135B	18.5 dBi	Chassis Mount	30 W	2.45 GHz	20 mA	65 V	CDFM2
Ampleon USA Inc. BLF2425M6L180P,118	28 V	SOT-539A	13.3 dB	Chassis Mount	180 W	2.45 GHz	10 mA	65 V	SOT539A	Common Source Dual
Ampleon USA Inc. BLF2425M6LS180P,11	28 V	SOT-539B	13.3 dB	Surface Mount	180 W	2.45 GHz	10 mA	65 V	SOT539B	Common Source Dual
Ampleon USA Inc. BLF2425M7L140,112	28 V	SOT-502A	18.5 dBi	Chassis Mount	140 W	2.45 GHz	1.3 A	65 V	SOT502A
Ampleon USA Inc. BLF2425M7L140,118	28 V	SOT-502A	18.5 dBi	Chassis Mount	140 W	2.45 GHz	1.3 A	65 V	SOT502A
Ampleon USA Inc. BLF2425M8LS140J	28 V	SOT-502B	19 dB	Chassis Mount	140 W	2.45 GHz	1.3 A	65 V	SOT502B
Ampleon USA Inc. BLF2425M6LS180P:11	28 V	SOT-539B	13.3 dB	Surface Mount	180 W	2.45 GHz	10 mA	65 V	SOT539B	Common Source Dual
Ampleon USA Inc. BLF2425M7L100J	28 V	SOT-502A	18 dBi	Chassis Mount	20 W		900 mA	65 V	SOT502A
Ampleon USA Inc. BLF2425M9LS30J	32 V	SOT-1135B	18.5 dBi	Chassis Mount	30 W	2.45 GHz	20 mA	65 V	CDFM2
