R19175 Series

Catalog

QN FEMALE - N MALE ADAPTER

Part	Body Material	Center Contact Material	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Adapter Type	Adapter Series	Convert To (Adapter End)	Fastening Type	Mounting Type	Convert From (Adapter End)	Conversion Type	Impedance	Center Contact Plating	Frequency - Max [Max]	Style	Center Gender

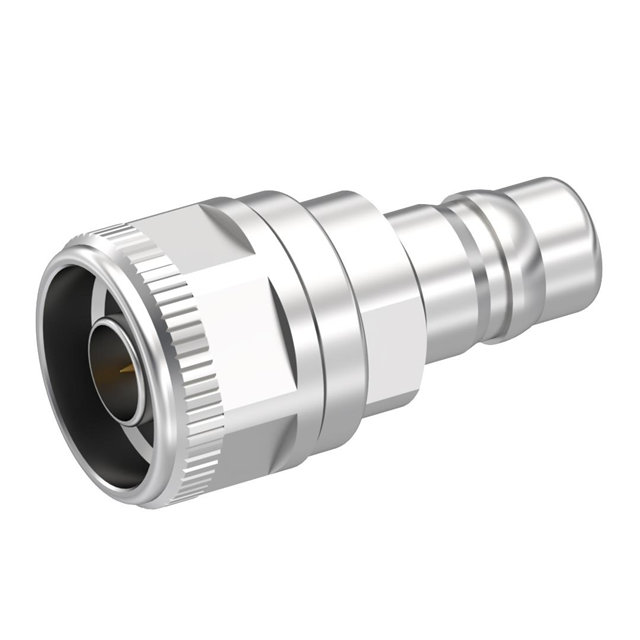

Radiall USA, Inc. R191758000	Brass	Beryllium Copper	White Bronze	-55 C	125 °C	Polytetrafluoroethylene (PTFE)	Plug to Jack	N to QN	QN Jack Female Socket	Snap-On Threaded	Free Hanging (In-Line)	N Plug Male Pin	Between Series	50 Ohms	Silver	6000 MHz	Straight

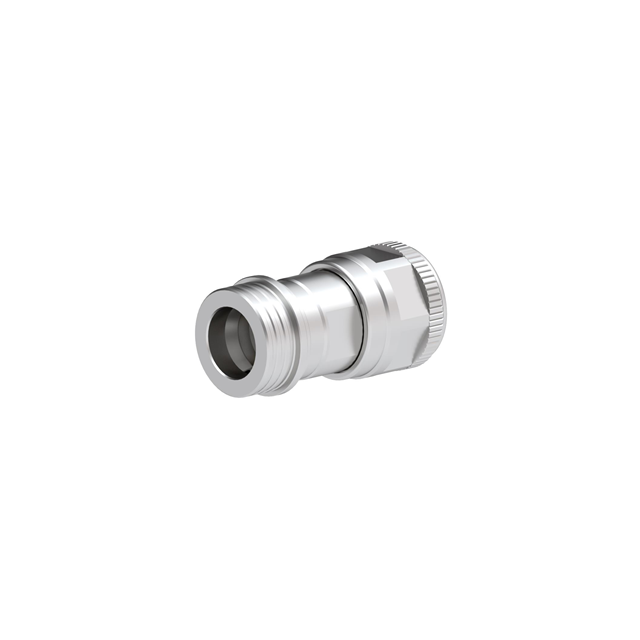

Radiall USA, Inc. R191757000	Brass	Brass	White Bronze	-55 C	125 °C	Polytetrafluoroethylene (PTFE)	Plug to Plug	N to QN	QN Plug Male Pin	Push-Pull Threaded	Free Hanging (In-Line)	N Plug Male Pin	Between Series	50 Ohms	Silver	6000 MHz	Straight	Male to Male
Radiall USA, Inc. R191759000	Brass	Beryllium Copper		-55 C	125 °C	Polytetrafluoroethylene (PTFE)	Plug to Jack	QN to N	N Jack Female Socket		Free Hanging (In-Line)	QN Plug Male Pin	Between Series	50 Ohms	Silver	6000 MHz	Straight
