2N7002 Series
Manufacturer: INFINEON
Beta
⌘K

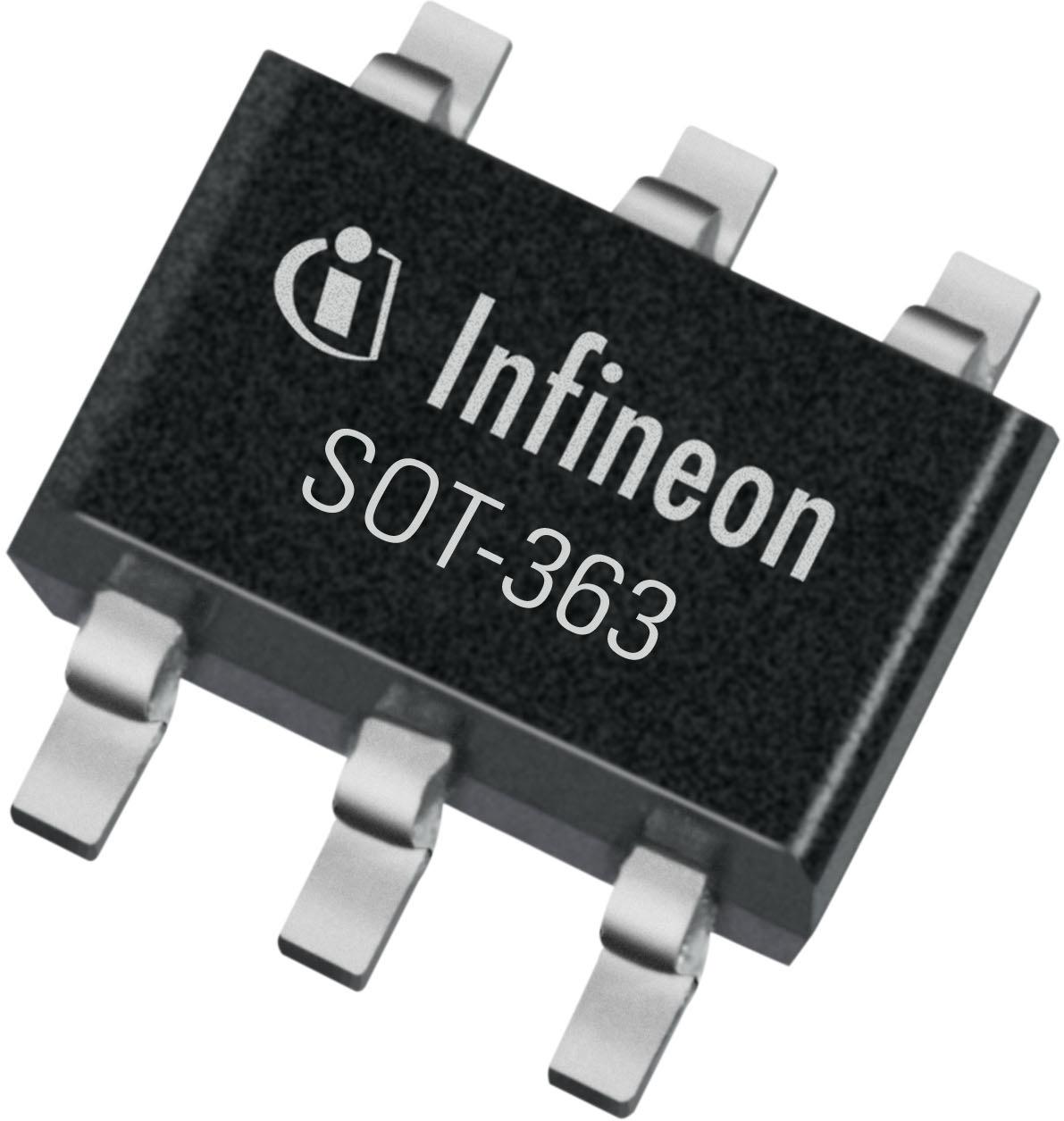

N-CHANNEL SMALL SIGNAL MOSFET 60 V ; SOT-363 DUAL PACKAGE; 3 OHM;
| Part | Rds On (Max) @ Id, Vgs | Gate Charge (Qg) (Max) @ Vgs | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Configuration | Supplier Device Package | Mounting Type | Vgs(th) (Max) @ Id | Input Capacitance (Ciss) (Max) @ Vds [Max] | Technology | FET Feature | Current - Continuous Drain (Id) @ 25°C | Power - Max [Max] | Drain to Source Voltage (Vdss) | Vgs (Max) | FET Type | Drive Voltage (Max Rds On, Min Rds On) | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 3 Ohm | 0.6 nC | 150 °C | -55 °C | 6-VSSOP SC-88 SOT-363 | 2 N-Channel (Dual) | PG-SOT363-PO | Surface Mount | 2.5 V | 20 pF | MOSFET (Metal Oxide) | Logic Level Gate | 300 mA | 500 mW | 60 V | ||||
 INFINEON | 3 Ohm | 0.6 nC | 150 °C | -55 °C | SC-59 SOT-23-3 TO-236-3 | PG-SOT23-PO | Surface Mount | 2.5 V | 20 pF | MOSFET (Metal Oxide) | 300 mA | 60 V | 20 V | N-Channel | 4.5 V 10 V | 500 mW |
