DIN RAIL TERMINAL BLOCKS UKKB 10-PV
| Part | Stripping Length | Material - Insulation | Material Flammability Rating | Current - UL | Number of Positions | Color | Number of Levels | Number of Levels | Voltage - IEC | Terminal - Width [y] | Current - IEC | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Type | Termination Style | Voltage - UL | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

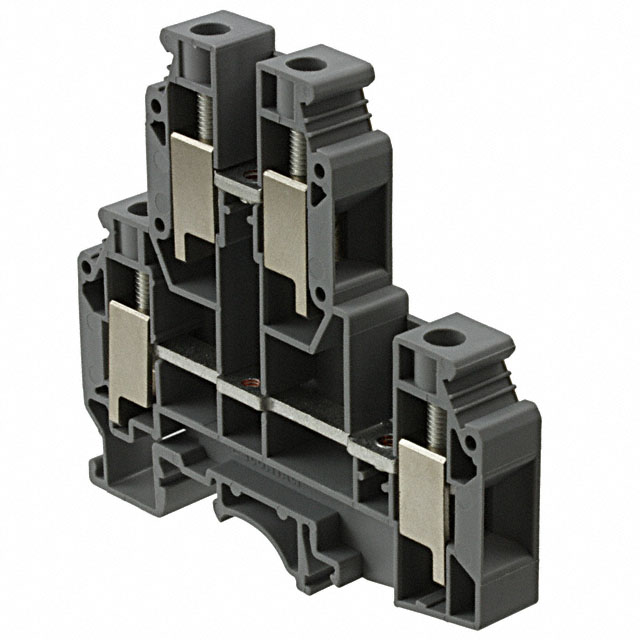

 Phoenix Contact | 11 mm | Nylon Polyamide (PA) | UL94 V-0 | 65 A | 4 | Gray | 2 | Connected | 500 V | 10.2 mm | 57 A | 6 AWG | 24 AWG | Feed Through | Screw | 600 V | 0.5 mm² | 16 mm² | |

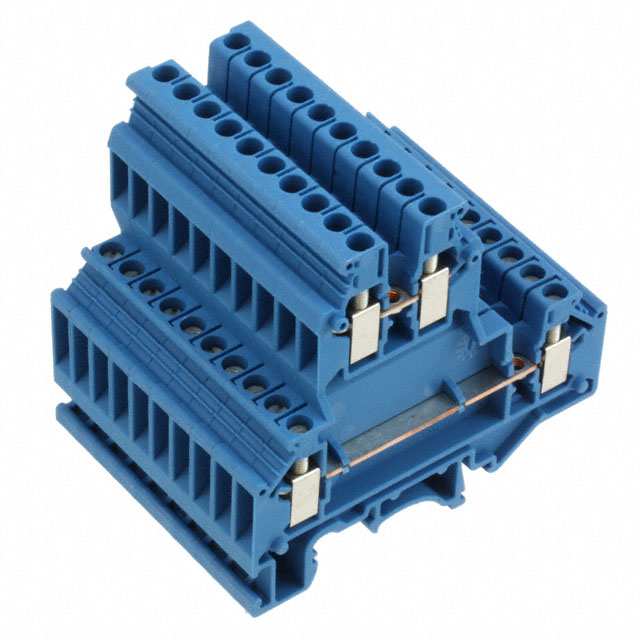

 Phoenix Contact | 8 mm | Nylon Polyamide (PA) | UL94 V-0 | 20 A | 4 | Blue | 2 | 500 V | 5.2 mm | 32 A | 12 AWG | 28 AWG | Feed Through | Screw | 600 V | 0.2 mm² | 4 mm² | ||

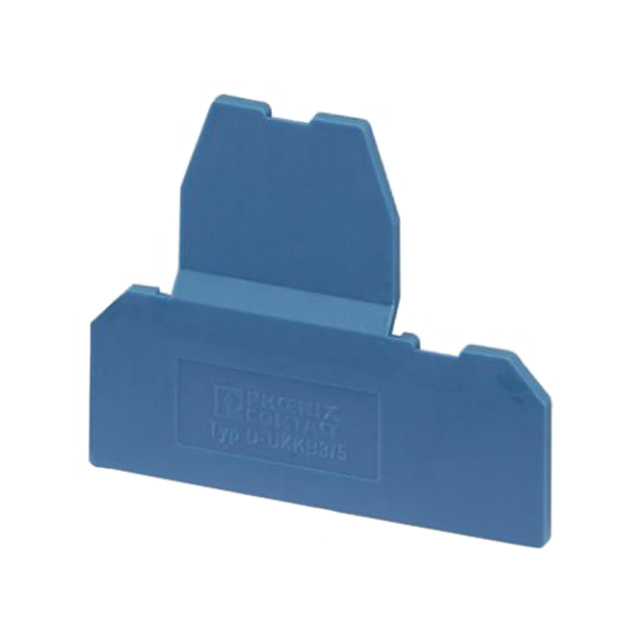

 Phoenix Contact | Blue | End Plate | CLIPLINE UKK Series |
