MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT 250V .056UF X7R 1206 10% TOL

Part	Tolerance	Thickness (Max)	Thickness (Max) [Max] [z]	Capacitance	Voltage - Rated	Temperature Coefficient	Mounting Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Applications	Thickness (Max) [Max]	Thickness (Max) [Max]	Features	Package / Case

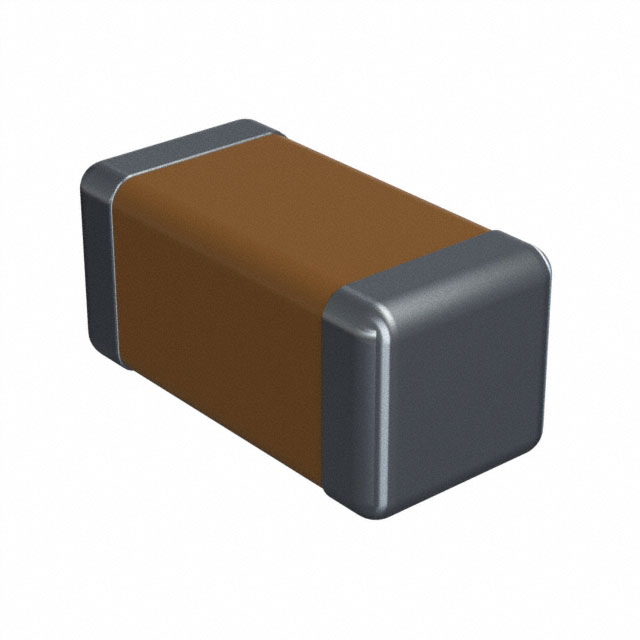

KYOCERA AVX 1206PC563KAT1A	10 %	1.5 mm	0.059 in	56000 pF	250 V	X7R	MLCC Surface Mount	1206 (3216 Metric)	-55 C	125 °C	0.063 "	0.126 "	3.2 mm	1.6 mm	General Purpose

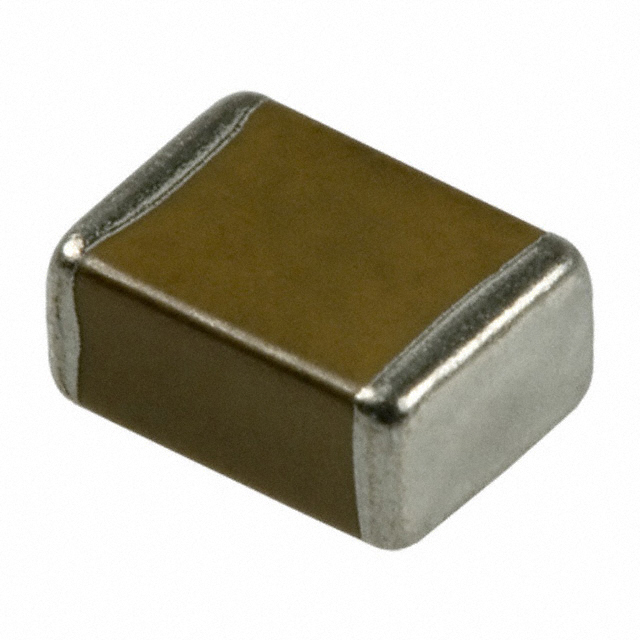

KYOCERA AVX 1812PC184KAT1A	10 %			0.18 µF	250 V	X7R	MLCC Surface Mount	1812 (4532 Metric)	-55 C	125 °C	0.126 in	0.177 in	4.5 mm	3.2 mm	General Purpose	2 mm	0.079 in
KYOCERA AVX 0805PC102JAT2A	5 %			0.001 µF	250 V	X7R	MLCC Surface Mount	0805	-55 C	125 °C			0.079 in 2.01 mm	0.049 " 1.25 mm	General Purpose
KYOCERA AVX 1206PC472KAT2A	10 %			0.0047 µF	250 V	X7R	MLCC Surface Mount	1206 (3216 Metric)	-55 C	125 °C	0.063 "	0.126 "	3.2 mm	1.6 mm	General Purpose	0.94 mm	0.037 in
KYOCERA AVX 0805PC562KAT4A	10 %			0.0056 µF	250 V	X7R	MLCC Surface Mount	0805	-55 C	125 °C			0.079 in 2.01 mm	0.049 " 1.25 mm	General Purpose

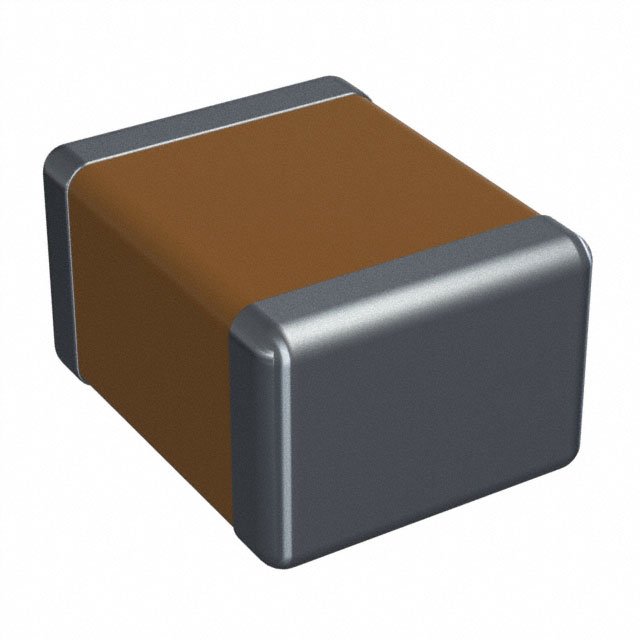

KYOCERA AVX 1210PC104KAZ1A	10 %			100000 pF	250 V	X7R	MLCC Surface Mount	1210	-55 C	125 °C	0.098 in	0.13 "	3.3 mm	2.5 mm	Boardflex Sensitive	1.8 mm	0.071 in	Soft Termination	3225 Metric
KYOCERA AVX 1812PC474KAT1A	10 %			0.47 µF	250 V	X7R	MLCC Surface Mount	1812 (4532 Metric)	-55 C	125 °C	0.126 in	0.177 in	4.5 mm	3.2 mm	General Purpose	2 mm	0.079 in
KYOCERA AVX 1210PC102KAT1A	10 %			0.001 µF	250 V	X7R	MLCC Surface Mount	1210	-55 C	125 °C	0.098 in	0.126 "	3.2 mm	2.5 mm	General Purpose	1.78 mm	0.07 "		3225 Metric
KYOCERA AVX 1210PC473KAT1A	10 %				250 V	X7R	MLCC Surface Mount	1210	-55 C	125 °C	0.098 in	0.126 "	3.2 mm	2.5 mm	General Purpose	1.78 mm	0.07 "		3225 Metric
KYOCERA AVX 1812PC184KAT2A	10 %			0.18 µF	250 V	X7R	MLCC Surface Mount	1812 (4532 Metric)	-55 C	125 °C	0.126 in	0.177 in	4.5 mm	3.2 mm	General Purpose
