EN2C2M Series

Catalog

CIRCULAR CONNECTOR, EN2 SERIES, 2 CONTACTS, THERMOPLASTIC BODY

Part	Number of Positions	Mounting Type	Backshell Material, Plating	Current Rating (Amps)	Orientation	Features	Insert Material	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Color	Termination	Contact Material	Primary Material	Voltage Rating	Applications	Ingress Protection	Shielding	Material Flammability Rating	Fastening Type	Connector Type	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]

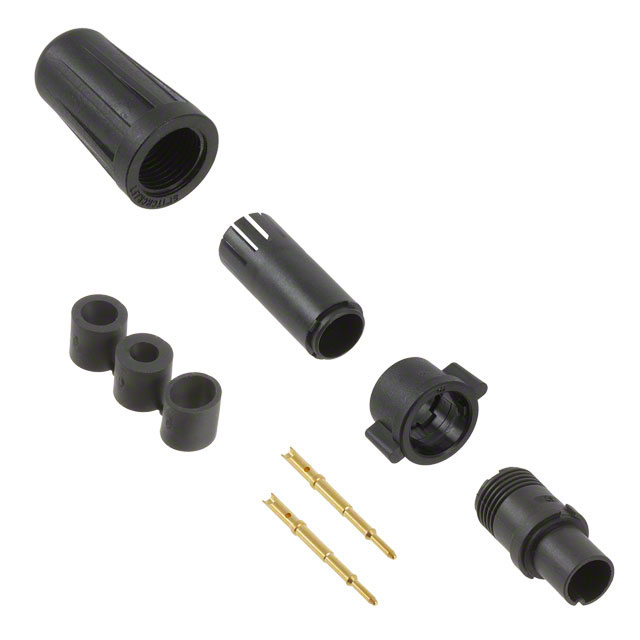

SWITCHCRAFT/CONXALL EN2C2M20DCW	2	Free Hanging (In-Line)	Thermoplastic	3.5 A	Keyed	Backshell Coupling Nut Winged	Elastomer	Gold	85 °C	-40 C	Black	Crimp Solder Cup	Copper Alloy	Plastic	250 VAC	Communication Systems Industrial Marine Medical	IP66 IP67 IP68	Unshielded	UL94 V-0	Bayonet Lock	Plug Male Pins
SWITCHCRAFT/CONXALL EN2C2M20G3W	2	Free Hanging (In-Line)	Thermoplastic	3.5 A	Keyed	Backshell Coupling Nut Winged	Elastomer	Gold	85 °C	-40 C	Black	Crimp Solder Cup	Copper Alloy	Plastic	250 VAC	Communication Systems Industrial Marine Medical	IP66 IP67 IP68	Unshielded	UL94 V-0	Bayonet Lock	Plug Male Pins	0.18 "	5.59 mm	4.57 mm	0.22 in
SWITCHCRAFT/CONXALL EN2C2M20G1W	2	Free Hanging (In-Line)	Thermoplastic	3.5 A	Keyed	Backshell Coupling Nut Winged	Elastomer	Gold	85 °C	-40 C	Black	Crimp Solder Cup	Copper Alloy	Plastic	250 VAC	Communication Systems Industrial Marine Medical	IP66 IP67 IP68	Unshielded	UL94 V-0	Bayonet Lock	Plug Male Pins	0.1 "	3.56 mm	2.54 mm	0.14 in
SWITCHCRAFT/CONXALL EN2C2M20G3	2	Free Hanging (In-Line)	Thermoplastic	3.5 A	Keyed	Backshell Coupling Nut	Elastomer	Gold	85 °C	-40 C	Black	Crimp Solder Cup	Copper Alloy	Plastic	250 VAC	Communication Systems Industrial Marine Medical	IP66 IP67 IP68	Unshielded	UL94 V-0	Bayonet Lock	Plug Male Pins	0.18 "	5.59 mm	4.57 mm	0.22 in
