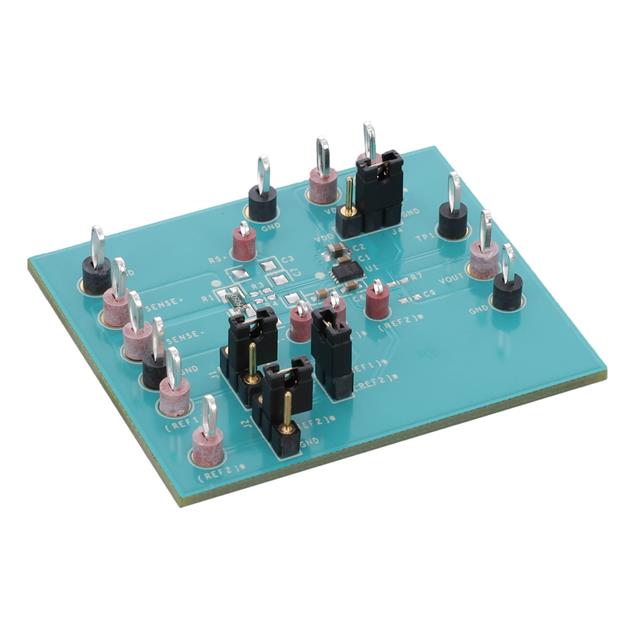

MAX49921 Series

The MAX49921 is high-precision, unidirectional current-sense amplifier (CSA) with an operating input common-mode range from 0 to +70V, though the device is protected against input common-mode voltages down to -42V and up to +80V, thus providing protection against reverse-battery and high-voltage spikes. The MAX49921 is well-suited for current monitoring of inductive loads, such as DC motors and solenoids, where common-mode voltages can become negative due to inductive kickback, reverse-battery conditions, or transient events.The low input offset of ±0.5µV (typ) and low gain error of ± 0.05% (typ) make this device best suited for high-precision current measurements.The MAX49921 operates from a supply voltage of +2.7V to +5.5V with a typical quiescent supply at 0.7mA. This device is specified over the full -40°C to +125°C automotive temperature range and is AEC-Q100 qualified. The MAX49921 is offered in a 2mm x 3mm, 8-pin, side-wettable TDFN package with gain options of 20V/V and 50V/V.ApplicationsAutomotive Current SensingBattery Current MonitoringCurrent Monitoring of Inductive LoadsHigh- and Low-Side Precision Current SensingPrecision High-Voltage Current MonitoringSolenoid Current SensingSupercapacitor Charge/Discharge Monitoring
