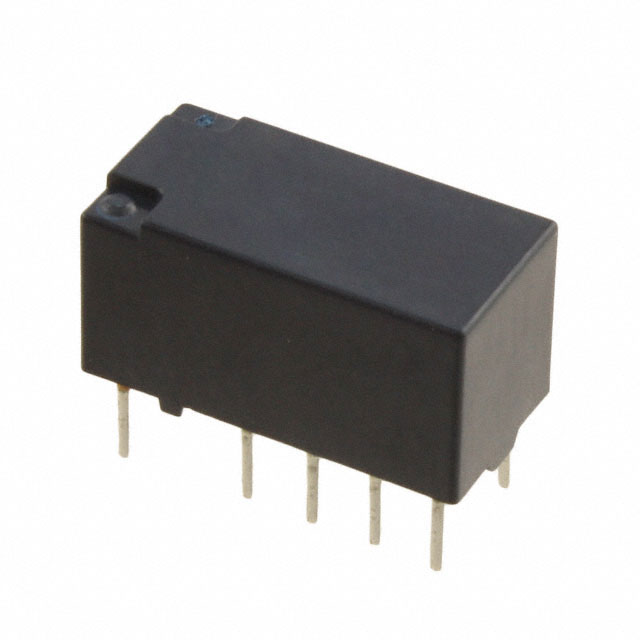

TX2-9V Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
RELAY GENERAL PURPOSE DPDT 2A 9V
| Part | Coil Resistance | Coil Type | Must Release Voltage | Relay Type | Coil Voltage | Contact Form | Switching Voltage [Max] | Seal Rating | Coil Current | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Contact Rating (Current) | Operate Time | Termination Style | Load - Max Switching | Release Time | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 579 Ohms | Non Latching | 0.9 VDC | General Purpose | 9 VDC | DPDT (2 Form C) | 220 VDC 250 VAC | Sealed - Fully | 15.5 mA | Gold (Au) Silver (Ag) | 85 °C | -40 C | 6.75 VDC | 2 A | 4 ms | PC Pin | 440 W 500 VA | 4 ms | Through Hole | BSI cURus |
