CN-B110 Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE TECHNICAL RESOURCES

Part	Standard Number	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Isolation	Number of Outputs	Control Features	Type	Voltage - Input (Max) [Max]	Approval Agency	Features	Voltage - Input (Min) [Min]	Voltage - Output 1	Applications	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Package / Case	Supplier Device Package	Voltage - Output 1 [custom]	Efficiency
TDK Corporation CN50B110-5/CO	50155 62368-1	Through Hole	12.7 mm	58.3 mm	37.2 mm	0.5 in	1.46 "	2.3 in	3000 V	1	Active Low Enable	Isolated Module Conformal Coated	160 V	CE cURus TUV UKCA	Adjustable Output Baseplate Remote On/Off Remote Sense	43 V	5 V	ITE (Commercial)	10 A	-40 C	100 °C	50.4 W	Quarter Brick	Quarter Brick
TDK Corporation CN200B110-13.8/T	62368-1	Through Hole	12.7 mm	61 mm	57.9 mm	0.5 in	2.28 in	2.4 in	3000 V	1	Active Low Enable	Isolated Module	160 V	CE UKCA	Adjustable Output Baseplate Load Sharing Remote On/Off Remote Sense	43 V		ITE (Commercial)	14.5 A	-40 C	100 °C	200 Watts	Half Brick	Half Brick	13.8 V	91 %

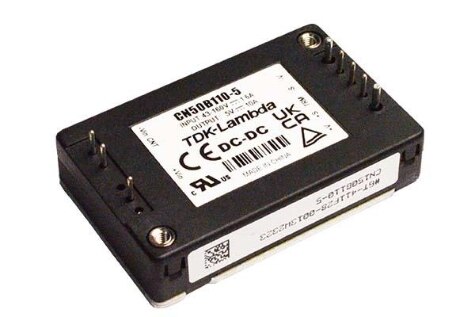

TDK Corporation CN50B110-5	50155 62368-1	Through Hole	12.7 mm	58.3 mm	37.2 mm	0.5 in	1.46 "	2.3 in	3000 V	1	Active Low Enable	Isolated Module	160 V	CE cURus TUV UKCA	Adjustable Output Baseplate Remote On/Off Remote Sense	43 V	5 V	ITE (Commercial)	10 A	-40 C	100 °C	50.4 W	Quarter Brick	Quarter Brick
TDK Corporation CN300B110-24/T	62368-1	Through Hole	12.7 mm	61 mm	57.9 mm	0.5 in	2.28 in	2.4 in	3000 V	1	Active Low Enable	Isolated Module	160 V	CE UKCA	Adjustable Output Baseplate Load Sharing Remote On/Off Remote Sense	43 V	24 V	ITE (Commercial)	12.5 A	-40 C	100 °C	300 W	Half Brick	Half Brick		90 %
