MU18 Series

Catalog

RING TONGUE TERMINAL 18-22AWG ETP COPPER 15.24MM TIN BULK

Part	Width - Outer Edges [x]	Width - Outer Edges [x]	Termination	Insulation	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Contact Finish	Contact Material	Terminal Type	Thickness	Thickness	Features	Tab Width [x]	Tab Width [x]	Gender	Tab Thickness	Tab Thickness	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Termination [x]	Length - Termination [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Width - Outer Edges	Width - Outer Edges	Length - Ring Center to Termination [custom]	Length - Ring Center to Termination [custom]	Length - Overall	Length - Overall
3M Electronic Specialty MU18-4R/SK	6.35 mm	0.25 "	Crimp	Non-Insulated	Free Hanging (In-Line)	22 AWG	17.5 AWG	0.6 in	15.24 mm	4 Stud	Tin	Copper ETP	Circular	0.76 mm	0.03 in
3M Electronic Specialty MU18-187DMK			Crimp	Non-Insulated	Free Hanging (In-Line)	22 AWG	17.5 AWG	0.64 in	16.26 mm		Tin	Copper	Standard			Butted Seam	0.187 in	4.75 mm	Male	0.02 in	0.51 mm

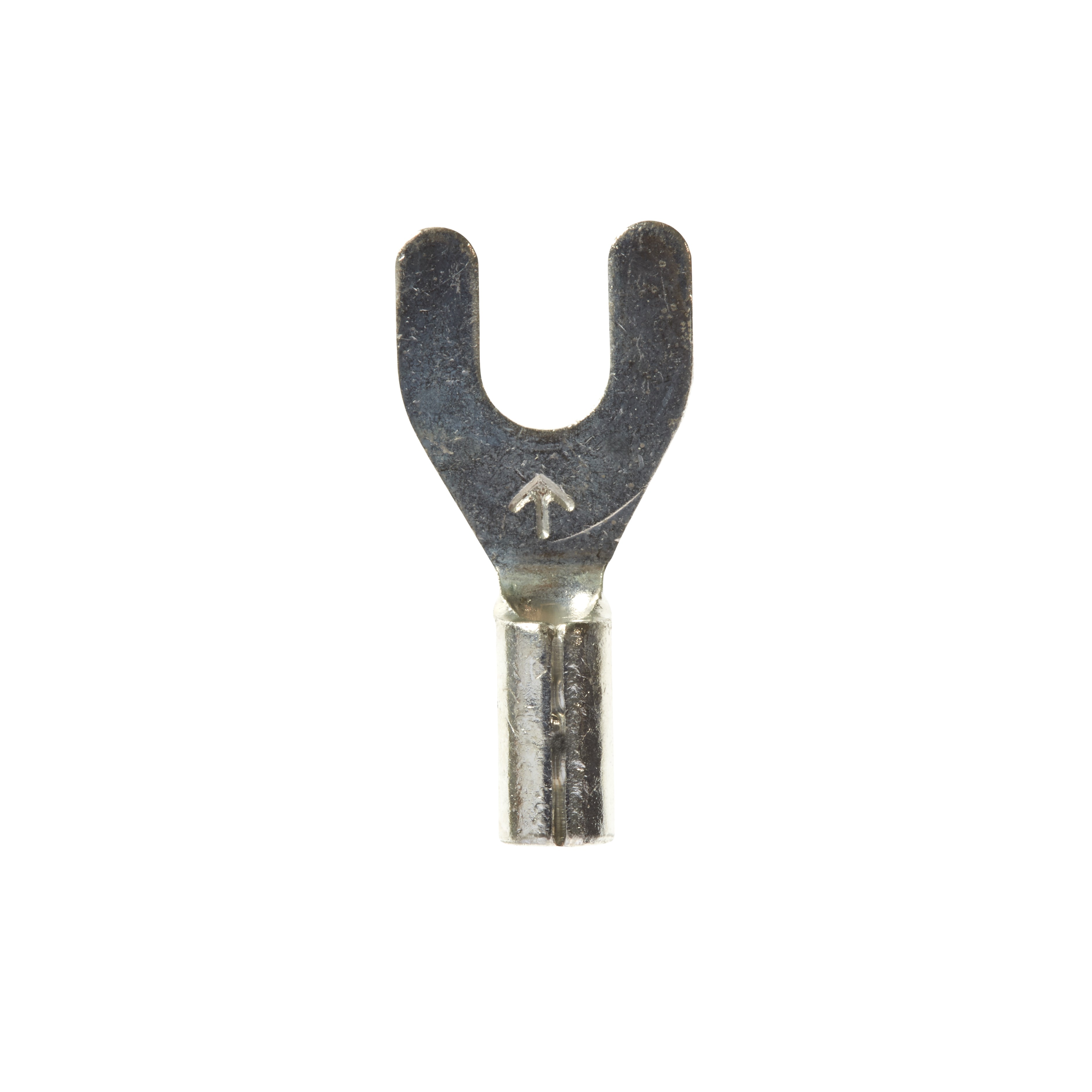

3M Electronic Specialty MU18-6FK			Crimp	Non-Insulated	Free Hanging (In-Line)	22 AWG	17.5 AWG	0.7 in	17.78 mm	6 Stud	Tin	Copper ETP	Standard			Butted Seam						7.37 mm	0.29 in	0.25 in	6.35 mm	0.34 in	8.64 mm

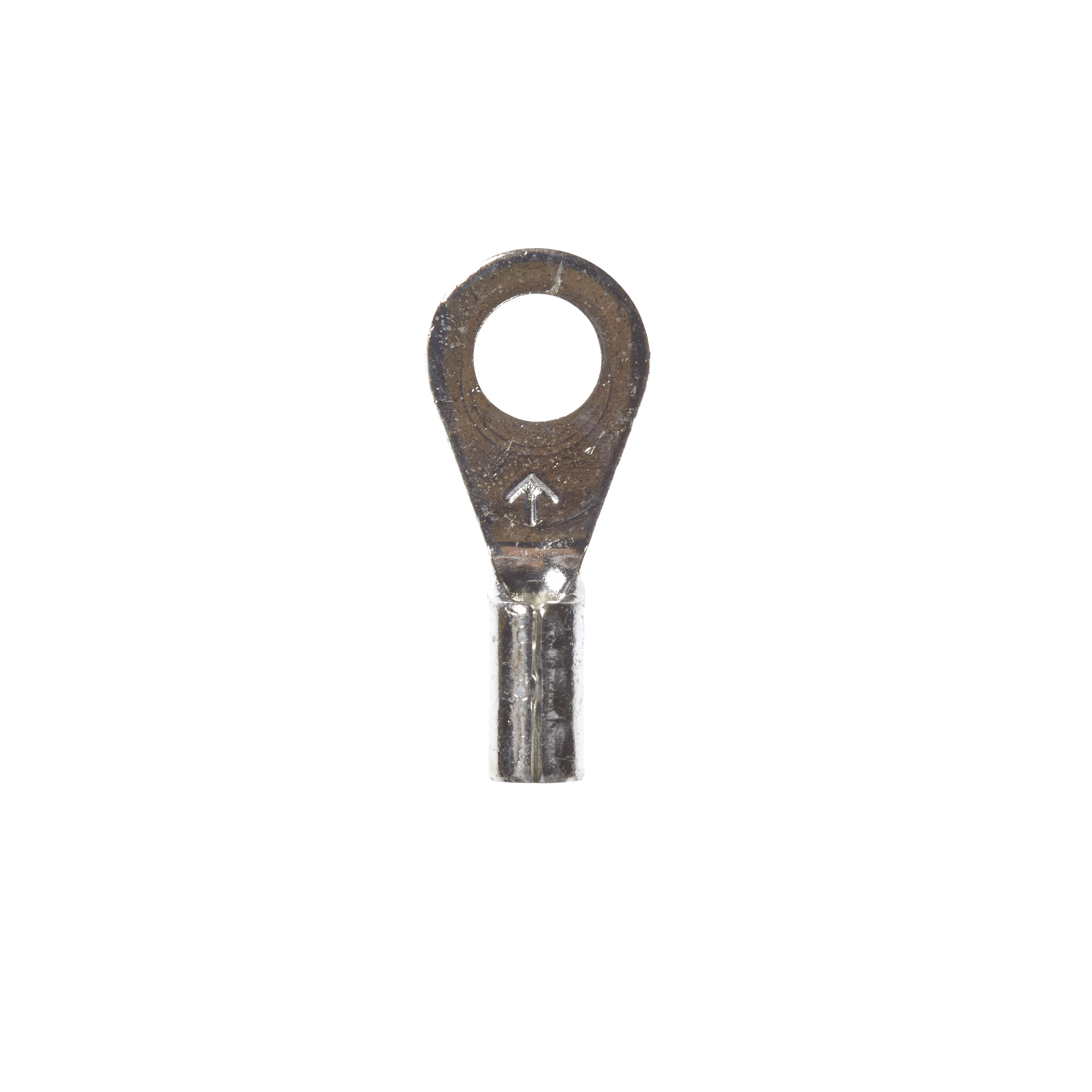

3M Electronic Specialty MU18-8RLX-BOTTLE			Crimp	Non-Insulated	Free Hanging (In-Line)	22 AWG	17.5 AWG	0.74 in	18.8 mm	8 Stud	Tin	Copper ETP	Circular	0.76 mm	0.03 in													7.87 mm	0.31 in
3M Electronic Specialty MU18-250DMK			Crimp	Non-Insulated	Free Hanging (In-Line)	22 AWG	17.5 AWG	0.73 in	18.54 mm		Tin	Copper ETP	Standard			Butted Seam	0.25 in	6.35 mm	Male	0.032 in	0.81 mm

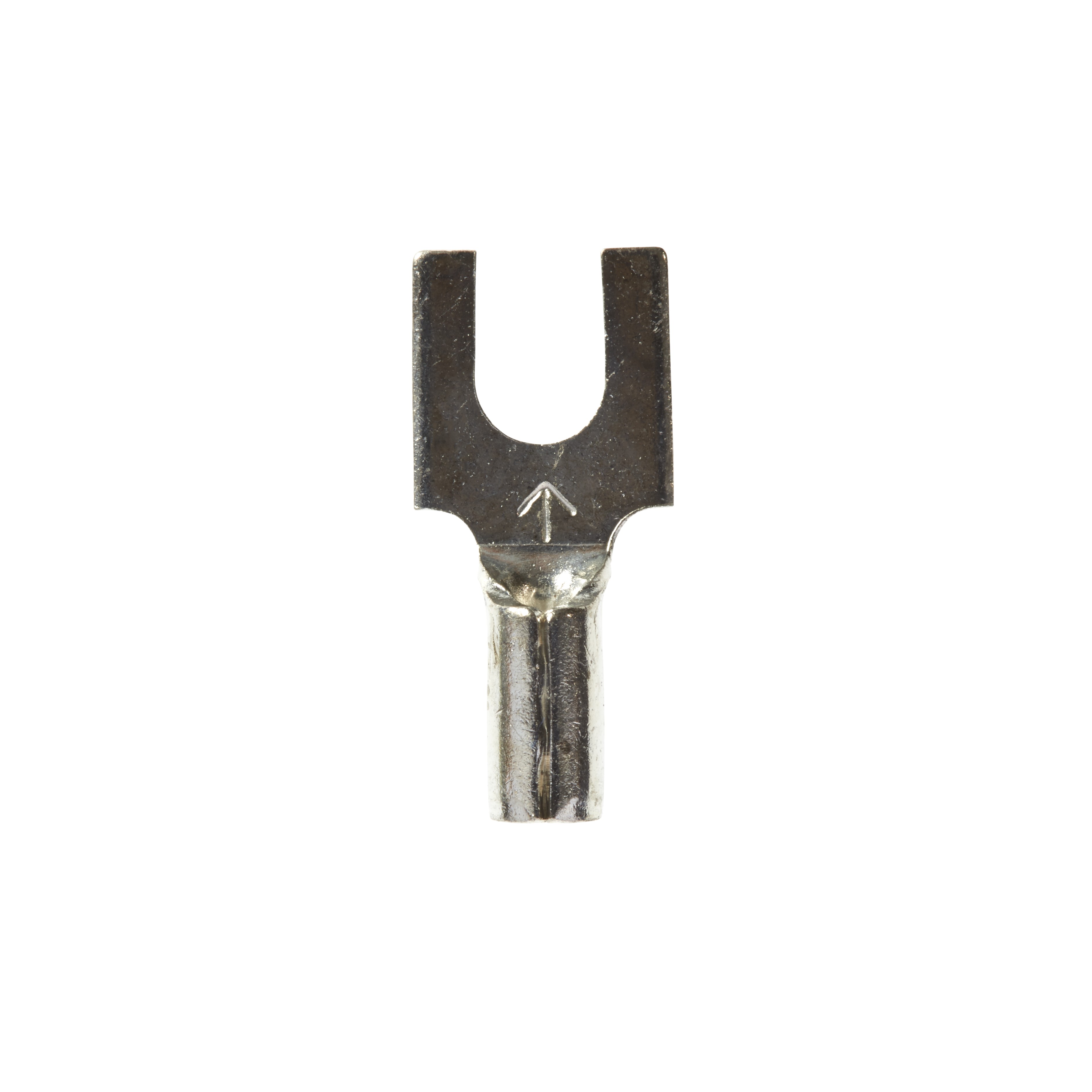

3M Electronic Specialty MU18-6FBK			Crimp	Non-Insulated	Free Hanging (In-Line)	22 AWG	17.5 AWG			6 Stud	Tin	Copper	Standard			Butted Seam								0.25 in	6.35 mm					6.35 mm	0.25 "	0.65 in	16.51 mm
3M Electronic Specialty MU18-6FBHTK			Crimp	Non-Insulated	Free Hanging (In-Line)	22 AWG	17.5 AWG			6 Stud	Nickel	Steel	Standard			Butted Seam								0.25 in	6.35 mm					6.35 mm	0.25 "	0.65 in	16.51 mm

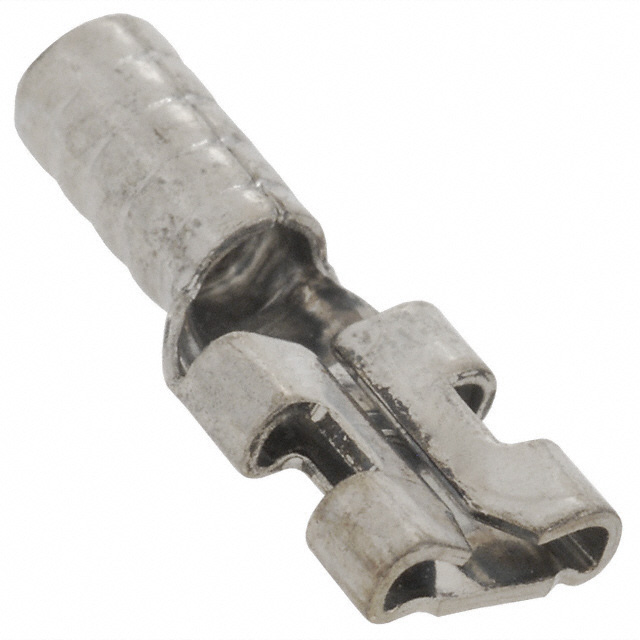

3M Electronic Specialty MU18-187DFK			Crimp	Non-Insulated	Free Hanging (In-Line)	22 AWG	17.5 AWG	0.58 "	14.73 mm		Tin	Brass	Standard			Butted Seam	0.187 in	4.75 mm	Female	0.02 in	0.51 mm
3M Electronic Specialty MU18-10FHTK			Crimp	Non-Insulated	Free Hanging (In-Line)	22 AWG	17.5 AWG	0.7 in	17.78 mm	10 Stud	Nickel	Steel	Standard			Butted Seam						7.37 mm	0.29 in	0.25 in	6.35 mm	0.34 in	8.64 mm
3M Electronic Specialty MU18-250DFK			Crimp	Non-Insulated	Free Hanging (In-Line)	22 AWG	17.5 AWG	0.66 in	16.76 mm		Tin	Brass	Standard			Butted Seam	0.25 in	6.35 mm	Female	0.032 in	0.81 mm
