DAC8165 Series

Catalog

14-BIT, QUAD CHANNEL, ULTRA-LOW GLITCH, VOUT DAC WITH 2.5V, 2PPM/°C INT. REF. AND RESET TO MI

Part	Number of Bits	Reference Type	Number of D/A Converters	Package / Case [x]	Package / Case	Package / Case [y]	Settling Time	Mounting Type	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Data Interface	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	INL/DNL (LSB)	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Supplier Device Package	Architecture	DAC Type	Number of DAC's	Supplied Contents	Utilized IC / Part
Texas Instruments DAC8165IBPWR	14	External Internal	4	0.173 in	16-TSSOP	4.4 mm	10 µs	Surface Mount	5.5 V	2.7 V	DSP SPI	Voltage - Buffered	-40 °C	105 ░C	±1	2.7 V	5.5 V	16-TSSOP	String DAC
Texas Instruments DAC8165ICPWR	14	External Internal	4	0.173 in	16-TSSOP	4.4 mm	10 µs	Surface Mount	5.5 V	2.7 V	DSP SPI	Voltage - Buffered	-40 °C	105 ░C	±1	2.7 V	5.5 V	16-TSSOP	String DAC
Texas Instruments DAC8165IDPW	14	External Internal	4	0.173 in	16-TSSOP	4.4 mm	10 µs	Surface Mount	5.5 V	2.7 V	DSP SPI	Voltage - Buffered	-40 °C	105 ░C	±1	2.7 V	5.5 V	16-TSSOP	String DAC
Texas Instruments DAC8165IDPWR	14	External Internal	4	0.173 in	16-TSSOP	4.4 mm	10 µs	Surface Mount	5.5 V	2.7 V	DSP SPI	Voltage - Buffered	-40 °C	105 ░C	±1	2.7 V	5.5 V	16-TSSOP	String DAC

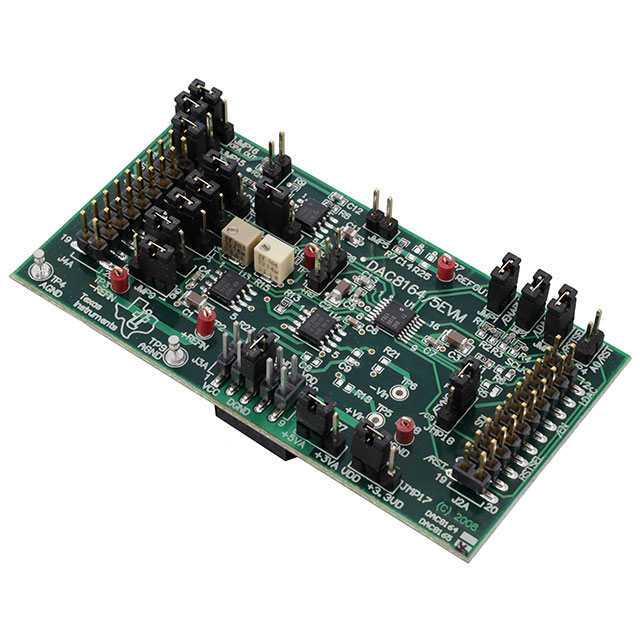

Texas Instruments DAC8165EVM	14						8 µs				Serial									Voltage	4	Board(s)	DAC8165
Texas Instruments DAC8165IAPW	14	External Internal	4	0.173 in	16-TSSOP	4.4 mm	10 µs	Surface Mount	5.5 V	2.7 V	DSP SPI	Voltage - Buffered	-40 °C	105 ░C	±1	2.7 V	5.5 V	16-TSSOP	String DAC
Texas Instruments DAC8165IAPWR	14	External Internal	4	0.173 in	16-TSSOP	4.4 mm	10 µs	Surface Mount	5.5 V	2.7 V	DSP SPI	Voltage - Buffered	-40 °C	105 ░C	±1	2.7 V	5.5 V	16-TSSOP	String DAC
