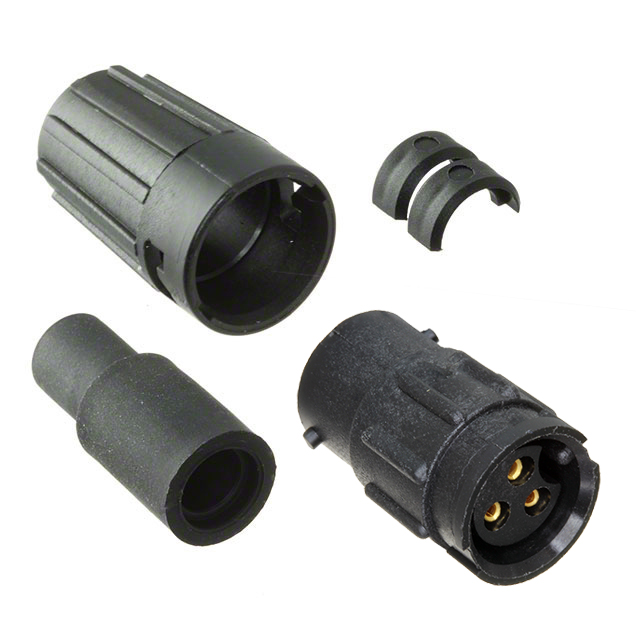

8382-3SG Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K
MINI-CON-X CABLE-TO-CABLE, 3-PIN #16, FEMALE, SOLDER CUP, BULK
| Part | Color | Connector Type | Applications | Contact Material | Mounting Type | Shielding | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Features | Current Rating (Amps) | Ingress Protection | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Fastening Type | Contact Finish - Mating | Primary Material | Voltage Rating | Backshell Material, Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SWITCHCRAFT/CONXALL | Black | Receptacle Female Sockets | Automotive Communication Systems Instrumentation | Brass | Free Hanging (In-Line) | Unshielded | Keyed | 115 °C | -40 C | Backshell | Varies by Wire Gauge | Weathertight | 6.35 mm | 0.22 in | 0.25 in | 5.59 mm | Bayonet Lock | Gold | Plastic | 600 V | Nylon Polyamide (PA) |
 SWITCHCRAFT/CONXALL | Black | Receptacle Female Sockets | Automotive Communication Systems Instrumentation | Brass | Free Hanging (In-Line) | Unshielded | Keyed | 115 °C | -40 C | Backshell | Varies by Wire Gauge | Weathertight | 4.57 mm | 0.16 " | 0.18 " | 4.06 mm | Bayonet Lock | Gold | Plastic | 600 V | Nylon Polyamide (PA) |
 SWITCHCRAFT/CONXALL | Black | Receptacle Female Sockets | Automotive Communication Systems Instrumentation | Brass | Free Hanging (In-Line) | Unshielded | Keyed | 115 °C | -40 C | Backshell | Varies by Wire Gauge | Weathertight | 5.08 mm | 0.18 " | 0.2 " | 4.57 mm | Bayonet Lock | Gold | Plastic | 600 V | Nylon Polyamide (PA) |
SWITCHCRAFT/CONXALL | Black | Receptacle Female Sockets | Automotive Communication Systems Instrumentation | Brass | Free Hanging (In-Line) | Unshielded | Keyed | 115 °C | -40 C | Backshell | Varies by Wire Gauge | Weathertight | 5.84 mm | 0.21 in | 0.23 in | 5.33 mm | Bayonet Lock | Gold | Plastic | 600 V | Nylon Polyamide (PA) |
