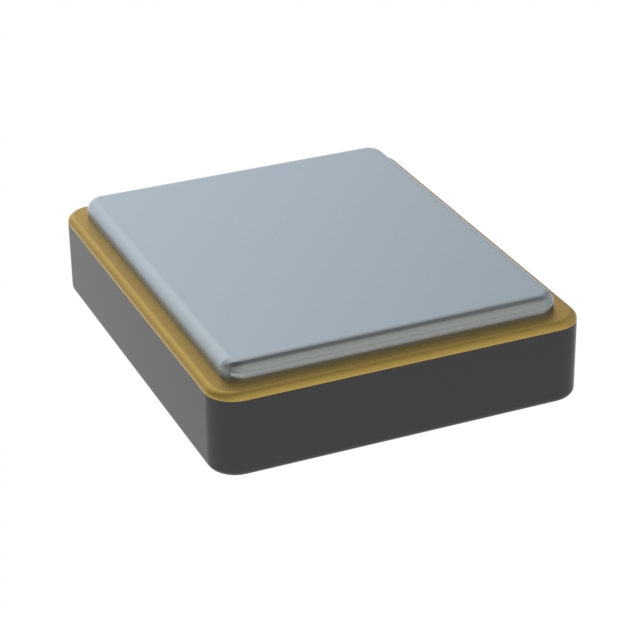

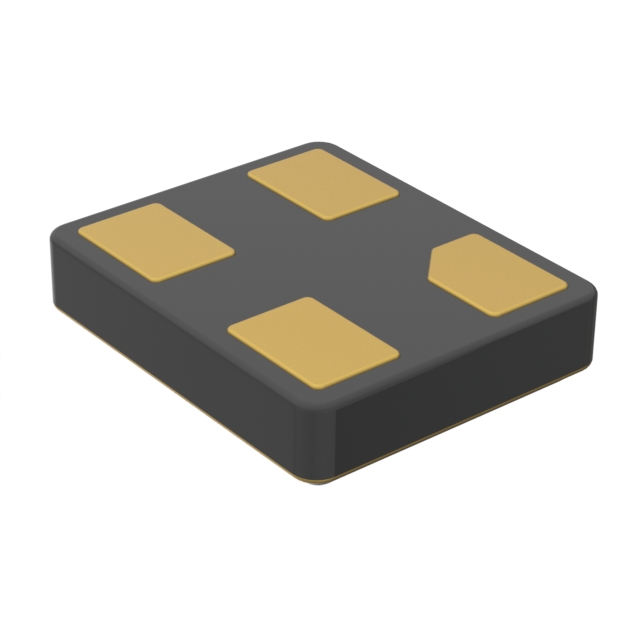

ABM13W Series

Catalog

CRYSTALS XTAL 1210 4-SMD 52MHZ TOL +/-7PPM STAB +/-10PPM -30°C ~ 85°C 7PF 50 OHMS

Part	Operating Temperature [Max]	Operating Temperature [Min]	Load Capacitance	Type	Frequency	Package / Case	Frequency Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Mode	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Frequency Stability	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Mounting Type
Abracon LLC ABM13W-52.0000MHZ-7-NH7U-T5	85 °C	-30 ░C	7 pF	MHz Crystal	52 MHz	4-SMD No Lead	7 ppm	0.047 in	1 mm	0.039 in	1.2 mm	Fundamental	4-SMD	1.2	1	10 ppm	50 Ohms	0.013 "	0.33 mm	Surface Mount
Abracon LLC ABM13W-32.0000MHZ-6-D1G-T5	85 °C	-40 C	6 pF	MHz Crystal	32 MHz	4-SMD No Lead	10 ppm	0.047 in	1 mm	0.039 in	1.2 mm	Fundamental	4-SMD	1.2	1	15 ppm	100 Ohms	0.013 "	0.33 mm	Surface Mount
Abracon LLC ABM13W-32.0000MHZ-8-N1G-T5	85 °C	-30 ░C	8 pF	MHz Crystal	32 MHz	4-SMD No Lead	10 ppm	0.047 in	1 mm	0.039 in	1.2 mm	Fundamental	4-SMD	1.2	1	15 ppm	100 Ohms	0.013 "	0.33 mm	Surface Mount
Abracon LLC ABM13W-32.0000MHZ-5-B1G-T5	70 °C	-20 ░C	5 pF	MHz Crystal	32 MHz	4-SMD No Lead	10 ppm	0.047 in	1 mm	0.039 in	1.2 mm	Fundamental	4-SMD	1.2	1	15 ppm	100 Ohms	0.013 "	0.33 mm	Surface Mount
Abracon LLC ABM13W-76.8000MHZ-5-NH7U-T5	85 °C	-30 ░C	5 pF	MHz Crystal	76.8 MHz	4-SMD No Lead	7 ppm	0.047 in	1 mm	0.039 in	1.2 mm	Fundamental	4-SMD	1.2	1	10 ppm	50 Ohms	0.013 "	0.33 mm	Surface Mount
