FF450R33 Series

Manufacturer: INFINEON

Catalog

IGBT MOD 3300V 450A AGXHP100-3

Part	Configuration	Input	Operating Temperature [Min]	Operating Temperature [Max]	Power - Max [Max]	IGBT Type	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Vce(on) (Max) @ Vge, Ic	Mounting Type	Current - Collector Cutoff (Max) [Max]	Input Capacitance (Cies) @ Vce
INFINEON FF450R33T3E3P4BPMA1	Half Bridge	Standard	-40 C	150 °C	1000000 W	Trench Field Stop	AG-XHP100-3	450 A	3300 V	Module	2.75 V	Chassis Mount	5 mA
INFINEON FF450R33T3E3B5P2BPSA1	2 Independent	Standard	-40 °C	150 °C	1000000 W	Trench Field Stop	AG-XHP100-6	450 A	3300 V	Module	2.75 V	Chassis Mount	5 mA	84 nF

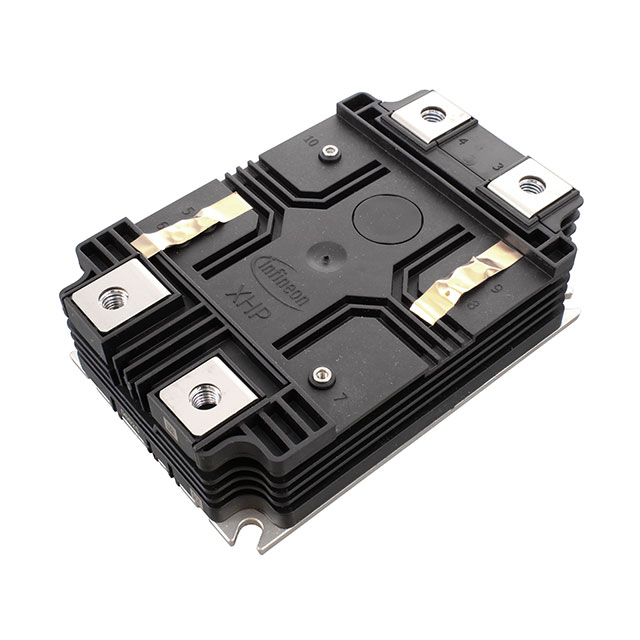

INFINEON FF450R33T3E3B5BPSA1	Half Bridge Inverter	Standard	-40 C	150 °C	1000000 W	Trench Field Stop	AG-XHP100-6	450 A	3300 V	Module	2.75 V	Chassis Mount	5 mA	84 nF
INFINEON FF450R33T3E3BPSA1	Half Bridge	Standard	-40 C	150 °C	1000000 W	Trench Field Stop	AG-XHP100-3	450 A	3300 V	Module	2.75 V	Chassis Mount	5 mA
INFINEON FF450R33T3E3B5P6BPMA1	2 Independent	Standard	-40 °C	150 °C	1000000 W	Trench Field Stop	AG-XHP100-6	450 A	3300 V	Module	2.75 V	Chassis Mount	5 mA	84 nF
INFINEON FF450R33T3E3B5P3BPSA1	2 Independent	Standard	-40 °C	150 °C	1000000 W	Trench Field Stop	AG-XHP100-6	450 A	3300 V	Module	2.75 V	Chassis Mount	5 mA	84 nF
