Power Inductors - SMD 220 NH 10%
Power Inductors - SMD 220 NH 10%
| Part | Package / Case | Mounting Type | Current Rating (Amps) | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Inductance Frequency - Test | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | DC Resistance (DCR) | Inductance | Material - Core | Tolerance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Current - Saturation (Isat) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

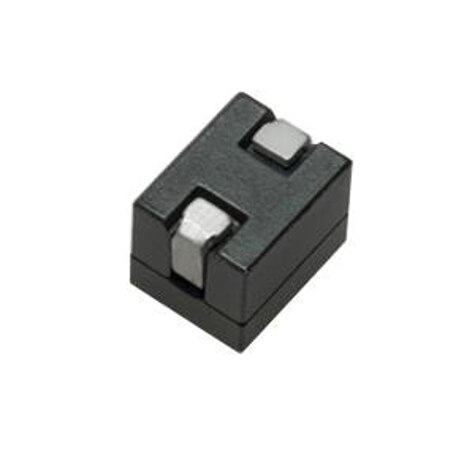

 Eaton - Electronics Division | Nonstandard | Surface Mount | 79 A | Shielded | 125 °C | -40 C | 100 kHz | 0.425 in | 8 mm | 0.315 in | 10.8 mm | 0.17 mOhm | 220 nH | Ferrite | 10 % | 8 mm | 0.315 in | 42 A |
Eaton - Electronics Division | Nonstandard | Surface Mount | 79 A | Shielded | 125 °C | -40 C | 100 kHz | 0.425 in | 8 mm | 0.315 in | 10.8 mm | 0.17 mOhm | 300 nH | Ferrite | 10 % | 8 mm | 0.315 in | 26 A |
